Round-to-Rectangular Tube Adapter STL 3D file ⌀250 mm to 250×150 mm, thickness 3 mm + offset (📦 #2131)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀250 mm to 250×150 mm, thickness 3 mm + offset
File in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀250 mm and a rectangular section with internal dimensions 250×150 mm. The shell thickness is 3 mm and the total length is 165 mm. The adapter has an offset of 15 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 250 mm
cylinder inlet length 50 mm
rectangle internal length 250 mm
rectangle internal height 150 mm
rectangle inlet length 80 mm
offset Z 15 mm
offset Y 0 mm
total length 165 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀260 mm to 100×50 mm, thickness 3 mm + offset (📦 #1540)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀260 mm to 100×50 mm, thickness 3 mm + offset
File in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀260 mm and a rectangular section with internal dimensions 100×50 mm. The shell thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 50 mm along the Z axis. A chamfer is applied on the outside of the cylindrical end to ease insertion.
Parameter Value Unit
cylinder outer diameter 260 mm
cylinder inlet length 25 mm
rectangle internal length 100 mm
rectangle internal height 50 mm
rectangle inlet length 50 mm
offset Z 50 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀280 mm to 100×100 mm, thickness 3 mm (📦 #1683)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀280 mm to 100×100 mm, thickness 3 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀280 mm and a rectangular section with inner dimensions 100×100 mm. The shell thickness is 3 mm and the total length is 200 mm. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 280 mm
cylinder inlet length 25 mm
rectangle internal length 100 mm
rectangle internal height 100 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀300 mm to 200×200 mm, thickness 3 mm (📦 #1684)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀300 mm to 200×200 mm, thickness 3 mm
3D file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀300 mm and a rectangular section with internal dimensions 200×200 mm. The shell thickness is 3 mm and the overall length is 200 mm. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 300 mm
cylinder inlet length 25 mm
rectangle internal length 200 mm
rectangle internal height 200 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfers on ...

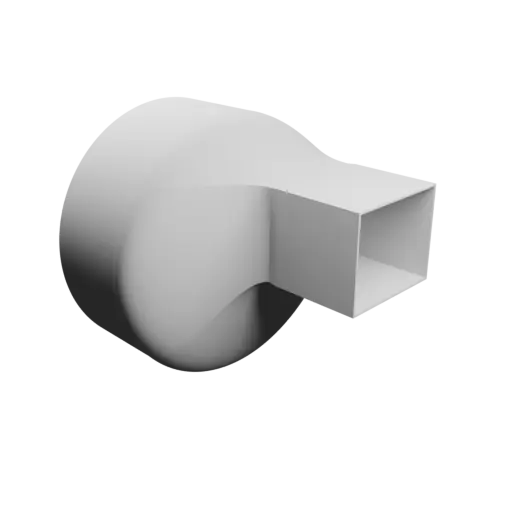

Round-to-Rectangular Tube Adapter STL file ⌀300 mm to 120×100 mm, thickness 2 mm + offset (📦 #1937)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀300 mm to 120×100 mm, thickness 2 mm + offset
Download this 3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀300 mm and a rectangular section with inner dimensions 120×100 mm. The wall thickness is 2 mm and the total length is 300 mm. The adapter has an offset of 40 mm along the Y axis and 40 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 300 mm
cylinder inlet length 100 mm
rectangle internal length 120 mm
rectangle internal height 100 mm
rectangle inlet length 100 mm
offset Z 40 mm
offset Y 40 mm
total length 300 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀300 mm to 50×100 mm, thickness 2 mm (📦 #1976)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀300 mm to 50×100 mm, thickness 2 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀300 mm and a rectangular section with inner dimensions 50×100 mm. The wall thickness is 2 mm and the total length is 200 mm. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 300 mm
cylinder inlet length 100 mm
rectangle internal length 50 mm
rectangle internal height 100 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 2 mm
chamfer chamfers on ...
