Round to rectangular adapter 3D Files - Cylinder outer diameter 150 to 200 mm | page 1

Model(s) 1 to 30 of 92

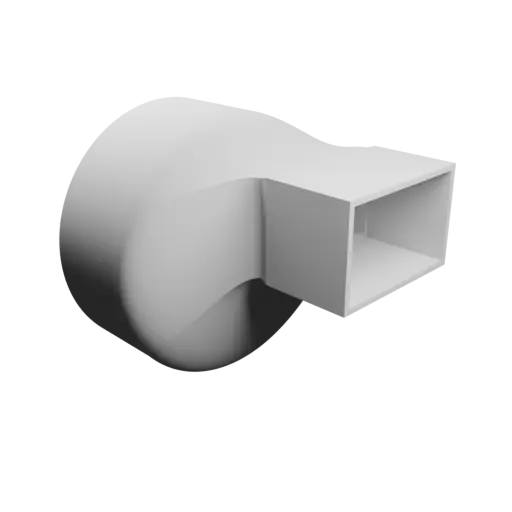

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 200×60 mm, thickness 3 mm + offset (📦 #1521)

1 object(s) - format STL (5.0/5) 1 vote(s)
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 200×60 mm, thickness 3 mm + offset
3D file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 200×60 mm. The shell thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 60 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 100×50 mm, thickness 3 mm + offset (📦 #1538)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 100×50 mm, thickness 3 mm + offset
Download this file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with inner dimensions 100×50 mm. The wall thickness is 3 mm and the total length is 200 mm. The adapter has an offset of 50 mm along the Z axis. A chamfer is present on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 25 mm
rectangle internal length 100 mm
rectangle internal height 50 mm
rectangle inlet length 50 mm
offset Z 50 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 80×50 mm, thickness 3 mm + offset (📦 #1571)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 80×50 mm, thickness 3 mm + offset
3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀150 mm and a rectangular section with internal dimensions 80×50 mm. The wall thickness is 3 mm and the overall length is 150 mm. The adapter has an offset of 25 mm along the Y axis and 25 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 80 mm
rectangle internal height 50 mm
rectangle inlet length 50 mm
offset Z 25 mm
offset Y 25 mm
total length 150 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 300×300 mm, thickness 3 mm + offset (📦 #1673)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 300×300 mm, thickness 3 mm + offset
3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with inner dimensions 300×300 mm. The shell thickness is 3 mm and the total length is 180 mm. The adapter has an offset of 4 mm along the Y axis and 4 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 300 mm
rectangle internal height 300 mm
rectangle inlet length 70 mm
offset Z 4 mm
offset Y 4 mm
total length 180 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 235×80 mm, thickness 2 mm + offset (📦 #1751)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 235×80 mm, thickness 2 mm + offset
3D model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with inner dimensions 235×80 mm. The wall thickness is 2 mm and the total length is 235 mm. The adapter has an offset of 60 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 235 mm
rectangle internal height 80 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 235 mm
thickness 2 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 235×80 mm, thickness 2 mm + offset (📦 #1752)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 235×80 mm, thickness 2 mm + offset
Download this 3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with inner dimensions 235×80 mm. The shell thickness is 2 mm and the overall length is 200 mm. The adapter has an offset of 60 mm along the Z axis. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 235 mm
rectangle internal height 80 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 2 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 150×50 mm, thickness 2 mm + offset (📦 #1787)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 150×50 mm, thickness 2 mm + offset
3D file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 150×50 mm. The shell thickness is 2 mm and the total length is 60 mm. The adapter has an offset of 17.5 mm along the Z axis. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 15 mm
rectangle internal length 150 mm
rectangle internal height 50 mm
rectangle inlet length 10 mm
offset Z 17.5 mm
offset Y 0 mm
total length 60 mm
thickness 2 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 215×50 mm, thickness 5 mm + offset (📦 #1827)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 215×50 mm, thickness 5 mm + offset
Model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 215×50 mm. The wall thickness is 5 mm and the total length is 70 mm. The adapter has an offset of 10 mm along the Y axis and 10 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 20 mm
rectangle internal length 215 mm
rectangle internal height 50 mm
rectangle inlet length 20 mm
offset Z 10 mm
offset Y 10 mm
total length 70 mm
thickness 5 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×50 mm, thickness 4 mm + offset (📦 #1926)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×50 mm, thickness 4 mm + offset
File in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 150×50 mm. The wall thickness is 4 mm and the overall length is 100 mm. The adapter has an offset of 3 mm along the Y axis and 3 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 150 mm
rectangle internal height 50 mm
rectangle inlet length 30 mm
offset Z 3 mm
offset Y 3 mm
total length 100 mm
thickness 4 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 198×98 mm, thickness 2 mm (📦 #1970)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 198×98 mm, thickness 2 mm
File in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀150 mm and a rectangular section with internal dimensions 198×98 mm. The shell thickness is 2 mm and the overall length is 152 mm. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 75 mm
rectangle internal length 198 mm
rectangle internal height 98 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 152 mm
thickness 2 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 198×98 mm, thickness 2 mm (📦 #1971)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 198×98 mm, thickness 2 mm
Download this file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀150 mm and a rectangular section with internal dimensions 198×98 mm. The shell thickness is 2 mm and the overall length is 127 mm. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 198 mm
rectangle internal height 98 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 127 mm
thickness 2 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×50 mm, thickness 4 mm (📦 #2515)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×50 mm, thickness 4 mm
Download this 3D model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with internal dimensions 150×50 mm. The shell thickness is 4 mm and the overall length is 100 mm. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 150 mm
rectangle internal height 50 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 100 mm
thickness 4 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×115 mm, thickness 4 mm (📦 #2682)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×115 mm, thickness 4 mm
3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 200×115 mm. The shell thickness is 4 mm and the total length is 200 mm. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 200 mm
rectangle internal height 115 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 4 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 300×95 mm, thickness 5 mm + offset (📦 #3858)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 300×95 mm, thickness 5 mm + offset
Download this model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 300×95 mm. The shell thickness is 5 mm and the total length is 300 mm. The adapter has an offset of 25 mm along the Z axis. A chamfer is applied on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 300 mm
rectangle internal height 95 mm
rectangle inlet length 100 mm
offset Z 25 mm
offset Y 0 mm
total length 300 mm
thickness 5 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×80 mm, thickness 3 mm + offset (📦 #4071)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×80 mm, thickness 3 mm + offset
Download this file in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 200×80 mm. The shell thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 50 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 200 mm
rectangle internal height 80 mm
rectangle inlet length 50 mm
offset Z 50 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×80 mm, thickness 3 mm (📦 #4072)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×80 mm, thickness 3 mm
3D model in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 200×80 mm. The wall thickness is 3 mm and the overall length is 200 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 200 mm
rectangle internal height 80 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×30 mm, thickness 3 mm (📦 #4712)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×30 mm, thickness 3 mm
3D file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 150×30 mm. The shell thickness is 3 mm and the overall length is 150 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 150 mm
rectangle internal height 30 mm
rectangle inlet length 80 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 150×30 mm, thickness 3 mm (📦 #4713)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 150×30 mm, thickness 3 mm
3D file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 150×30 mm. The shell thickness is 3 mm and the total length is 100 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 40 mm
rectangle internal length 150 mm
rectangle internal height 30 mm
rectangle inlet length 40 mm
offset Z 0 mm
offset Y 0 mm
total length 100 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 150×30 mm, thickness 3 mm (📦 #4715)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 150×30 mm, thickness 3 mm
3D model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 150×30 mm. The shell thickness is 3 mm and the overall length is 220 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 150 mm
rectangle internal height 30 mm
rectangle inlet length 100 mm
offset Z 0 mm
offset Y 0 mm
total length 220 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×30 mm, thickness 3 mm (📦 #5146)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 150×30 mm, thickness 3 mm
Download this file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 150×30 mm. The wall thickness is 3 mm and the overall length is 100 mm. A chamfer is applied on the outside of the cylindrical end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 40 mm
rectangle internal length 150 mm
rectangle internal height 30 mm
rectangle inlet length 40 mm
offset Z 0 mm
offset Y 0 mm
total length 100 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 110×54 mm, thickness 3 mm (📦 #5250)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 110×54 mm, thickness 3 mm
3D model in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 110×54 mm. The wall thickness is 3 mm and the total length is 107 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 40 mm
rectangle internal length 110 mm
rectangle internal height 54 mm
rectangle inlet length 47 mm
offset Z 0 mm
offset Y 0 mm
total length 107 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 120×120 mm, thickness 2 mm (📦 #5614)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 120×120 mm, thickness 2 mm
3D model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 120×120 mm. The wall thickness is 2 mm and the overall length is 100 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 20 mm
rectangle internal length 120 mm
rectangle internal height 120 mm
rectangle inlet length 20 mm
offset Z 0 mm
offset Y 0 mm
total length 100 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 200×55 mm, thickness 3 mm (📦 #6403)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 200×55 mm, thickness 3 mm
File in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with inner dimensions 200×55 mm. The shell thickness is 3 mm and the overall length is 250 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 20 mm
rectangle internal length 200 mm
rectangle internal height 55 mm
rectangle inlet length 70 mm
offset Z 0 mm
offset Y 0 mm
total length 250 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 200×55 mm, thickness 3 mm + offset (📦 #6405)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 200×55 mm, thickness 3 mm + offset
Model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 200×55 mm. The wall thickness is 3 mm and the overall length is 250 mm. The adapter has an offset of 35 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 20 mm
rectangle internal length 200 mm
rectangle internal height 55 mm
rectangle inlet length 70 mm
offset Z 35 mm
offset Y 0 mm
total length 250 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 200×55 mm, thickness 2 mm + offset (📦 #6406)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 200×55 mm, thickness 2 mm + offset
3D file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 200×55 mm. The shell thickness is 2 mm and the overall length is 250 mm. The adapter has an offset of 35 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 20 mm
rectangle internal length 200 mm
rectangle internal height 55 mm
rectangle inlet length 70 mm
offset Z 35 mm
offset Y 0 mm
total length 250 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 100×49 mm, thickness 4 mm + offset (📦 #6588)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 100×49 mm, thickness 4 mm + offset
Download this model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀150 mm and a rectangular section with inner dimensions 100×49 mm. The wall thickness is 4 mm and the total length is 100 mm. The adapter has an offset of 3 mm along the Y axis and 3 mm along the Z axis. A chamfer is applied on the outside of the cylindrical end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 100 mm
rectangle internal height 49 mm
rectangle inlet length 50 mm
offset Z 3 mm
offset Y 3 mm
total length 100 mm
thickness 4 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 220×75 mm, thickness 3 mm + offset (📦 #7845)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 220×75 mm, thickness 3 mm + offset
Download this 3D model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with internal dimensions 220×75 mm. The shell thickness is 3 mm and the overall length is 80 mm. The adapter has an offset of 2 mm along the Y axis and 2 mm along the Z axis. A chamfer is present on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 20 mm
rectangle internal length 220 mm
rectangle internal height 75 mm
rectangle inlet length 20 mm
offset Z 2 mm
offset Y 2 mm
total length 80 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 240×80 mm, thickness 3 mm + offset (📦 #7971)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀150 mm to 240×80 mm, thickness 3 mm + offset
3D model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 240×80 mm. The shell thickness is 3 mm and the total length is 200 mm. The adapter has an offset of 60 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 240 mm
rectangle internal height 80 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×60 mm, thickness 3 mm (📦 #7972)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×60 mm, thickness 3 mm
Download this model in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 200×60 mm. The shell thickness is 3 mm and the overall length is 200 mm.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 240×100 mm, thickness 3 mm (📦 #7974)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 240×100 mm, thickness 3 mm
Download this model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀150 mm and a rectangular section with inner dimensions 240×100 mm. The wall thickness is 3 mm and the total length is 200 mm. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 60 mm
rectangle internal length 240 mm
rectangle internal height 100 mm
rectangle inlet length 60 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfers on ...
Can't find the right model? Create it with your specs
