Custom Protective grid STL file, center-to-center: 110x110mm, mesh: 8mm - Ø8mm 📦#9853
Generation date: 2026-07-06
3D model download
Free- honeycomb-grid-loc110mm-woc110_model9853-nb0_dd{id}.stl : 428.8 Ko
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 110 mm (≃4.33 in) |
| #2 | width or center-to-center | 110 mm (≃4.33 in) |
| #3 | mesh size | 8 mm (≃5/16 in) |
| #4 | dual color | no |
| #5 | holes | yes |
| #6 | hole diameter | 8 mm (≃5/16 in) |
| Metadata | Value |
|---|---|
| total length | 126 mm (≃4.96 in) |
| total width | 126 mm (≃4.96 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard

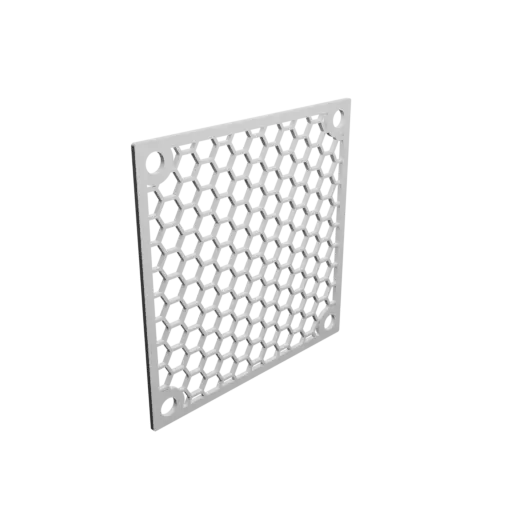

Honeycomb grille STL 3D file, center-to-center: 100x100mm, mesh: 9mm - Ø8mm (📦 #4946)
1 object(s) - format STL
Download this honeycomb protective square grid as a STL file. Mounting holes are placed at the four corners (center-to-center 100x100 mm), each with a diameter of Ø8 mm. The overall dimensions reach 116x116 mm, with extra wide 9 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 9 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |

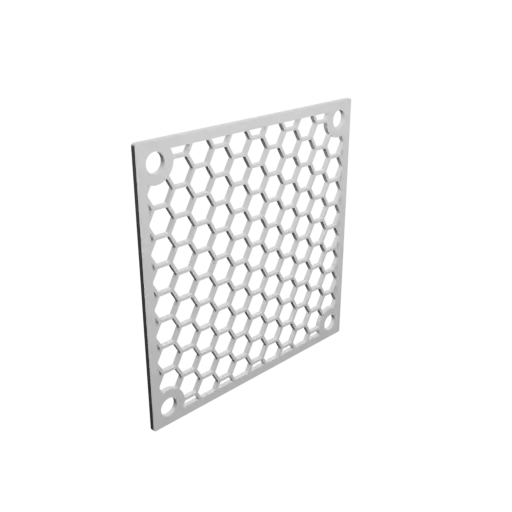

Protective grid STL 3D file, center-to-center: 100x100mm, mesh: 10mm - Ø8mm (📦 #8079)
1 object(s) - format STL
Download this honeycomb square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 100x100 mm), each with a diameter of Ø8 mm. The overall dimensions reach 116x116 mm, with very open 10 mm cell size for peak ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grid STL file, center-to-center: 120x120mm, mesh: 10mm - Ø8mm (📦 #3421)
1 object(s) - format STL
3D square protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 120x120 mm), each with a diameter of Ø8 mm. The overall dimensions reach 136x136 mm, with very large 10 mm cell size for peak ventilation. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL file, center-to-center: 134x134mm, mesh: 10mm - Ø8mm (📦 #4506)
1 object(s) - format STL
3D square honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 134x134 mm), each with a diameter of Ø8 mm. The overall dimensions reach 150x150 mm, with very open 10 mm cell size for maximum airflow. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 134 | mm |
| width or center-to-center | 134 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grid STL file, center-to-center: 75x75mm, mesh: 10mm - Ø8mm (📦 #2907)
1 object(s) - format STL
Download this 3D square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 75x75 mm), each with a diameter of Ø8 mm. The overall dimensions reach 91x91 mm, with very open 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 75 | mm |
| width or center-to-center | 75 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grille STL file, center-to-center: 150x150mm, mesh: 10mm - Ø8mm (📦 #4505)
1 object(s) - format STL
Download this 3D square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 150x150 mm), each with a diameter of Ø8 mm. The overall dimensions reach 166x166 mm, with extra wide 10 mm cell size for peak ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 150 | mm |
| width or center-to-center | 150 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL file, center-to-center: 108x108mm, mesh: 10mm - Ø6mm (📦 #3490)
1 object(s) - format STL
Download this 3D fan guard model in STL format. Mounting holes are placed at the four corners (center-to-center 108x108 mm), each with a diameter of Ø6 mm. The overall dimensions reach 120x120 mm, with very large 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 108 | mm |
| width or center-to-center | 108 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Honeycomb grid STL file, center-to-center: 106x106mm, mesh: 10mm - Ø6mm (📦 #3569)
1 object(s) - format STL
Fan guard model as a STL file. Mounting holes are placed at the four corners (center-to-center 106x106 mm), each with a diameter of Ø6 mm. The overall dimensions reach 118x118 mm, with very open 10 mm cell size for maximum airflow. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 106 | mm |
| width or center-to-center | 106 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Honeycomb grid STL file, center-to-center: 105x105mm, mesh: 6mm - Ø6mm (📦 #3496)
1 object(s) - format STL
Square grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 105x105 mm), each with a diameter of Ø6 mm. The overall dimensions reach 117x117 mm, with large 6 mm cell size to enhance ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Honeycomb grille STL 3D file, center-to-center: 105x105mm, mesh: 10mm - Ø6mm (📦 #4424)
1 object(s) - format STL
Download this 3D square protective grid model in STL format. Mounting holes are placed at the four corners (center-to-center 105x105 mm), each with a diameter of Ø6 mm. The overall dimensions reach 117x117 mm, with very open 10 mm cell size for maximum airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Honeycomb grid STL 3D file, center-to-center: 120x120mm, mesh: 10mm - Ø6mm (📦 #9098)
1 object(s) - format STL
3D square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 120x120 mm), each with a diameter of Ø6 mm. The overall dimensions reach 132x132 mm, with very open 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Honeycomb grille STL 3D file, center-to-center: 100x100mm, mesh: 8mm - Ø5mm (📦 #8615)
1 object(s) - format STL
Square protective grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 100x100 mm), each with a diameter of Ø5 mm. The overall dimensions reach 110x110 mm, with open 8 mm cell size for optimal air circulation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |

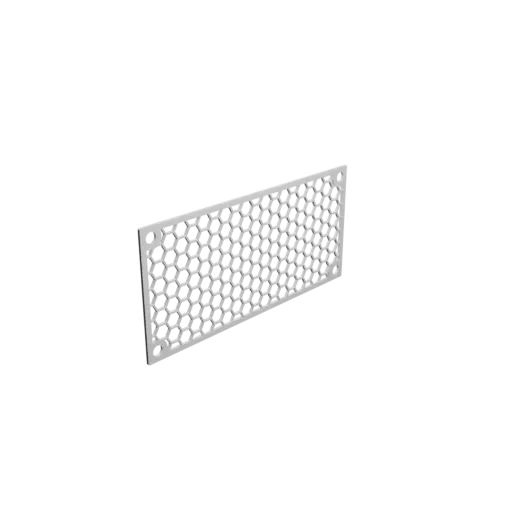

Protective grid STL 3D file, center-to-center: 185x80mm, mesh: 10mm - Ø8mm (📦 #7612)
1 object(s) - format STL
Download this 3D rectangular protective honeycomb grid as a STL file. Mounting holes are placed at the four corners (center-to-center 185x80 mm), each with a diameter of Ø8 mm. The overall dimensions reach 201x96 mm, with very large 10 mm cell size for maximum airflow. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 185 | mm |
| width or center-to-center | 80 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grille STL file, center-to-center: 50x50mm, mesh: 10mm - Ø8mm (📦 #2909)
1 object(s) - format STL
3D honeycomb square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 50x50 mm), each with a diameter of Ø8 mm. The overall dimensions reach 66x66 mm, with very open 10 mm cell size for maximum airflow. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 50 | mm |
| width or center-to-center | 50 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grid STL 3D file, center-to-center: 120x120mm, mesh: 5mm - Ø6mm (📦 #3495)
1 object(s) - format STL
3D square protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 120x120 mm), each with a diameter of Ø6 mm. The overall dimensions reach 132x132 mm, with standard 5 mm cell size for versatile use. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Protective grid STL file, center-to-center: 200x100mm, mesh: 10mm - Ø8mm (📦 #6445)
1 object(s) - format STL
Download this rectangular protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 200x100 mm), each with a diameter of Ø8 mm. The overall dimensions reach 216x116 mm, with very open 10 mm cell size for peak ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grille STL file, center-to-center: 109x109mm, mesh: 6mm - Ø5mm (📦 #3540)
1 object(s) - format STL
3D fan guard file in STL format. Mounting holes are placed at the four corners (center-to-center 109x109 mm), each with a diameter of Ø5 mm. The overall dimensions reach 119x119 mm, with large 6 mm cell size to enhance ventilation. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 109 | mm |
| width or center-to-center | 109 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL file, center-to-center: 107x107mm, mesh: 10mm - Ø5mm (📦 #3491)
1 object(s) - format STL
3D square protective honeycomb grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 107x107 mm), each with a diameter of Ø5 mm. The overall dimensions reach 117x117 mm, with very large 10 mm cell size for maximum airflow. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 107 | mm |
| width or center-to-center | 107 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL file, center-to-center: 106x106mm, mesh: 10mm - Ø5mm (📦 #3566)
1 object(s) - format STL
3D fan guard model as a STL file. Mounting holes are placed at the four corners (center-to-center 106x106 mm), each with a diameter of Ø5 mm. The overall dimensions reach 116x116 mm, with very open 10 mm cell size for maximum airflow. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 106 | mm |
| width or center-to-center | 106 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL file, center-to-center: 105x105mm, mesh: 6mm - Ø5mm (📦 #3548)
1 object(s) - format STL
3D square honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 105x105 mm), each with a diameter of Ø5 mm. The overall dimensions reach 115x115 mm, with open 6 mm cell size to maximize airflow. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grid STL file, center-to-center: 105x105mm, mesh: 10mm - Ø5mm (📦 #9786)
1 object(s) - format STL
Square protective grid model in STL format. Mounting holes are placed at the four corners (center-to-center 105x105 mm), each with a diameter of Ø5 mm. The overall dimensions reach 115x115 mm, with very open 10 mm cell size for maximum airflow. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grid STL file, center-to-center: 150x150mm, mesh: 8mm - Ø5mm (📦 #9387)
1 object(s) - format STL
Download this 3D square honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 150x150 mm), each with a diameter of Ø5 mm. The overall dimensions reach 160x160 mm, with wide 8 mm cell size to enhance ventilation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 150 | mm |
| width or center-to-center | 150 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL 3D file, center-to-center: 80x66mm, mesh: 7mm - Ø5mm (📦 #2726)
1 object(s) - format STL (5.0/5) 1 vote(s)
Download this 3D honeycomb protective rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 80x66 mm), each with a diameter of Ø5 mm. The overall dimensions reach 90x76 mm, with large 7 mm cell size to enhance ventilation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 80 | mm |
| width or center-to-center | 66 | mm |
| mesh size | 7 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grille STL 3D file, center-to-center: 103x79mm, mesh: 6mm - Ø5mm (📦 #4947)
1 object(s) - format STL
3D rectangular honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 103x79 mm), each with a diameter of Ø5 mm. The overall dimensions reach 113x89 mm, with open 6 mm cell size to maximize airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 103 | mm |
| width or center-to-center | 79 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |

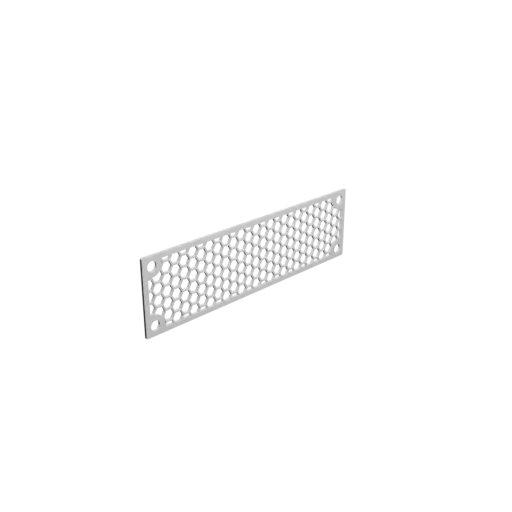

Protective grid STL file, center-to-center: 200x45mm, mesh: 8mm - Ø8mm (📦 #5549)
1 object(s) - format STL
Download this 3D honeycomb protective rectangular grid as a STL file. Mounting holes are placed at the four corners (center-to-center 200x45 mm), each with a diameter of Ø8 mm. The overall dimensions reach 216x61 mm, with large 8 mm cell size for optimal air circulation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 45 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL file, center-to-center: 190x120mm, mesh: 10mm - Ø6mm (📦 #4198)
1 object(s) - format STL
Download this honeycomb protective rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 190x120 mm), each with a diameter of Ø6 mm. The overall dimensions reach 202x132 mm, with extra wide 10 mm cell size for peak ventilation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 190 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 6 | mm |
Honeycomb grille STL file, center-to-center: 140x100mm, mesh: 4mm - Ø8mm (📦 #4675)
1 object(s) - format STL
Download this 3D rectangular protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 140x100 mm), each with a diameter of Ø8 mm. The overall dimensions reach 156x116 mm, with standard 4 mm cell size for versatile use. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 140 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL 3D file, center-to-center: 180x180mm, mesh: 10mm - Ø8mm (📦 #3860)
1 object(s) - format STL
Download this 3D fan guard model in STL format. Mounting holes are placed at the four corners (center-to-center 180x180 mm), each with a diameter of Ø8 mm. The overall dimensions reach 196x196 mm, with extra wide 10 mm cell size for maximum airflow. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 180 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grid STL 3D file, center-to-center: 150x110mm, mesh: 4mm - Ø8mm (📦 #2902)
1 object(s) - format STL
3D honeycomb rectangular grid file in STL format. Mounting holes are placed at the four corners (center-to-center 150x110 mm), each with a diameter of Ø8 mm. The overall dimensions reach 166x126 mm, with standard 4 mm cell size for balanced airflow and protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 150 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Protective grid STL file, center-to-center: 200x45mm, mesh: 7mm - Ø7mm (📦 #5545)
1 object(s) - format STL
Honeycomb protective rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 200x45 mm), each with a diameter of Ø7 mm. The overall dimensions reach 214x59 mm, with wide 7 mm cell size to enhance ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 45 | mm |
| mesh size | 7 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 7 | mm |
