Custom Honeycomb grid STL file, center-to-center: 216x156mm, mesh: 5mm - Ø3mm 📦#9615
Generation date: 2026-06-23
3D model download
Free- honeycomb-grid-loc216mm-woc156_model9615-nb0_dd{id}.stl : 1.6 Mo
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 216 mm (≃8 1/2 in) |
| #2 | width or center-to-center | 156 mm (≃6.14 in) |
| #3 | mesh size | 5 mm (≃3/16 in) |
| #4 | dual color | no |
| #5 | holes | yes |
| #6 | hole diameter | 3 mm (≃1/8 in) |
| Metadata | Value |
|---|---|
| total length | 222 mm (≃8 3/4 in) |
| total width | 162 mm (≃6 3/8 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard

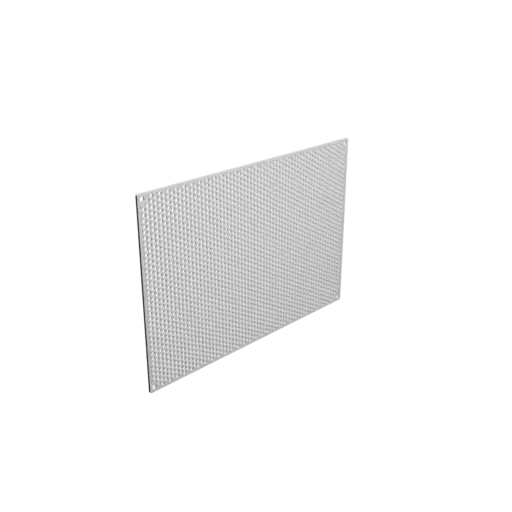

Honeycomb grille STL file, center-to-center: 210x150mm, mesh: 4mm - Ø3mm (📦 #9616)
