Custom Honeycomb grid STL file, center-to-center: 185x110mm, mesh: 3mm - Ø4mm 📦#9539
Generation date: 2026-06-19
3D model download
Free- honeycomb-grid-loc185mm-woc110_model9539-nb0_dd{id}.stl : 2.1 Mo
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 185 mm (≃7.28 in) |
| #2 | width or center-to-center | 110 mm (≃4.33 in) |
| #3 | mesh size | 3 mm (≃1/8 in) |
| #4 | dual color | no |
| #5 | holes | yes |
| #6 | hole diameter | 4 mm (≃0.16 in) |
| Metadata | Value |
|---|---|
| total length | 193 mm (≃7.60 in) |
| total width | 118 mm (≃4.65 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard
Protective grid STL file, center-to-center: 200x100mm, mesh: 3mm - Ø4mm (📦 #6277)
1 object(s) - format STL
Download this honeycomb protective rectangular grid as a STL file. Mounting holes are placed at the four corners (center-to-center 200x100 mm), each with a diameter of Ø4 mm. The overall dimensions reach 208x108 mm, with fine 3 mm cell size for strong protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL file, center-to-center: 190x130mm, mesh: 3mm - Ø5mm (📦 #9586)
1 object(s) - format STL
3D rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 190x130 mm), each with a diameter of Ø5 mm. The overall dimensions reach 200x140 mm, with very fine 3 mm cell size for strong protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 190 | mm |
| width or center-to-center | 130 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |

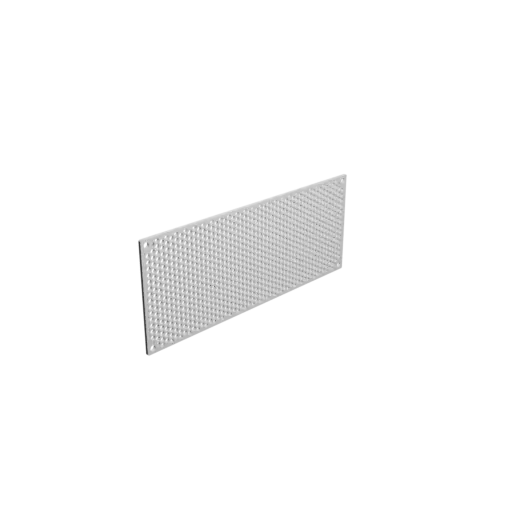

Honeycomb grille STL 3D file, center-to-center: 183x69mm, mesh: 3mm - Ø4mm (📦 #5104)
