Custom Tubing adapter STL 3D file ⌀ 33–14 mm (Length: 40 mm) 📦#4348

STL Download STL 2
Create a new model expert
from scratch search for a model
Tubing reducer ⌀33 mm to ⌀14 mm in STL format. Length of this coupler is 40 mm. The larger-diameter tube has a thickness of 2.5 mm and a sleeve length of 15 mm. The smaller-diameter tube has a thickness of 2 mm and a length of 15 mm as well. The ends have no fillet.
Generation date: 2025-12-05
3D Model Tubing adapter STL 3D file ⌀ 33–14 mm (Length: 40 mm)

3D model download

Free
  • inline-tube-adapter-lenA15mm-d_model4348-nb0_dd{id}.stl : 2 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 15 mm (≃0.59 in)
#2 side A outer diameter 33 mm (≃1 5/16 in)
#3 side A thickness 2.5 mm (≃0.10 in)
#4 side B length 15 mm (≃0.59 in)
#5 side B outer diameter 14 mm (≃9/16 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 10 mm (≃0.39 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 28 mm (≃1.10 in)
inner diameter (side B) 10 mm (≃0.39 in)
total length 40 mm (≃1 9/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL file ⌀ 27–7 mm (Length: 39 mm) (📦 #2193)

1 object(s) - format STL
Tube adapter STL file ⌀ 27–7 mm (Length: 39 mm)
Straight tube connector ⌀27 mm to ⌀7 mm in STL format. Length of this coupler is 39 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 14 mm. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 27 mm
side A thickness 2 mm
side B length 14 mm
side B outer diameter 7 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 33–18 mm (Length: 50 mm) (📦 #1525)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 33–18 mm (Length: 50 mm)
Straight tube connector ⌀33 mm to ⌀18 mm in STL format. Length of this junction is 50 mm. The larger-diameter tube has a thickness of 2.9 mm and a length of 15 mm. The smaller-diameter tube has a thickness of 2 mm and a length of 20 mm. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 33 mm
side A thickness 2.9 mm
side B length 20 mm
side B outer diameter 18 mm
side B thickness 2 mm
transition length 15 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 26–7 mm (Length: 39 mm) (📦 #2196)

1 object(s) - format STL
Tube adapter STL file ⌀ 26–7 mm (Length: 39 mm)
Tube adapter ⌀26 mm to ⌀7 mm in STL format. Total length of this junction is 39 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 14 mm. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 26 mm
side A thickness 2 mm
side B length 14 mm
side B outer diameter 7 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 38–19 mm (Length: 35 mm) (📦 #3655)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 38–19 mm (Length: 35 mm)
Inline tube coupler ⌀38 mm to ⌀19 mm in STL 3D format. Final length of this adapter is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 15 mm, the smaller one of 10 mm. The ends have no fillet.
Parameter Value Unit
side A length 15 mm
side A outer diameter 38 mm
side A thickness 2 mm
side B length 10 mm
side B outer diameter 19 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 25–17 mm (Length: 35 mm) (📦 #7977)

1 object(s) - format STL
Tube adapter STL file ⌀ 25–17 mm (Length: 35 mm)
Inline sleeve ⌀25 mm to ⌀17 mm in STL 3D format. Length of this connector is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 15 mm, the smaller one of 15 mm as well. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 25 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 17 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 24–17 mm (Length: 35 mm) (📦 #7975)

1 object(s) - format STL
Tube adapter STL file ⌀ 24–17 mm (Length: 35 mm)
Inline tubing adapter ⌀24 mm to ⌀17 mm in STL 3D format. Final length of this coupler is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 15 mm, the smaller one of 15 mm as well. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 24 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 17 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 32–10 mm (Length: 30 mm) (📦 #4049)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 32–10 mm (Length: 30 mm)
Inline tubing adapter ⌀32 mm to ⌀10 mm in STL 3D format. Final length of this adapter is 30 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 10 mm, the smaller one of 10 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 10 mm
side A outer diameter 32 mm
side A thickness 2 mm
side B length 10 mm
side B outer diameter 10 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL file ⌀ 25–19 mm (Length: 35 mm) (📦 #8069)

1 object(s) - format STL
Tubing adapter STL file ⌀ 25–19 mm (Length: 35 mm)
Inline tube adapter ⌀25 mm to ⌀19 mm in STL format. Final length of this sleeve is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 15 mm as well. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 25 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 19 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 22–13 mm (Length: 35 mm) (📦 #7774)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 22–13 mm (Length: 35 mm)
Inline tube adapter ⌀22 mm to ⌀13 mm in STL 3D format. Final length of this junction is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 10 mm, the smaller one of 15 mm. The ends are raw.
Parameter Value Unit
side A length 10 mm
side A outer diameter 22 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 13 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 22–15 mm (Length: 35 mm) (📦 #7970)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 22–15 mm (Length: 35 mm)
Straight tube reducer ⌀22 mm to ⌀15 mm in STL 3D format. Total length of this adapter is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 15 mm as well. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 22 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 15 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 25–7 mm (Length: 35 mm) (📦 #2190)

1 object(s) - format STL
Tube adapter STL file ⌀ 25–7 mm (Length: 35 mm)
Inline sleeve ⌀25 mm to ⌀7 mm in STL format. Total length of this connector is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 10 mm. The ends have no fillet.
Parameter Value Unit
side A length 15 mm
side A outer diameter 25 mm
side A thickness 2 mm
side B length 10 mm
side B outer diameter 7 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 22–14 mm (Length: 31 mm) (📦 #5097)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 22–14 mm (Length: 31 mm)
Tube junction ⌀22 mm to ⌀14 mm in STL format. Length of this fitting is 31 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 10 mm. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 22 mm
side A thickness 2 mm
side B length 10 mm
side B outer diameter 14 mm
side B thickness 2 mm
transition length 6 mm
axis offset 0 mm
ends fillet no fillet

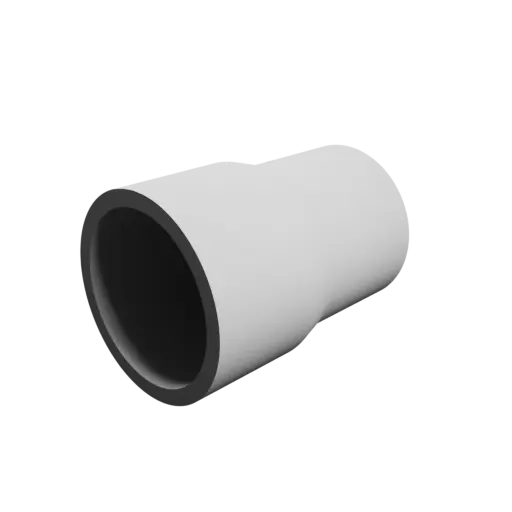

Tube adapter STL file ⌀ 25–22 mm (Length: 35 mm) (📦 #4401)

1 object(s) - format STL
Tube adapter STL file ⌀ 25–22 mm (Length: 35 mm)
Straight tube adapter ⌀25 mm to ⌀22 mm in STL 3D format. Total length of this adapter is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 15 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 15 mm
side A outer diameter 25 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 22 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 33–26 mm (Length: 50 mm) (📦 #1526)

1 object(s) - format STL (5.0/5) 1 vote(s)
Tube adapter STL 3D file ⌀ 33–26 mm (Length: 50 mm)
Straight tube adapter ⌀33 mm to ⌀26 mm in STL 3D format. Final length of this fitting is 50 mm. The larger-diameter tube has a thickness of 2.8 mm and a sleeve length of 15 mm. The smaller-diameter tube has a thickness of 2 mm and a length of 20 mm. The ends are not rounded.
Parameter Value Unit
side A length 15 mm
side A outer diameter 33 mm
side A thickness 2.8 mm
side B length 20 mm
side B outer diameter 26 mm
side B thickness 2 mm
transition length 15 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 40–16 mm (Length: 36 mm) (📦 #9409)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 40–16 mm (Length: 36 mm)
Tube connector ⌀40 mm to ⌀16 mm in STL format. Length of this sleeve is 36 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 12 mm, the smaller one of 12 mm as well. The axes of the tubes are off-center by 2 mm. The ends are not rounded.
Parameter Value Unit
side A length 12 mm
side A outer diameter 40 mm
side A thickness 2 mm
side B length 12 mm
side B outer diameter 16 mm
side B thickness 2 mm
transition length 12 mm
axis offset 2 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 21–13 mm (Length: 31 mm) (📦 #5103)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 21–13 mm (Length: 31 mm)
Inline tube adapter ⌀21 mm to ⌀13 mm in STL 3D format. Final length of this sleeve is 31 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 15 mm, the smaller one of 10 mm. The ends are not rounded.
Parameter Value Unit
side A length 15 mm
side A outer diameter 21 mm
side A thickness 2 mm
side B length 10 mm
side B outer diameter 13 mm
side B thickness 2 mm
transition length 6 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL file ⌀ 21–12 mm (Length: 31 mm) (📦 #5101)

1 object(s) - format STL
Tubing adapter STL file ⌀ 21–12 mm (Length: 31 mm)
Tube reducer ⌀21 mm to ⌀12 mm in STL 3D format. Total length of this coupler is 31 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 10 mm. The ends have no fillet.
Parameter Value Unit
side A length 15 mm
side A outer diameter 21 mm
side A thickness 2 mm
side B length 10 mm
side B outer diameter 12 mm
side B thickness 2 mm
transition length 6 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL file ⌀ 24–23 mm (Length: 35 mm) (📦 #6756)

1 object(s) - format STL
Tubing adapter STL file ⌀ 24–23 mm (Length: 35 mm)
Inline tube junction ⌀24 mm to ⌀23 mm in STL format. Length of this adapter is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 15 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 15 mm
side A outer diameter 24 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 23 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 20–12 mm (Length: 50 mm) (📦 #2410)

1 object(s) - format STL
Tube adapter STL file ⌀ 20–12 mm (Length: 50 mm)
Inline tube coupler ⌀20 mm to ⌀12 mm in STL format. Total length of this coupler is 50 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 20 mm, the smaller one of 20 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 20 mm
side A outer diameter 20 mm
side A thickness 2 mm
side B length 20 mm
side B outer diameter 12 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

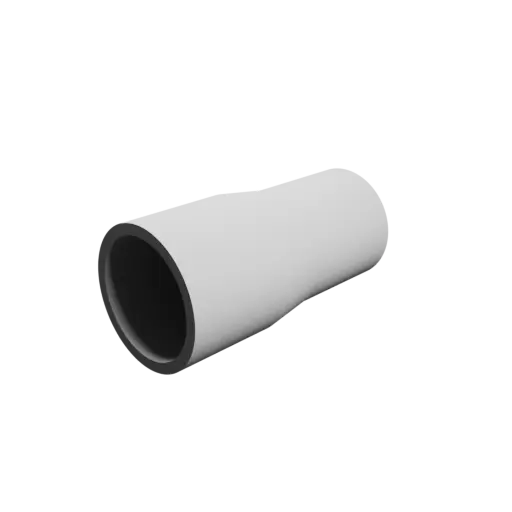

Tube adapter STL 3D file ⌀ 25–22 mm (Length: 50 mm) (📦 #4397)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 25–22 mm (Length: 50 mm)
Tube adapter ⌀25 mm to ⌀22 mm in STL format. Final length of this adapter is 50 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 20 mm, the smaller one of 20 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 20 mm
side A outer diameter 25 mm
side A thickness 2 mm
side B length 20 mm
side B outer diameter 22 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 25–22 mm (Length: 40 mm) (📦 #8415)

1 object(s) - format STL
Tube adapter STL file ⌀ 25–22 mm (Length: 40 mm)
Straight tubing adapter ⌀25 mm to ⌀22 mm in STL format. Total length of this junction is 40 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 10 mm, the smaller one of 20 mm. The ends have no fillet.
Parameter Value Unit
side A length 10 mm
side A outer diameter 25 mm
side A thickness 2 mm
side B length 20 mm
side B outer diameter 22 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 22–20 mm (Length: 30 mm) (📦 #6751)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 22–20 mm (Length: 30 mm)
Straight tube adapter ⌀22 mm to ⌀20 mm in STL format. Total length of this junction is 30 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 10 mm, the smaller one of 15 mm. The ends have no fillet.
Parameter Value Unit
side A length 10 mm
side A outer diameter 22 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 20 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 17–10 mm (Length: 35 mm) (📦 #2439)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 17–10 mm (Length: 35 mm)
Tube fitting ⌀17 mm to ⌀10 mm in STL format. Final length of this sleeve is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 15 mm, the smaller one of 15 mm as well. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 17 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 10 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 19–16 mm (Length: 30 mm) (📦 #2145)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 19–16 mm (Length: 30 mm)
Straight tube coupler ⌀19 mm to ⌀16 mm in STL 3D format. Final length of this sleeve is 30 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 10 mm. The ends are not rounded.
Parameter Value Unit
side A length 15 mm
side A outer diameter 19 mm
side A thickness 2 mm
side B length 10 mm
side B outer diameter 16 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 34–27 mm (Length: 45 mm) (📦 #5268)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 34–27 mm (Length: 45 mm)
Inline tube junction ⌀34 mm to ⌀27 mm in STL 3D format. Total length of this junction is 45 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 15 mm, the smaller one of 15 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 15 mm
side A outer diameter 34 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 27 mm
side B thickness 2 mm
transition length 15 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 20–13 mm (Length: 26 mm) (📦 #5095)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 20–13 mm (Length: 26 mm)
Straight tube connector ⌀20 mm to ⌀13 mm in STL format. Total length of this connector is 26 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 10 mm, the smaller one of 10 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 10 mm
side A outer diameter 20 mm
side A thickness 2 mm
side B length 10 mm
side B outer diameter 13 mm
side B thickness 2 mm
transition length 6 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 38–27 mm (Length: 45 mm) (📦 #5269)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 38–27 mm (Length: 45 mm)
Tube coupler ⌀38 mm to ⌀27 mm in STL format. Final length of this fitting is 45 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 15 mm, the smaller one of 15 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 15 mm
side A outer diameter 38 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 27 mm
side B thickness 2 mm
transition length 15 mm
axis offset 0 mm
ends fillet no fillet
