Custom Round air vent STL file ∅ 100 mm, slat angle: 10° 📦#3686

STL Download STL
Create a new model easy
from scratch search for a model
Design of a round vent cover for ventilation in STL format. Its insertion diameter measures 100 mm. The slats have a slight angle of 10° and a high thickness of 2 mm. This 3D vent grille features a prominent flange of 20 mm. The full diameter of this model is 140 mm.
Generation date: 2025-11-25
3D Model Round air vent STL file ∅ 100 mm, slat angle: 10°

3D model download

Free
  • round-air-vent-dia100mm-slD10d_model3686-nb0_dd{id}.stl : 1.8 Mo
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - non commercial use - no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round air vent grill template, with the following values:
Parameter Value
#1 male diameter 100 mm (≃3 15/16 in)
#2 slat angle 10 °
#3 slat thickness 2 mm (≃0.08 in)
#4 flange width 20 mm (≃0.79 in)
#5 central reinforcement no
Metadata Value
Total diameter (including flange) 140 mm (≃5 1/2 in)
Total thickness 25 mm (≃0.98 in)
illustration of the parameters
Parameter overview

  • The total thickness of the vent is 25 mm.
  • Whatever the parameters, the slats never overlap. This ensures an optimal airflow. At the same time, the slats form an almost opaque screen along the axis.
  • The slats are actually shaped as parallelograms rather than rectangles. This ensures better printability.
  • The slats and the central reinforcement (if present) feature a 0.40 mm fillet on all edges. This improves airflow and prevents potential whistling.
  • The collar, if present, is 3 mm thick and has a 2 mm fillet for aesthetic purposes.
  • The male insertion area is 3 mm thick and has a 1 mm fillet on both edges to facilitate insertion into the intended slot.
  • The central reinforcement, if present, is 2 mm thick and spans the entire projected width of the slats.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 male diameter dia
#2 slat angle slD
#3 slat thickness slT
#4 flange width flW
#5 central reinforcement renf

Related 3D models

To search for a model based on your own parameters, go to the template page Round air vent grill

Round air vent STL 3D file ∅ 101 mm, slat angle: 14° (📦 #7343)

1 object(s) - format STL
Round air vent STL 3D file ∅ 101 mm, slat angle: 14°
Model of a round air vent for ventilation in STL format. Its insertion diameter is 101 mm. The slats have a slight angle of 14° and a high thickness of 2.0 mm. This 3D ventilation grille has a prominent flange of 15 mm. The full diameter of this model is 131 mm.
Parameter Value Unit
male diameter 101 mm
slat angle 14 °
slat thickness 2.0 mm
flange width 15 mm
central reinforcement no

Round air vent STL file ∅ 99 mm, slat angle: 20° (📦 #3056)

1 object(s) - format STL
Round air vent STL file ∅ 99 mm, slat angle: 20°
Model of a round grille for air circulation in STL format. Its insertion diameter is 99 mm. The slats have a slight angle of 20° and a high thickness of 2 mm. This ventilation grille has a prominent flange of 16 mm. The total diameter of the model is 131 mm.
Parameter Value Unit
male diameter 99 mm
slat angle 20 °
slat thickness 2 mm
flange width 16 mm
central reinforcement no

Round air vent STL file ∅ 100 mm, slat angle: 30° (📦 #3893)

1 object(s) - format STL
Round air vent STL file ∅ 100 mm, slat angle: 30°
Design of a round grille for air circulation in STL format. Its male diameter measures 100 mm. The slats have a slight angle of 30° and a high thickness of 2 mm. This vent grille features a prominent flange of 20 mm. The full diameter of the model is 140 mm.
Parameter Value Unit
male diameter 100 mm
slat angle 30 °
slat thickness 2 mm
flange width 20 mm
central reinforcement no

Round air vent STL 3D file ∅ 80 mm, slat angle: 10° (📦 #8915)

1 object(s) - format STL
Round air vent STL 3D file ∅ 80 mm, slat angle: 10°
3D design of a round vent cover for ventilation in STL format. Its male diameter is 80 mm. The slats have a slight angle of 10° and a low thickness of 1.6 mm. This aeration grille features a prominent flange of 20 mm. The full diameter of the model is 120 mm.
Parameter Value Unit
male diameter 80 mm
slat angle 10 °
slat thickness 1.6 mm
flange width 20 mm
central reinforcement no

Round air vent STL file ∅ 87 mm, slat angle: 30° (📦 #3804)

1 object(s) - format STL
Round air vent STL file ∅ 87 mm, slat angle: 30°
3D design of a round grille for ventilation in STL format. Its male diameter measures 87 mm. The slats have a slight angle of 30° and a high thickness of 2 mm. This 3D aeration grille features a prominent flange of 20 mm. The full diameter of this model is 127 mm.
Parameter Value Unit
male diameter 87 mm
slat angle 30 °
slat thickness 2 mm
flange width 20 mm
central reinforcement no

Round air vent STL 3D file ∅ 78 mm, slat angle: 30° (📦 #3597)

1 object(s) - format STL
Round air vent STL 3D file ∅ 78 mm, slat angle: 30°
3D design of a round air vent for ventilation in STL format. Its insertion diameter measures 78 mm. The slats have a slight angle of 30° and a high thickness of 2 mm. This 3D vent cover features a prominent flange of 20 mm. The overall diameter of this model is 118 mm.
Parameter Value Unit
male diameter 78 mm
slat angle 30 °
slat thickness 2 mm
flange width 20 mm
central reinforcement no

Round air vent STL file ∅ 100 mm, slat angle: 20° (📦 #8573)

1 object(s) - format STL
Round air vent STL file ∅ 100 mm, slat angle: 20°
3D file of a round air vent for ventilation in STL format. Its male diameter is 100 mm. The slats have a slight angle of 20° and a high thickness of 2.4 mm. This 3D vent cover features a prominent flange of 20 mm. The overall diameter of the model is 140 mm.
Parameter Value Unit
male diameter 100 mm
slat angle 20 °
slat thickness 2.4 mm
flange width 20 mm
central reinforcement no

Round air vent STL file ∅ 80 mm, slat angle: 30° (📦 #5240)

1 object(s) - format STL
Round air vent STL file ∅ 80 mm, slat angle: 30°
3D design of a round grille for ventilation in STL format. Its insertion diameter is 80 mm. The slats have a slight angle of 30° and a high thickness of 2 mm. This aeration grille features a prominent flange of 15 mm. The full diameter of the model is 110 mm.
Parameter Value Unit
male diameter 80 mm
slat angle 30 °
slat thickness 2 mm
flange width 15 mm
central reinforcement no

Round air vent STL 3D file ∅ 95 mm, slat angle: 10° (📦 #7319)

1 object(s) - format STL
Round air vent STL 3D file ∅ 95 mm, slat angle: 10°
Design of a round air vent for ventilation in STL format. Its male diameter is 95 mm. The slats have a slight angle of 10° and a high thickness of 2.0 mm. This 3D ventilation grille features a flange of 10 mm. The total diameter of the model is 115 mm.
Parameter Value Unit
male diameter 95 mm
slat angle 10 °
slat thickness 2.0 mm
flange width 10 mm
central reinforcement no

Round air vent STL 3D file ∅ 115 mm, slat angle: 10° (📦 #2396)

1 object(s) - format STL
Round air vent STL 3D file ∅ 115 mm, slat angle: 10°
3D design of a round vent cover for ventilation in STL format. Its male diameter is 115 mm. The slats have a slight angle of 10° and a high thickness of 2 mm. This 3D vent cover features a flange of 10 mm. The full diameter of this model is 135 mm.
Parameter Value Unit
male diameter 115 mm
slat angle 10 °
slat thickness 2 mm
flange width 10 mm
central reinforcement no

Round air vent STL file ∅ 122 mm, slat angle: 30° (📦 #1794)

1 object(s) - format STL (4.0/5) 1 vote(s)
Round air vent STL file ∅ 122 mm, slat angle: 30°
File of a round air vent for ventilation in STL format. Its insertion diameter measures 122 mm. The slats have a slight angle of 30° and a high thickness of 1.8 mm. This 3D ventilation grille has a prominent flange of 16 mm. The full diameter of this model is 154 mm.
Parameter Value Unit
male diameter 122 mm
slat angle 30 °
slat thickness 1.8 mm
flange width 16 mm
central reinforcement no

Round air vent STL 3D file ∅ 96 mm, slat angle: 20° (📦 #3925)

1 object(s) - format STL
Round air vent STL 3D file ∅ 96 mm, slat angle: 20°
File of a round air vent for ventilation in STL format. Its insertion diameter measures 96 mm. The slats have a slight angle of 20° and a high thickness of 2 mm. This ventilation grille features a collar of 10 mm. The total diameter of the model is 116 mm.
Parameter Value Unit
male diameter 96 mm
slat angle 20 °
slat thickness 2 mm
flange width 10 mm
central reinforcement no

Round air vent STL file ∅ 144 mm, slat angle: 35° (📦 #9445)

1 object(s) - format STL
Round air vent STL file ∅ 144 mm, slat angle: 35°
Design of a round air vent for air circulation in STL format. Its male diameter is 144 mm. The slats have an angle of 35° and a high thickness of 2 mm. This 3D ventilation grille features a prominent flange of 20 mm. The full diameter of this model is 184 mm.
Parameter Value Unit
male diameter 144 mm
slat angle 35 °
slat thickness 2 mm
flange width 20 mm
central reinforcement no

Round air vent STL file ∅ 69.5 mm, slat angle: 30° (📦 #7130)

1 object(s) - format STL
Round air vent STL file ∅ 69.5 mm, slat angle: 30°
3D file of a round air vent for ventilation in STL format. Its male diameter measures 69.5 mm. The slats have a slight angle of 30° and a high thickness of 2.4 mm. This aeration grille features a prominent flange of 20 mm. The full diameter of the model is 109.5 mm.
Parameter Value Unit
male diameter 69.5 mm
slat angle 30 °
slat thickness 2.4 mm
flange width 20 mm
central reinforcement no

Round air vent STL file ∅ 150 mm, slat angle: 10° (📦 #3971)

1 object(s) - format STL
Round air vent STL file ∅ 150 mm, slat angle: 10°
Model of a round grille for air circulation in STL format. Its insertion diameter measures 150 mm. The slats have a slight angle of 10° and a high thickness of 2 mm. This vent cover features a collar of 10 mm. The total diameter of the model is 170 mm.
Parameter Value Unit
male diameter 150 mm
slat angle 10 °
slat thickness 2 mm
flange width 10 mm
central reinforcement no

Round air vent STL 3D file ∅ 96 mm, slat angle: 10° (📦 #1268)

1 object(s) - format STL
Round air vent STL 3D file ∅ 96 mm, slat angle: 10°
3D design of a round air vent for air circulation in STL format. Its insertion diameter measures 96 mm. The slats have a slight angle of 10° and a low thickness of 1.6 mm. This ventilation grille has a collar of 10 mm. The total diameter of this model is 116 mm.
Parameter Value Unit
male diameter 96 mm
slat angle 10 °
slat thickness 1.6 mm
flange width 10 mm
central reinforcement no

Round air vent STL file ∅ 80 mm, slat angle: 10° (📦 #4991)

1 object(s) - format STL
Round air vent STL file ∅ 80 mm, slat angle: 10°
3D file of a round air vent for ventilation in STL format. Its insertion diameter measures 80 mm. The slats have a slight angle of 10° and a high thickness of 2.4 mm. This 3D vent grille has a flange of 10 mm. The full diameter of this model is 100 mm.
Parameter Value Unit
male diameter 80 mm
slat angle 10 °
slat thickness 2.4 mm
flange width 10 mm
central reinforcement no

Round air vent STL file ∅ 125 mm, slat angle: 35° (📦 #3978)

1 object(s) - format STL
Round air vent STL file ∅ 125 mm, slat angle: 35°
Model of a round vent cover for ventilation in STL format. Its male diameter is 125 mm. The slats have an angle of 35° and a low thickness of 1.6 mm. This vent cover features a prominent flange of 20 mm. The total diameter of this model is 165 mm.
Parameter Value Unit
male diameter 125 mm
slat angle 35 °
slat thickness 1.6 mm
flange width 20 mm
central reinforcement no

Round air vent STL 3D file ∅ 85 mm, slat angle: 10° with central reinforcement (📦 #9734)

1 object(s) - format STL
Round air vent STL 3D file ∅ 85 mm, slat angle: 10° with central reinforcement
3D file of a round air vent for ventilation in STL format. Its male diameter is 85 mm. The slats have a slight angle of 10° and a high thickness of 2 mm. A centered vertical reinforcement reinforces the whole structure. This aeration grille has a prominent flange of 20 mm. The overall diameter of the model is 125 mm.
Parameter Value Unit
male diameter 85 mm
slat angle 10 °
slat thickness 2 mm
flange width 20 mm
central reinforcement yes

Round air vent STL 3D file ∅ 115 mm, slat angle: 10° with central reinforcement (📦 #2581)

1 object(s) - format STL
Round air vent STL 3D file ∅ 115 mm, slat angle: 10° with central reinforcement
Design of a round grille for ventilation in STL format. Its insertion diameter measures 115 mm. The slats have a slight angle of 10° and a high thickness of 2 mm. A centered vertical reinforcement secures the whole structure. This aeration grille has a prominent flange of 17 mm. The total diameter of the model is 149 mm.
Parameter Value Unit
male diameter 115 mm
slat angle 10 °
slat thickness 2 mm
flange width 17 mm
central reinforcement yes

Round air vent STL 3D file ∅ 130 mm, slat angle: 10° with central reinforcement (📦 #4961)

1 object(s) - format STL
Round air vent STL 3D file ∅ 130 mm, slat angle: 10° with central reinforcement
Design of a round air vent for air circulation in STL format. Its insertion diameter measures 130 mm. The slats have a slight angle of 10° and a high thickness of 2 mm. A vertical reinforcement secures the whole structure. This aeration grille has a prominent flange of 20 mm. The total diameter of the model is 170 mm.
Parameter Value Unit
male diameter 130 mm
slat angle 10 °
slat thickness 2 mm
flange width 20 mm
central reinforcement yes

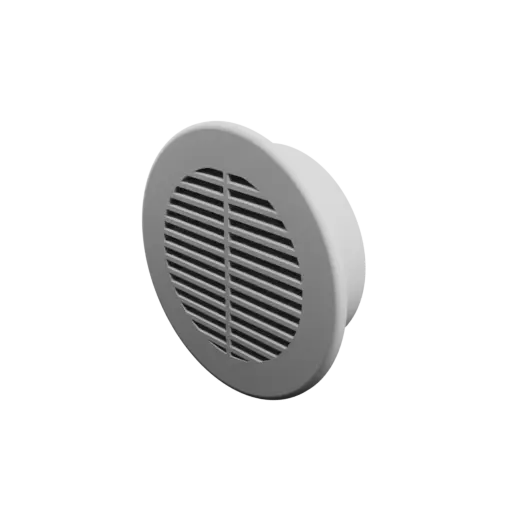

Round air vent STL file ∅ 67 mm, slat angle: 10° with central reinforcement (📦 #6995)
