Custom Round-to-Rectangular Tube Adapter STL file ⌀81 mm to 102×46 mm, thickness 3 mm + offset 📦#3573

STL Download STL 1
Create a new model:
from scratch search for a model
3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀81 mm and a rectangular section with internal dimensions 102×46 mm. The shell thickness is 3 mm and the total length is 100 mm. The adapter has an offset of 25 mm along the Y axis and 25 mm along the Z axis.
Generation date: 2025-11-23
3D Model Round-to-Rectangular Tube Adapter STL file ⌀81 mm to 102×46 mm, thickness 3 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model3573-nb0_dd{id}.stl : 2.1 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 81 mm (≃3 3/16 in)
#2 cylinder inlet length 20 mm (≃0.79 in)
#3 rectangle internal length 102 mm (≃4.02 in)
#4 rectangle internal height 46 mm (≃1 13/16 in)
#5 rectangle inlet length 30 mm (≃1 3/16 in)
#6 offset Z 25 mm (≃0.98 in)
#7 offset Y 25 mm (≃0.98 in)
#8 total length 100 mm (≃3 15/16 in)
#9 thickness 3 mm (≃1/8 in)
#10 chamfer no chamfer
Metadata Value
Cylinder internal diameter 75 mm (≃2 15/16 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha

Related 3D models

To search for a model based on your own parameters, go to the template page Round to rectangular adapter

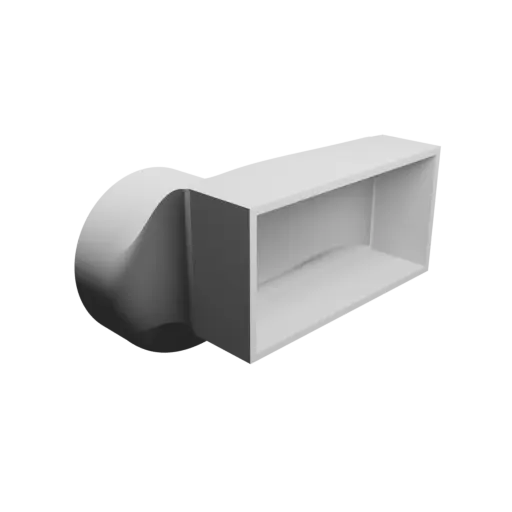

Round-to-Rectangular Tube Adapter STL file ⌀81 mm to 108×52 mm, thickness 3 mm + offset (📦 #3572)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀81 mm to 108×52 mm, thickness 3 mm + offset
Download this 3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀81 mm and a rectangular section with internal dimensions 108×52 mm. The wall thickness is 3 mm and the overall length is 100 mm. The adapter has an offset of 25 mm along the Y axis and 25 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 81 mm
cylinder inlet length 20 mm
rectangle internal length 108 mm
rectangle internal height 52 mm
rectangle inlet length 30 mm
offset Z 25 mm
offset Y 25 mm
total length 100 mm
thickness 3 mm
chamfer no chamfer

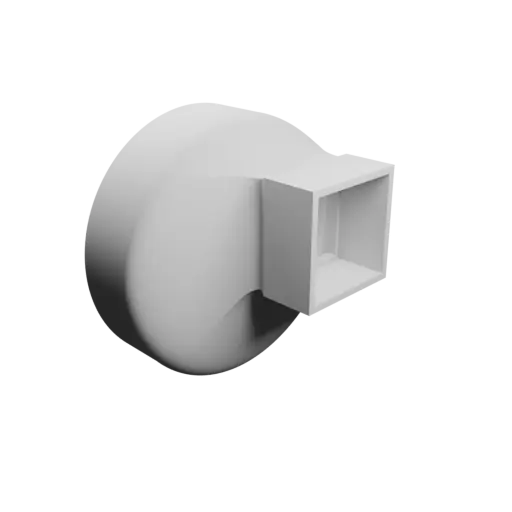

Round-to-Rectangular Tube Adapter STL 3D file ⌀120 mm to 45×45 mm, thickness 3 mm + offset (📦 #3894)
