Custom Tubing adapter STL file ⌀ 148–98 mm (Length: 100 mm) 📦#3537

STL Download STL 1
Create a new model:
from scratch search for a model
Straight tube coupler ⌀148 mm to ⌀98 mm in STL format. Total length of this connector is 100 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends are rounded on the outside to facilitate the connection of the two tubes.
Generation date: 2025-11-22
3D Model Tubing adapter STL file ⌀ 148–98 mm (Length: 100 mm)

3D model download

Free
  • inline-tube-adapter-lenA30mm-d_model3537-nb0_dd{id}.stl : 7.1 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 30 mm (≃1 3/16 in)
#2 side A outer diameter 148 mm (≃5 13/16 in)
#3 side A thickness 3 mm (≃1/8 in)
#4 side B length 30 mm (≃1 3/16 in)
#5 side B outer diameter 98 mm (≃3.86 in)
#6 side B thickness 3 mm (≃1/8 in)
#7 transition length 40 mm (≃1 9/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on the outside
Metadata Value
inner diameter (side A) 142 mm (≃5.59 in)
inner diameter (side B) 92 mm (≃3 5/8 in)
total length 100 mm (≃3 15/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL file ⌀ 150–100 mm (Length: 100 mm) (📦 #2728)

1 object(s) - format STL
Tube adapter STL file ⌀ 150–100 mm (Length: 100 mm)
Straight tube fitting ⌀150 mm to ⌀100 mm in STL 3D format. Length of this adapter is 100 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 20 mm, the smaller one of 30 mm. The ends have no fillet.
Parameter Value Unit
side A length 20 mm
side A outer diameter 150 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 100 mm
side B thickness 3 mm
transition length 50 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 158–118 mm (Length: 90 mm) (📦 #2318)

1 object(s) - format STL
Tube adapter STL file ⌀ 158–118 mm (Length: 90 mm)
Inline fitting ⌀158 mm to ⌀118 mm in STL format. Final length of this connector is 90 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 30 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 30 mm
side A outer diameter 158 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 118 mm
side B thickness 3 mm
transition length 30 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 116–100 mm (Length: 90 mm) (📦 #2153)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 116–100 mm (Length: 90 mm)
Straight tube fitting ⌀116 mm to ⌀100 mm in STL format. Final length of this reducer is 90 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 30 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 30 mm
side A outer diameter 116 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 100 mm
side B thickness 3 mm
transition length 30 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 153–126 mm (Length: 100 mm) (📦 #2777)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 153–126 mm (Length: 100 mm)
Straight tube reducer ⌀153 mm to ⌀126 mm in STL format. Length of this coupler is 100 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 20 mm. The ends are raw.
Parameter Value Unit
side A length 30 mm
side A outer diameter 153 mm
side A thickness 3 mm
side B length 20 mm
side B outer diameter 126 mm
side B thickness 3 mm
transition length 50 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 120–90 mm (Length: 75 mm) (📦 #1164)

1 object(s) - format STL
Tube adapter STL file ⌀ 120–90 mm (Length: 75 mm)
Inline tube junction ⌀120 mm to ⌀90 mm in STL 3D format. Total length of this fitting is 75 mm. The larger-diameter tube has a thickness of 4 mm and a length of 25 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 30 mm. The ends have a fillet on the outside to make tube connection easier.
Parameter Value Unit
side A length 25 mm
side A outer diameter 120 mm
side A thickness 4 mm
side B length 30 mm
side B outer diameter 90 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on th...

Tubing adapter STL file ⌀ 150–131 mm (Length: 75 mm) (📦 #3019)

1 object(s) - format STL
Tubing adapter STL file ⌀ 150–131 mm (Length: 75 mm)
Inline tube coupler ⌀150 mm to ⌀131 mm in STL 3D format. Length of this junction is 75 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 25 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 25 mm
side A outer diameter 150 mm
side A thickness 3 mm
side B length 25 mm
side B outer diameter 131 mm
side B thickness 3 mm
transition length 25 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL file ⌀ 147–134 mm (Length: 75 mm) (📦 #3029)

1 object(s) - format STL
Tubing adapter STL file ⌀ 147–134 mm (Length: 75 mm)
Inline sleeve ⌀147 mm to ⌀134 mm in STL format. Length of this coupler is 75 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 25 mm as well. The ends are not rounded.
Parameter Value Unit
side A length 25 mm
side A outer diameter 147 mm
side A thickness 3 mm
side B length 25 mm
side B outer diameter 134 mm
side B thickness 3 mm
transition length 25 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 106–70 mm (Length: 90 mm) (📦 #2795)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 106–70 mm (Length: 90 mm)
Straight tube coupler ⌀106 mm to ⌀70 mm in STL 3D format. Total length of this sleeve is 90 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 30 mm
side A outer diameter 106 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 70 mm
side B thickness 3 mm
transition length 30 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 150–96 mm (Length: 150 mm) (📦 #1468)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 150–96 mm (Length: 150 mm)
Straight sleeve ⌀150 mm to ⌀96 mm in STL format. Length of this junction is 150 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 50 mm, the smaller one of 50 mm as well. The ends have no fillet.
Parameter Value Unit
side A length 50 mm
side A outer diameter 150 mm
side A thickness 3 mm
side B length 50 mm
side B outer diameter 96 mm
side B thickness 3 mm
transition length 50 mm
axis offset 0 mm
ends fillet no fillet

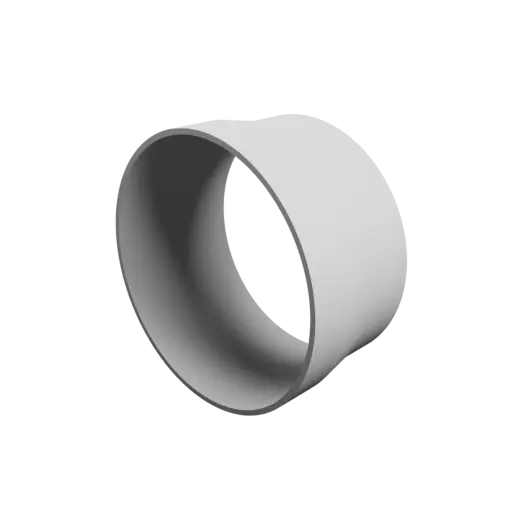

Tube adapter STL 3D file ⌀ 147–138 mm (Length: 75 mm) (📦 #3044)
