Custom Multi-compartment box STL 3D file: 8 compartments of 100×100×60 mm 📦#3511

STL Download STL 1
Create a new model advanced
from scratch search for a model
This 3D model in STL format includes 8 cavities measuring 100×100×60mm each. Overall dimensions are 104×818×62mm. The compartments are not equipped with any fillet.
Generation date: 2025-11-21
3D Model Multi-compartment box STL 3D file: 8 compartments of 100×100×60 mm

3D model download

Free
  • multi-compartment-storage-box-_model3511-nb0_dd{id}.stl : 107.7 Ko
STL Mesh quality : Linear deflection 0.5 Angular deflection 0.3
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Multi-compartment storage box template, with the following values:
Parameter Value
#1 number of rows 8
#2 number of columns 1
#3 compartment length 100 mm (≃3 15/16 in)
#4 compartment width 100 mm (≃3 15/16 in)
#5 compartment height 60 mm (≃2 3/8 in)
#6 wall thickness 2 mm (≃0.08 in)
#7 compartment fillet (radius) 0 mm (0 in)
Metadata Value
total length 104 mm (≃4.09 in)
total width 818 mm (≃32.20 in)
total height 62 mm (≃2 7/16 in)
number of slots 8
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 number of rows nbR
#2 number of columns nbC
#3 compartment length coL
#4 compartment width coW
#5 compartment height coH
#6 wall thickness waT
#7 compartment fillet (radius) coF

Related 3D models

To search for a model based on your own parameters, go to the template page Multi-compartment storage box

Multi-compartment box STL file: 16 compartments of 100×100×60 mm (📦 #3643)

1 object(s) - format STL
Multi-compartment box STL file: 16 compartments of 100×100×60 mm
This 3D model in STL format includes 16 storage spaces measuring 100×100×60mm each. The total dimensions are 206×818×62mm. The cavities do not feature any fillet.
Parameter Value Unit
number of rows 8
number of columns 2
compartment length 100 mm
compartment width 100 mm
compartment height 60 mm
wall thickness 2 mm
compartment fillet (radius) 0 mm

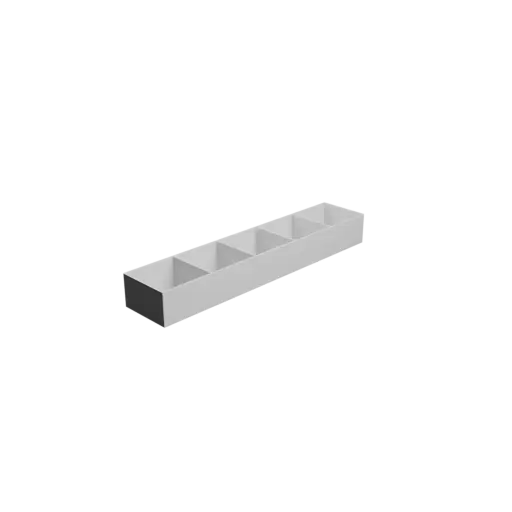

Multi-compartment box STL file: 5 compartments of 100×100×60 mm (📦 #3510)
