Custom Tube adapter STL file ⌀ 64–60 mm (Length: 50 mm) 📦#3467

STL Download STL 1
Create a new model:
from scratch search for a model
Tube adapter ⌀64 mm to ⌀60 mm in STL format. Length of this reducer is 50 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 20 mm, the smaller one of 20 mm as well. The ends are raw.
Generation date: 2025-11-20
3D Model Tube adapter STL file ⌀ 64–60 mm (Length: 50 mm)

3D model download

Free
  • inline-tube-adapter-lenA20mm-d_model3467-nb0_dd{id}.stl : 648.7 Ko
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 20 mm (≃0.79 in)
#2 side A outer diameter 64 mm (≃2.52 in)
#3 side A thickness 2 mm (≃0.08 in)
#4 side B length 20 mm (≃0.79 in)
#5 side B outer diameter 60 mm (≃2 3/8 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 10 mm (≃0.39 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 60 mm (≃2 3/8 in)
inner diameter (side B) 56 mm (≃2.20 in)
total length 50 mm (≃1.97 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL file ⌀ 80–60 mm (Length: 60 mm) (📦 #1882)

1 object(s) - format STL
Tube adapter STL file ⌀ 80–60 mm (Length: 60 mm)
Tube connector ⌀80 mm to ⌀60 mm in STL 3D format. Final length of this connector is 60 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 20 mm, the smaller one of 20 mm as well. The ends are raw.
Parameter Value Unit
side A length 20 mm
side A outer diameter 80 mm
side A thickness 2 mm
side B length 20 mm
side B outer diameter 60 mm
side B thickness 2 mm
transition length 20 mm
axis offset 0 mm
ends fillet no fillet

Tubing adapter STL 3D file ⌀ 65–47 mm (Length: 80 mm) (📦 #3046)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 65–47 mm (Length: 80 mm)
Straight tube fitting ⌀65 mm to ⌀47 mm in STL format. Length of this adapter is 80 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 30 mm as well. The ends are raw.
Parameter Value Unit
side A length 30 mm
side A outer diameter 65 mm
side A thickness 2 mm
side B length 30 mm
side B outer diameter 47 mm
side B thickness 2 mm
transition length 20 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 90–80 mm (Length: 48 mm) (📦 #3260)

1 object(s) - format STL
Tube adapter STL file ⌀ 90–80 mm (Length: 48 mm)
Straight tube adapter ⌀90 mm to ⌀80 mm in STL 3D format. Final length of this coupler is 48 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 18 mm, the smaller one of 25 mm. The ends have no fillet.
Parameter Value Unit
side A length 18 mm
side A outer diameter 90 mm
side A thickness 2 mm
side B length 25 mm
side B outer diameter 80 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 104–60 mm (Length: 40 mm) (📦 #2607)

1 object(s) - format STL
Tube adapter STL file ⌀ 104–60 mm (Length: 40 mm)
Tube fitting ⌀104 mm to ⌀60 mm in STL 3D format. Total length of this reducer is 40 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 15 mm, the smaller one of 15 mm as well. The ends are raw.
Parameter Value Unit
side A length 15 mm
side A outer diameter 104 mm
side A thickness 2 mm
side B length 15 mm
side B outer diameter 60 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL file ⌀ 90–82 mm (Length: 48 mm) (📦 #3261)

1 object(s) - format STL
Tube adapter STL file ⌀ 90–82 mm (Length: 48 mm)
Inline tube reducer ⌀90 mm to ⌀82 mm in STL 3D format. Length of this sleeve is 48 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 18 mm, the smaller one of 25 mm. The ends have no fillet.
Parameter Value Unit
side A length 18 mm
side A outer diameter 90 mm
side A thickness 2 mm
side B length 25 mm
side B outer diameter 82 mm
side B thickness 2 mm
transition length 5 mm
axis offset 0 mm
ends fillet no fillet

Tube adapter STL 3D file ⌀ 70–49 mm (Length: 85 mm) (📦 #2632)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 70–49 mm (Length: 85 mm)
Inline tubing adapter ⌀70 mm to ⌀49 mm in STL 3D format. Length of this connector is 85 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends are raw.
Parameter Value Unit
side A length 30 mm
side A outer diameter 70 mm
side A thickness 2 mm
side B length 30 mm
side B outer diameter 49 mm
side B thickness 2 mm
transition length 25 mm
axis offset 0 mm
ends fillet no fillet

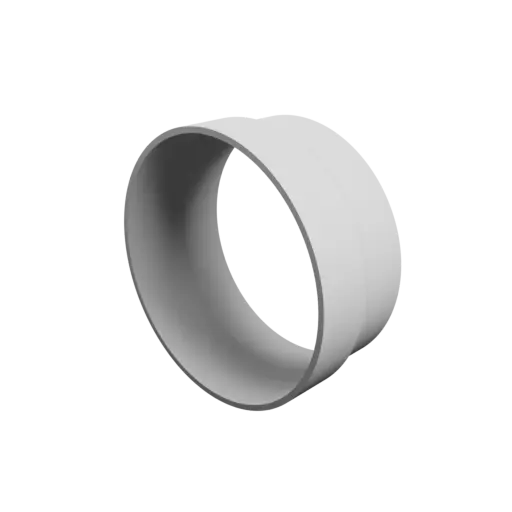

Tubing adapter STL file ⌀ 90–85 mm (Length: 39 mm) (📦 #3259)
