Custom Protective grid STL file, 71x30mm, mesh: 3mm 📦#3344
Generation date: 2025-11-16
3D model download
Free- honeycomb-grid-loc71mm-woc30mm_model3344-nb0_dd{id}.stl : 239.7 Ko
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 71 mm (≃2.80 in) |
| #2 | width or center-to-center | 30 mm (≃1 3/16 in) |
| #3 | mesh size | 3 mm (≃1/8 in) |
| #4 | dual color | no |
| #5 | holes | no |
| #6 | hole diameter | - |
| Metadata | Value |
|---|---|
| total length | 71 mm (≃2.80 in) |
| total width | 30 mm (≃1 3/16 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard
Protective grid STL file, 70x46mm, mesh: 4mm (📦 #3342)
1 object(s) - format STL
3D honeycomb rectangular grid model in STL format. The overall size is 70x46 mm, with standard 4 mm cell size for balanced airflow and protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 70 | mm |
| width or center-to-center | 46 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 32x32mm, mesh: 3mm (📦 #2724)
1 object(s) - format STL (4.0/5) 1 vote(s)
Download this square grid model in STL format. The overall size is 32x32 mm, with extra fine 3 mm cell size for strong protection. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 32 | mm |
| width or center-to-center | 32 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 80x32mm, mesh: 5mm (📦 #3126)
1 object(s) - format STL
Download this honeycomb protective rectangular grid file in STL format. The overall size is 80x32 mm, with regular 5 mm cell size for versatile use. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 80 | mm |
| width or center-to-center | 32 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 61x50mm, mesh: 5mm (📦 #3324)
1 object(s) - format STL
Download this honeycomb rectangular grid file in STL format. The overall size is 61x50 mm, with regular 5 mm cell size for balanced airflow and protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 61 | mm |
| width or center-to-center | 50 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL 3D file, 90x90mm, mesh: 3mm (📦 #2972)
1 object(s) - format STL
3D square honeycomb grid model as a STL file. The overall size is 90x90 mm, with very fine 3 mm cell size for maximum protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 90 | mm |
| width or center-to-center | 90 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL 3D file, 100x100mm, mesh: 3mm (📦 #3100)
1 object(s) - format STL
3D square protective honeycomb grid model as a STL file. The overall size is 100x100 mm, with extra fine 3 mm cell size for strong protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 140x30mm, mesh: 5mm (📦 #3130)
1 object(s) - format STL
Download this honeycomb protective rectangular grid as a STL file. The overall size is 140x30 mm, with standard 5 mm cell size for versatile use. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 140 | mm |
| width or center-to-center | 30 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 50x35mm, mesh: 6mm (📦 #3436)
1 object(s) - format STL
Rectangular protective grid model in STL format. The overall size is 50x35 mm, with large 6 mm cell size to enhance ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 50 | mm |
| width or center-to-center | 35 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | no |
Protective grid STL 3D file, 120x105mm, mesh: 4mm (📦 #3330)
1 object(s) - format STL
Download this rectangular grid file in STL format. The overall size is 120x105 mm, with medium 4 mm cell size for versatile use. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | no |
Protective grid STL 3D file, 110x62mm, mesh: 6mm (📦 #2851)
1 object(s) - format STL
Download this 3D rectangular grid model in STL format. The overall size is 110x62 mm, with large 6 mm cell size for optimal air circulation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 110 | mm |
| width or center-to-center | 62 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 110x110mm, mesh: 5mm (📦 #2855)
1 object(s) - format STL
Square grid file in STL format. The overall size is 110x110 mm, with regular 5 mm cell size for versatile use. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 110 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 50x35mm, mesh: 8mm (📦 #3437)
1 object(s) - format STL
Rectangular protective grid model as a STL file. The overall size is 50x35 mm, with large 8 mm cell size to enhance ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 50 | mm |
| width or center-to-center | 35 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL file, 178x127mm, mesh: 5mm (📦 #3306)
1 object(s) - format STL
Rectangular protective honeycomb grid file in STL format. The overall size is 178x127 mm, with standard 5 mm cell size for balanced airflow and protection. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 178 | mm |
| width or center-to-center | 127 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL file, 180x134mm, mesh: 5mm (📦 #3127)
1 object(s) - format STL
Rectangular protective grid model in STL format. The overall size is 180x134 mm, with medium 5 mm cell size for versatile use. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 134 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 250x55mm, mesh: 5mm (📦 #3022)
1 object(s) - format STL
Download this 3D rectangular protective grid as a STL file. The overall size is 250x55 mm, with medium 5 mm cell size for versatile use. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 55 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, center-to-center: 30x30mm, mesh: 3mm - Ø3mm (📦 #3381)
1 object(s) - format STL
3D square honeycomb grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 30x30 mm), each with a diameter of Ø3 mm. The overall dimensions reach 36x36 mm, with extra fine 3 mm cell size for strong protection. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 30 | mm |
| width or center-to-center | 30 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Protective grid STL 3D file, center-to-center: 38x38mm, mesh: 5mm - Ø3mm (📦 #3420)
1 object(s) - format STL
3D fan guard file in STL format. Mounting holes are placed at the four corners (center-to-center 38x38 mm), each with a diameter of Ø3 mm. The overall dimensions reach 44x44 mm, with regular 5 mm cell size for balanced airflow and protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 38 | mm |
| width or center-to-center | 38 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL 3D file, center-to-center: 37x37mm, mesh: 5mm - Ø3mm (📦 #3027)
1 object(s) - format STL (5.0/5) 1 vote(s)
Download this 3D honeycomb protective square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 37x37 mm), each with a diameter of Ø3 mm. The overall dimensions reach 43x43 mm, with standard 5 mm cell size for balanced airflow and protection. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 37 | mm |
| width or center-to-center | 37 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL file, 160x160mm, mesh: 6mm (📦 #3442)
1 object(s) - format STL
3D square protective grid file in STL format. The overall size is 160x160 mm, with large 6 mm cell size to enhance ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 160 | mm |
| width or center-to-center | 160 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | no |
Protective grid STL 3D file, center-to-center: 42x42mm, mesh: 4mm - Ø4mm (📦 #3300)
1 object(s) - format STL
Download this honeycomb square grid as a STL file. Mounting holes are placed at the four corners (center-to-center 42x42 mm), each with a diameter of Ø4 mm. The overall dimensions reach 50x50 mm, with medium 4 mm cell size for balanced airflow and protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 42 | mm |
| width or center-to-center | 42 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL file, center-to-center: 77x62mm, mesh: 4mm - Ø4mm (📦 #3338)
1 object(s) - format STL
Honeycomb rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 77x62 mm), each with a diameter of Ø4 mm. The overall dimensions reach 85x70 mm, with regular 4 mm cell size for versatile use. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 77 | mm |
| width or center-to-center | 62 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, center-to-center: 80x62mm, mesh: 4mm - Ø4mm (📦 #3339)
1 object(s) - format STL
Honeycomb rectangular grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 80x62 mm), each with a diameter of Ø4 mm. The overall dimensions reach 88x70 mm, with medium 4 mm cell size for balanced airflow and protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 80 | mm |
| width or center-to-center | 62 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Protective grid STL 3D file, center-to-center: 32x32mm, mesh: 4mm - Ø4mm (📦 #3279)
1 object(s) - format STL
Square protective grid model in STL format. Mounting holes are placed at the four corners (center-to-center 32x32 mm), each with a diameter of Ø4 mm. The overall dimensions reach 40x40 mm, with standard 4 mm cell size for versatile use. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 32 | mm |
| width or center-to-center | 32 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL 3D file, center-to-center: 105x105mm, mesh: 3mm - Ø3mm (📦 #3125)
1 object(s) - format STL
Download this fan guard as a STL file. Mounting holes are placed at the four corners (center-to-center 105x105 mm), each with a diameter of Ø3 mm. The overall dimensions reach 111x111 mm, with very fine 3 mm cell size for high protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 105 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL 3D file, center-to-center: 100x100mm, mesh: 5mm - Ø3mm (📦 #2951)
1 object(s) - format STL
3D square protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 100x100 mm), each with a diameter of Ø3 mm. The overall dimensions reach 106x106 mm, with medium 5 mm cell size for balanced airflow and protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |

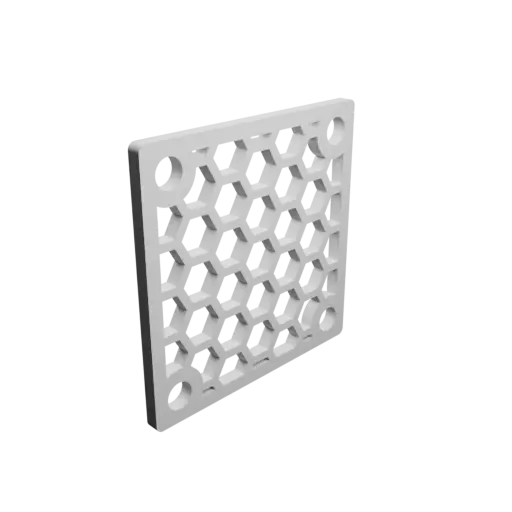

Honeycomb grille STL 3D file, center-to-center: 30x30mm, mesh: 5mm - Ø4mm (📦 #3434)
