Custom Protective grid STL file, 61x50mm, mesh: 5mm 📦#3324
Generation date: 2025-11-16
3D model download
Free- honeycomb-grid-loc61mm-woc50mm_model3324-nb0_dd{id}.stl : 176.3 Ko
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 61 mm (≃2.40 in) |
| #2 | width or center-to-center | 50 mm (≃1.97 in) |
| #3 | mesh size | 5 mm (≃3/16 in) |
| #4 | dual color | no |
| #5 | holes | no |
| #6 | hole diameter | - |
| Metadata | Value |
|---|---|
| total length | 61 mm (≃2.40 in) |
| total width | 50 mm (≃1.97 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard
Protective grid STL file, 80x32mm, mesh: 5mm (📦 #3126)
1 object(s) - format STL
Download this honeycomb protective rectangular grid file in STL format. The overall size is 80x32 mm, with regular 5 mm cell size for versatile use. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 80 | mm |
| width or center-to-center | 32 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 70x46mm, mesh: 4mm (📦 #3342)
1 object(s) - format STL
3D honeycomb rectangular grid model in STL format. The overall size is 70x46 mm, with standard 4 mm cell size for balanced airflow and protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 70 | mm |
| width or center-to-center | 46 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | no |

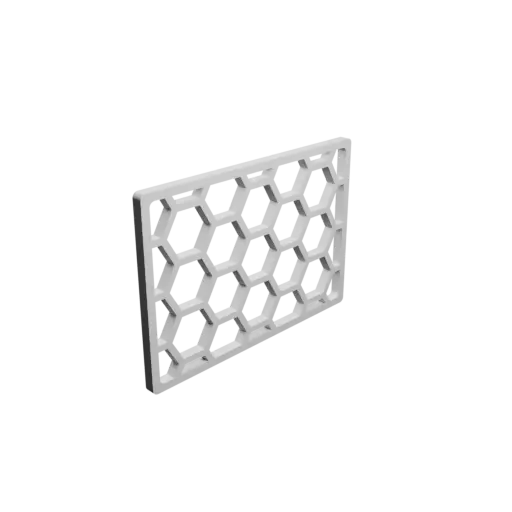

Honeycomb grille STL file, 50x35mm, mesh: 6mm (📦 #3436)
1 object(s) - format STL
Rectangular protective grid model in STL format. The overall size is 50x35 mm, with large 6 mm cell size to enhance ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 50 | mm |
| width or center-to-center | 35 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | no |
Protective grid STL 3D file, 110x62mm, mesh: 6mm (📦 #2851)
1 object(s) - format STL
Download this 3D rectangular grid model in STL format. The overall size is 110x62 mm, with large 6 mm cell size for optimal air circulation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 110 | mm |
| width or center-to-center | 62 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 71x30mm, mesh: 3mm (📦 #3344)
1 object(s) - format STL
3D rectangular grid model as a STL file. The overall size is 71x30 mm, with very fine 3 mm cell size for strong protection. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 71 | mm |
| width or center-to-center | 30 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 32x32mm, mesh: 3mm (📦 #2724)
1 object(s) - format STL (4.0/5) 1 vote(s)
Download this square grid model in STL format. The overall size is 32x32 mm, with extra fine 3 mm cell size for strong protection. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 32 | mm |
| width or center-to-center | 32 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 140x30mm, mesh: 5mm (📦 #3130)
1 object(s) - format STL
Download this honeycomb protective rectangular grid as a STL file. The overall size is 140x30 mm, with standard 5 mm cell size for versatile use. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 140 | mm |
| width or center-to-center | 30 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL 3D file, 90x90mm, mesh: 3mm (📦 #2972)
1 object(s) - format STL
3D square honeycomb grid model as a STL file. The overall size is 90x90 mm, with very fine 3 mm cell size for maximum protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 90 | mm |
| width or center-to-center | 90 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 110x110mm, mesh: 5mm (📦 #2855)
1 object(s) - format STL
Square grid file in STL format. The overall size is 110x110 mm, with regular 5 mm cell size for versatile use. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 110 | mm |
| width or center-to-center | 110 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Protective grid STL 3D file, 120x105mm, mesh: 4mm (📦 #3330)
1 object(s) - format STL
Download this rectangular grid file in STL format. The overall size is 120x105 mm, with medium 4 mm cell size for versatile use. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL 3D file, 100x100mm, mesh: 3mm (📦 #3100)
1 object(s) - format STL
3D square protective honeycomb grid model as a STL file. The overall size is 100x100 mm, with extra fine 3 mm cell size for strong protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 3 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 50x35mm, mesh: 8mm (📦 #3437)
1 object(s) - format STL
Rectangular protective grid model as a STL file. The overall size is 50x35 mm, with large 8 mm cell size to enhance ventilation. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 50 | mm |
| width or center-to-center | 35 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL file, 178x127mm, mesh: 5mm (📦 #3306)
1 object(s) - format STL
Rectangular protective honeycomb grid file in STL format. The overall size is 178x127 mm, with standard 5 mm cell size for balanced airflow and protection. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 178 | mm |
| width or center-to-center | 127 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL file, 180x134mm, mesh: 5mm (📦 #3127)
1 object(s) - format STL
Rectangular protective grid model in STL format. The overall size is 180x134 mm, with medium 5 mm cell size for versatile use. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 134 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Protective grid STL file, 80x80mm, mesh: 10mm (📦 #3040)
1 object(s) - format STL
Honeycomb protective square grid file in STL format. The overall size is 80x80 mm, with extra wide 10 mm cell size for peak ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 80 | mm |
| width or center-to-center | 80 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 160x160mm, mesh: 6mm (📦 #3442)
1 object(s) - format STL
3D square protective grid file in STL format. The overall size is 160x160 mm, with large 6 mm cell size to enhance ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 160 | mm |
| width or center-to-center | 160 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 101x101mm, mesh: 10mm (📦 #3033)
1 object(s) - format STL
Download this square protective grid model in STL format. The overall size is 101x101 mm, with very open 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 101 | mm |
| width or center-to-center | 101 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL file, 200x100mm, mesh: 8mm (📦 #3194)
1 object(s) - format STL
3D rectangular protective honeycomb grid model in STL format. The overall size is 200x100 mm, with open 8 mm cell size to maximize airflow. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | no |

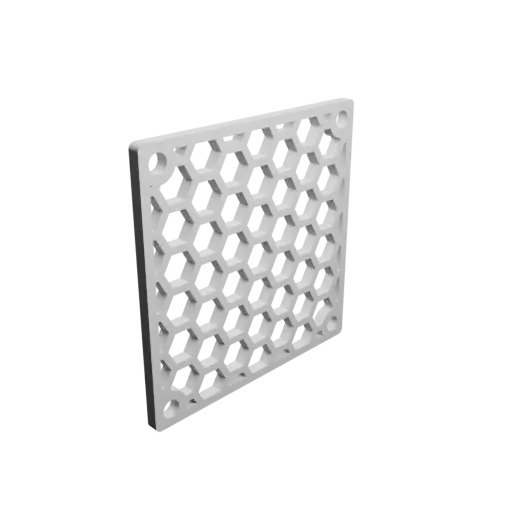

Protective grid STL 3D file, center-to-center: 38x38mm, mesh: 5mm - Ø3mm (📦 #3420)
1 object(s) - format STL
3D fan guard file in STL format. Mounting holes are placed at the four corners (center-to-center 38x38 mm), each with a diameter of Ø3 mm. The overall dimensions reach 44x44 mm, with regular 5 mm cell size for balanced airflow and protection. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 38 | mm |
| width or center-to-center | 38 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL 3D file, center-to-center: 37x37mm, mesh: 5mm - Ø3mm (📦 #3027)
1 object(s) - format STL (5.0/5) 1 vote(s)
Download this 3D honeycomb protective square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 37x37 mm), each with a diameter of Ø3 mm. The overall dimensions reach 43x43 mm, with standard 5 mm cell size for balanced airflow and protection. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 37 | mm |
| width or center-to-center | 37 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Protective grid STL file, 250x55mm, mesh: 5mm (📦 #3022)
1 object(s) - format STL
Download this 3D rectangular protective grid as a STL file. The overall size is 250x55 mm, with medium 5 mm cell size for versatile use. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 55 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grid STL 3D file, center-to-center: 100x100mm, mesh: 5mm - Ø3mm (📦 #2951)
1 object(s) - format STL
3D square protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 100x100 mm), each with a diameter of Ø3 mm. The overall dimensions reach 106x106 mm, with medium 5 mm cell size for balanced airflow and protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 100 | mm |
| width or center-to-center | 100 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |

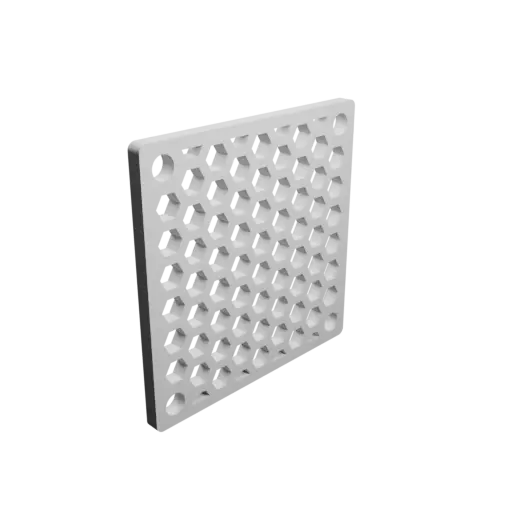

Honeycomb grille STL file, center-to-center: 30x30mm, mesh: 3mm - Ø3mm (📦 #3381)
