Custom Tubing adapter STL 3D file ⌀ 67–50 mm (Length: 80 mm) 📦#3297

STL Download STL
Create a new model:
from scratch search for a model
Inline sleeve ⌀67 mm to ⌀50 mm in STL 3D format. Length of this fitting is 80 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends feature a fillet to make tube connection easier.
Generation date: 2025-11-15
3D Model Tubing adapter STL 3D file ⌀ 67–50 mm (Length: 80 mm)

3D model download

Free
  • inline-tube-adapter-lenA30mm-d_model3297-nb0_dd{id}.stl : 9.3 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 30 mm (≃1 3/16 in)
#2 side A outer diameter 67 mm (≃2 5/8 in)
#3 side A thickness 3 mm (≃1/8 in)
#4 side B length 30 mm (≃1 3/16 in)
#5 side B outer diameter 50 mm (≃1.97 in)
#6 side B thickness 3 mm (≃1/8 in)
#7 transition length 20 mm (≃0.79 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on both inside
and outside
Metadata Value
inner diameter (side A) 61 mm (≃2.40 in)
inner diameter (side B) 44 mm (≃1.73 in)
total length 80 mm (≃3.15 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL file ⌀ 51–35 mm (Length: 80 mm) (📦 #1290)

1 object(s) - format STL
Tube adapter STL file ⌀ 51–35 mm (Length: 80 mm)
Tube reducer ⌀51 mm to ⌀35 mm in STL 3D format. Length of this adapter is 80 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 30 mm as well. The ends have a fillet.
Parameter Value Unit
side A length 30 mm
side A outer diameter 51 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 35 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on bo...

Tube adapter STL 3D file ⌀ 80–35 mm (Length: 90 mm) (📦 #1764)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 80–35 mm (Length: 90 mm)
Inline tube coupler ⌀80 mm to ⌀35 mm in STL format. Total length of this adapter is 90 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 40 mm, the smaller one of 30 mm. The ends have a fillet to make tube connection easier.
Parameter Value Unit
side A length 40 mm
side A outer diameter 80 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 35 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on bo...

Tubing adapter STL 3D file ⌀ 60–49 mm (Length: 55 mm) (📦 #2988)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 60–49 mm (Length: 55 mm)
Inline sleeve ⌀60 mm to ⌀49 mm in STL 3D format. Final length of this coupler is 55 mm. The thickness of the tubes is identical: 2.5 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 25 mm as well. The ends are rounded.
Parameter Value Unit
side A length 25 mm
side A outer diameter 60 mm
side A thickness 2.5 mm
side B length 25 mm
side B outer diameter 49 mm
side B thickness 2.5 mm
transition length 5 mm
axis offset 0 mm
ends fillet fillet on bo...

Tubing adapter STL 3D file ⌀ 60–51 mm (Length: 55 mm) (📦 #2994)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 60–51 mm (Length: 55 mm)
Straight sleeve ⌀60 mm to ⌀51 mm in STL format. Final length of this sleeve is 55 mm. The thickness of the tubes is identical: 2.5 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 25 mm as well. The ends feature a fillet.
Parameter Value Unit
side A length 25 mm
side A outer diameter 60 mm
side A thickness 2.5 mm
side B length 25 mm
side B outer diameter 51 mm
side B thickness 2.5 mm
transition length 5 mm
axis offset 0 mm
ends fillet fillet on bo...

Tube adapter STL 3D file ⌀ 35–34 mm (Length: 100 mm) (📦 #2033)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 35–34 mm (Length: 100 mm)
Tube reducer ⌀35 mm to ⌀34 mm in STL 3D format. Final length of this adapter is 100 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 40 mm, the smaller one of 40 mm as well. The ends feature a fillet.
Parameter Value Unit
side A length 40 mm
side A outer diameter 35 mm
side A thickness 3 mm
side B length 40 mm
side B outer diameter 34 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on bo...

Tube adapter STL 3D file ⌀ 35–30 mm (Length: 55 mm) (📦 #2189)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 35–30 mm (Length: 55 mm)
Inline tube junction ⌀35 mm to ⌀30 mm in STL format. Total length of this adapter is 55 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 20 mm, the smaller one of 20 mm as well. The ends feature a fillet to make tube connection easier.
Parameter Value Unit
side A length 20 mm
side A outer diameter 35 mm
side A thickness 3 mm
side B length 20 mm
side B outer diameter 30 mm
side B thickness 3 mm
transition length 15 mm
axis offset 0 mm
ends fillet fillet on bo...

Tube adapter STL 3D file ⌀ 35–29 mm (Length: 55 mm) (📦 #2197)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 35–29 mm (Length: 55 mm)
Inline tube reducer ⌀35 mm to ⌀29 mm in STL 3D format. Final length of this junction is 55 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 20 mm, the smaller one of 20 mm as well. The ends feature a fillet to facilitate the connection of the two tubes.
Parameter Value Unit
side A length 20 mm
side A outer diameter 35 mm
side A thickness 3 mm
side B length 20 mm
side B outer diameter 29 mm
side B thickness 3 mm
transition length 15 mm
axis offset 0 mm
ends fillet fillet on bo...

Tubing adapter STL 3D file ⌀ 64–32 mm (Length: 80 mm) (📦 #2791)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 64–32 mm (Length: 80 mm)
Inline tubing adapter ⌀64 mm to ⌀32 mm in STL 3D format. Total length of this reducer is 80 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 30 mm as well. The ends have a fillet on the inside to ease the connection.
Parameter Value Unit
side A length 30 mm
side A outer diameter 64 mm
side A thickness 3 mm
side B length 30 mm
side B outer diameter 32 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL file ⌀ 72–33 mm (Length: 48 mm) (📦 #2709)

1 object(s) - format STL
Tube adapter STL file ⌀ 72–33 mm (Length: 48 mm)
Tube reducer ⌀72 mm to ⌀33 mm in STL format. Length of this connector is 48 mm. The thickness of the tubes is identical: 3.2 mm. The larger-diameter tube has a length of 20 mm, the smaller one of 8 mm. The ends feature a fillet to facilitate the connection of the two tubes.
Parameter Value Unit
side A length 20 mm
side A outer diameter 72 mm
side A thickness 3.2 mm
side B length 8 mm
side B outer diameter 33 mm
side B thickness 3.2 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on bo...

Tube adapter STL file ⌀ 82–63 mm (Length: 75 mm) (📦 #2117)

1 object(s) - format STL
Tube adapter STL file ⌀ 82–63 mm (Length: 75 mm)
Straight sleeve ⌀82 mm to ⌀63 mm in STL format. Length of this junction is 75 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 25 mm as well. The ends have a fillet on the inside.
Parameter Value Unit
side A length 25 mm
side A outer diameter 82 mm
side A thickness 3 mm
side B length 25 mm
side B outer diameter 63 mm
side B thickness 3 mm
transition length 25 mm
axis offset 0 mm
ends fillet fillet on th...

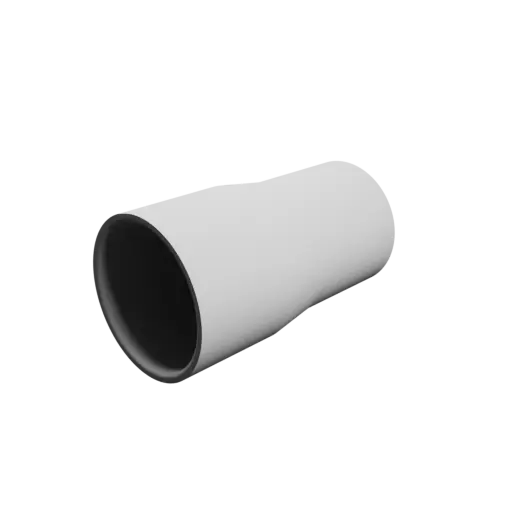

Tubing adapter STL file ⌀ 56–50 mm (Length: 100 mm) (📦 #3303)

1 object(s) - format STL
Tubing adapter STL file ⌀ 56–50 mm (Length: 100 mm)
Straight tube coupler ⌀56 mm to ⌀50 mm in STL 3D format. Length of this sleeve is 100 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 40 mm, the smaller one of 40 mm as well. The ends feature an internal fillet to make tube connection easier.
Parameter Value Unit
side A length 40 mm
side A outer diameter 56 mm
side A thickness 3 mm
side B length 40 mm
side B outer diameter 50 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 99–62 mm (Length: 90 mm) (📦 #2838)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 99–62 mm (Length: 90 mm)
Tubing adapter ⌀99 mm to ⌀62 mm in STL 3D format. Total length of this fitting is 90 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a sleeve length of 35 mm, the smaller one of 35 mm as well. The ends are rounded on the inside.
Parameter Value Unit
side A length 35 mm
side A outer diameter 99 mm
side A thickness 3 mm
side B length 35 mm
side B outer diameter 62 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on th...

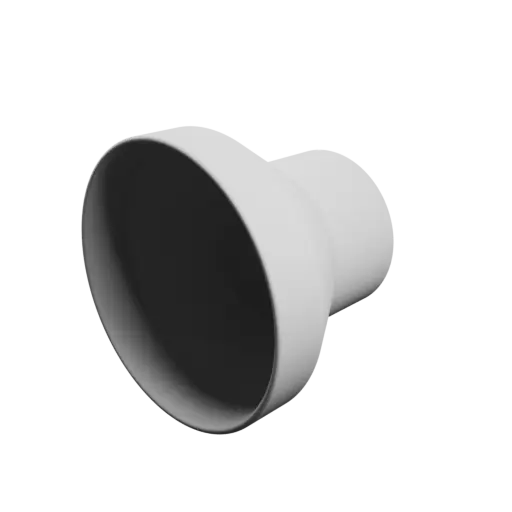

Tubing adapter STL 3D file ⌀ 104–65 mm (Length: 85 mm) (📦 #3124)
