Custom Honeycomb grille STL 3D file, center-to-center: 300x230mm, mesh: 5mm - Ø4mm 📦#3136
Generation date: 2025-11-08
3D model download
Free- honeycomb-grid-loc300mm-woc230_model3136-nb0_dd{id}.stl : 3.1 Mo
STL
Mesh quality :
0.001
0.1
No compliance warranty
License: ITE IPU v1.0 - Iteration3d
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Values for this model
This model was generated by the Honeycomb grid / fan guard template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length or center-to-center | 300 mm (≃11 13/16 in) |
| #2 | width or center-to-center | 230 mm (≃9 1/16 in) |
| #3 | mesh size | 5 mm (≃3/16 in) |
| #4 | dual color | no |
| #5 | holes | yes |
| #6 | hole diameter | 4 mm (≃0.16 in) |
| Metadata | Value |
|---|---|
| total length | 308 mm (≃12 1/8 in) |
| total width | 238 mm (≃9 3/8 in) |
| thickness | 2 mm (≃0.08 in) |
Parameter overview
The thickness of the walls forming the honeycomb structure is 1.2 mm.
- When no holes are present, the width of the outer band is 1.5 mm.
- When holes are present, the width of the outer band is equal to half the hole diameter.
When holes are present, the boss (reinforcing collar around the holes) has a diameter equal to twice the hole diameter.
When holes are present, the distance between the center of a hole and the outer edge of the frame is equal to the hole diameter.
The grid thickness is fixed at 2 mm.
The outer rim features a 1 mm rounded edge (fillet) on all four corners.
When the dual color parameter is enabled, the external band has a width equal to 30% of the hole diameter (0.9 mm when no holes are present).
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length or center-to-center | loc |
| #2 width or center-to-center | woc |
| #3 mesh size | mes |
| #4 dual color | duaC |
| #5 holes | hol |
| #6 hole diameter | hod |
Related 3D models
To search for a model based on your own parameters, go to the template page Honeycomb grid / fan guard
Honeycomb grid STL file, center-to-center: 240x240mm, mesh: 5mm - Ø5mm (📦 #2832)
1 object(s) - format STL
Download this honeycomb square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 240x240 mm), each with a diameter of Ø5 mm. The overall dimensions reach 250x250 mm, with regular 5 mm cell size for balanced airflow and protection. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 240 | mm |
| width or center-to-center | 240 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grid STL 3D file, center-to-center: 300x177mm, mesh: 6mm - Ø4mm (📦 #2969)
1 object(s) - format STL
Download this rectangular grid model in STL format. Mounting holes are placed at the four corners (center-to-center 300x177 mm), each with a diameter of Ø4 mm. The overall dimensions reach 308x185 mm, with large 6 mm cell size to enhance ventilation. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 177 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL 3D file, center-to-center: 180x180mm, mesh: 4mm - Ø4mm (📦 #3107)
1 object(s) - format STL
3D honeycomb square grid model in STL format. Mounting holes are placed at the four corners (center-to-center 180x180 mm), each with a diameter of Ø4 mm. The overall dimensions reach 188x188 mm, with regular 4 mm cell size for versatile use. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 180 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL file, center-to-center: 180x180mm, mesh: 8mm - Ø3mm (📦 #3108)
1 object(s) - format STL
Square protective grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 180x180 mm), each with a diameter of Ø3 mm. The overall dimensions reach 186x186 mm, with wide 8 mm cell size to maximize airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 180 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grid STL 3D file, center-to-center: 250x250mm, mesh: 10mm - Ø5mm (📦 #3216)
1 object(s) - format STL
Download this fan guard file in STL format. Mounting holes are placed at the four corners (center-to-center 250x250 mm), each with a diameter of Ø5 mm. The overall dimensions reach 260x260 mm, with very large 10 mm cell size for peak ventilation. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 250 | mm |
| width or center-to-center | 250 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL 3D file, center-to-center: 240x240mm, mesh: 10mm - Ø5mm (📦 #3217)
1 object(s) - format STL
Square honeycomb grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 240x240 mm), each with a diameter of Ø5 mm. The overall dimensions reach 250x250 mm, with very open 10 mm cell size for peak ventilation. This grid acts as a protective guard while allowing airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 240 | mm |
| width or center-to-center | 240 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Protective grid STL file, center-to-center: 150x150mm, mesh: 6mm - Ø5mm (📦 #3443)
1 object(s) - format STL
Download this square honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 150x150 mm), each with a diameter of Ø5 mm. The overall dimensions reach 160x160 mm, with open 6 mm cell size to maximize airflow. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 150 | mm |
| width or center-to-center | 150 | mm |
| mesh size | 6 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grille STL 3D file, center-to-center: 200x200mm, mesh: 10mm - Ø5mm (📦 #2938)
1 object(s) - format STL
Square grid file in STL format. Mounting holes are placed at the four corners (center-to-center 200x200 mm), each with a diameter of Ø5 mm. The overall dimensions reach 210x210 mm, with very large 10 mm cell size for maximum airflow. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 200 | mm |
| width or center-to-center | 200 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grille STL file, center-to-center: 135x135mm, mesh: 5mm - Ø4mm (📦 #3072)
1 object(s) - format STL
Square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 135x135 mm), each with a diameter of Ø4 mm. The overall dimensions reach 143x143 mm, with standard 5 mm cell size for balanced airflow and protection. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 135 | mm |
| width or center-to-center | 135 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |

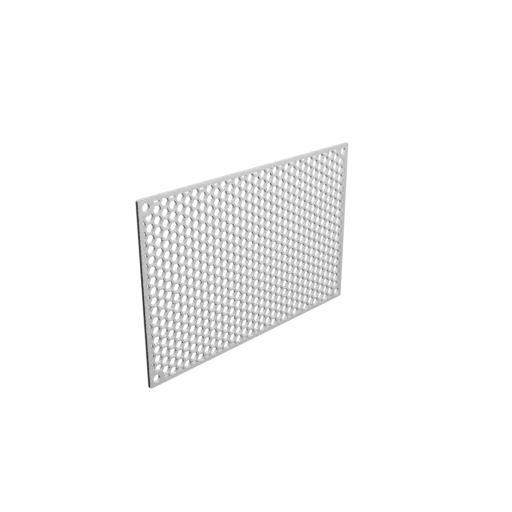

Honeycomb grille STL file, center-to-center: 165x105mm, mesh: 5mm - Ø5mm (📦 #3145)
1 object(s) - format STL
Download this rectangular protective honeycomb grid file in STL format. Mounting holes are placed at the four corners (center-to-center 165x105 mm), each with a diameter of Ø5 mm. The overall dimensions reach 175x115 mm, with standard 5 mm cell size for balanced airflow and protection. This grid provides both mechanical protection and airflow.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 165 | mm |
| width or center-to-center | 105 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 5 | mm |
Honeycomb grid STL file, 300x254mm, mesh: 5mm (📦 #3304)
1 object(s) - format STL
Download this 3D honeycomb protective rectangular grid model in STL format. The overall size is 300x254 mm, with medium 5 mm cell size for balanced airflow and protection. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 254 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | no |
Honeycomb grille STL 3D file, center-to-center: 180x180mm, mesh: 10mm - Ø3mm (📦 #3122)
1 object(s) - format STL
3D square protective honeycomb grid model in STL format. Mounting holes are placed at the four corners (center-to-center 180x180 mm), each with a diameter of Ø3 mm. The overall dimensions reach 186x186 mm, with very open 10 mm cell size for peak ventilation. This grid functions as both a mechanical guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 180 | mm |
| width or center-to-center | 180 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 3 | mm |
Honeycomb grille STL 3D file, center-to-center: 300x300mm, mesh: 10mm - Ø8mm (📦 #3360)
1 object(s) - format STL
3D square protective grid file in STL format. Mounting holes are placed at the four corners (center-to-center 300x300 mm), each with a diameter of Ø8 mm. The overall dimensions reach 316x316 mm, with very open 10 mm cell size for maximum airflow. This type of grid serves both protection and ventilation roles.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 300 | mm |
| width or center-to-center | 300 | mm |
| mesh size | 10 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 8 | mm |
Honeycomb grille STL file, center-to-center: 120x120mm, mesh: 5mm - Ø4mm (📦 #3389)
1 object(s) - format STL
3D fan guard model as a STL file. Mounting holes are placed at the four corners (center-to-center 120x120 mm), each with a diameter of Ø4 mm. The overall dimensions reach 128x128 mm, with regular 5 mm cell size for balanced airflow and protection. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 120 | mm |
| width or center-to-center | 120 | mm |
| mesh size | 5 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grille STL 3D file, center-to-center: 192x81mm, mesh: 8mm - Ø4mm (📦 #3095)
1 object(s) - format STL (5.0/5) 1 vote(s)
3D rectangular protective grid model as a STL file. Mounting holes are placed at the four corners (center-to-center 192x81 mm), each with a diameter of Ø4 mm. The overall dimensions reach 200x89 mm, with large 8 mm cell size for optimal air circulation. This type of grid provides mechanical protection and ventilation.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 192 | mm |
| width or center-to-center | 81 | mm |
| mesh size | 8 | mm |
| dual color | no | |
| holes | yes | |
| hole diameter | 4 | mm |
Honeycomb grid STL file, 255x155mm, mesh: 4mm (📦 #3162)
1 object(s) - format STL
3D rectangular honeycomb grid model in STL format. The overall size is 255x155 mm, with medium 4 mm cell size for balanced airflow and protection. This grid serves as both a protective guard and a ventilation panel.
| Parameter | Value | Unit |
|---|---|---|
| length or center-to-center | 255 | mm |
| width or center-to-center | 155 | mm |
| mesh size | 4 | mm |
| dual color | no | |
| holes | no |

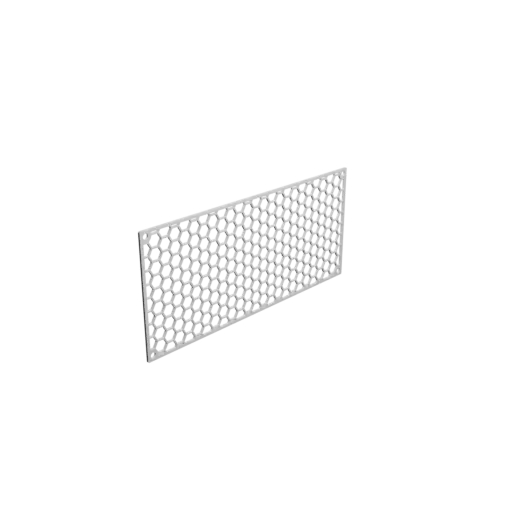

Protective grid STL 3D file, center-to-center: 230x100mm, mesh: 10mm - Ø5mm (📦 #3285)
