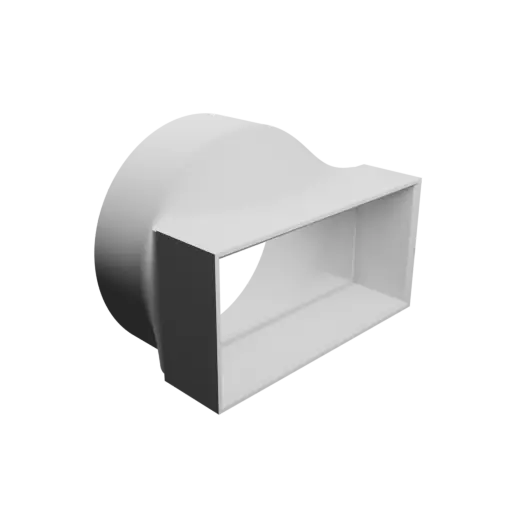

Custom Round-to-Rectangular Tube Adapter STL 3D file ⌀106 mm to 50×50 mm, thickness 3 mm 📦#2954

STL Download STL 1
Create a new model expert
from scratch search for a model
Download this file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀106 mm and a rectangular section with internal dimensions 50×50 mm. The wall thickness is 3 mm and the overall length is 100 mm. A chamfer is present on the outside of the cylindrical end to ease insertion.
Generation date: 2025-11-01
3D Model Round-to-Rectangular Tube Adapter STL 3D file ⌀106 mm to 50×50 mm, thickness 3 mm

3D model download

Free
  • round-to-rectangular-adapter-d_model2954-nb0_dd{id}.stl : 3.3 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 106 mm (≃4 3/16 in)
#2 cylinder inlet length 15 mm (≃0.59 in)
#3 rectangle internal length 50 mm (≃1.97 in)
#4 rectangle internal height 50 mm (≃1.97 in)
#5 rectangle inlet length 60 mm (≃2 3/8 in)
#6 offset Z 0 mm (0 in)
#7 offset Y 0 mm (0 in)
#8 total length 100 mm (≃3 15/16 in)
#9 thickness 3 mm (≃1/8 in)
#10 chamfer chamfer on the outside
of the cylindrical tube
Metadata Value
Cylinder internal diameter 100 mm (≃3 15/16 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
