Custom Multi-compartment box STL file: 30 compartments of 63.5×6.4×19 mm 📦#2895

STL Download STL 1
Create a new model:
from scratch search for a model
This parametric compartment box features 30 sections measuring 63.5×6.4×19mm each. Overall dimensions of the box are 198.5×86×21mm. A 3mm fillet applied to all compartments help with item retrieval stored in the compartments.
Generation date: 2025-10-30
3D Model Multi-compartment box STL file: 30 compartments of 63.5×6.4×19 mm

3D model download

Free
  • multi-compartment-storage-box-_model2895-nb0_dd{id}.stl : 2.7 Mo
STL Mesh quality : Linear deflection 0.5 Angular deflection 0.3
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Multi-compartment storage box template, with the following values:
Parameter Value
#1 number of rows 10
#2 number of columns 3
#3 compartment length 63.5 mm (2 1/2 in)
#4 compartment width 6.4 mm (≃1/4 in)
#5 compartment height 19 mm (≃3/4 in)
#6 wall thickness 2 mm (≃0.08 in)
#7 compartment fillet (radius) 3 mm (≃1/8 in)
Metadata Value
total length 198.5 mm (≃7 13/16 in)
total width 86 mm (≃3 3/8 in)
total height 21 mm (≃13/16 in)
number of slots 30
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 number of rows nbR
#2 number of columns nbC
#3 compartment length coL
#4 compartment width coW
#5 compartment height coH
#6 wall thickness waT
#7 compartment fillet (radius) coF

Related 3D models

To search for a model based on your own parameters, go to the template page Multi-compartment storage box

Multi-compartment box STL file: 48 compartments of 40×30×30 mm (📦 #2065)

1 object(s) - format STL
Multi-compartment box STL file: 48 compartments of 40×30×30 mm
This parametric multi-compartment box features 48 storage spaces measuring 40×30×30mm each. The total dimensions are 257.5×262.5×32.5mm. Fillets of 4mm applied to each compartment help with item retrieval stored in slots.
Parameter Value Unit
number of rows 8
number of columns 6
compartment length 40 mm
compartment width 30 mm
compartment height 30 mm
wall thickness 2.5 mm
compartment fillet (radius) 4 mm

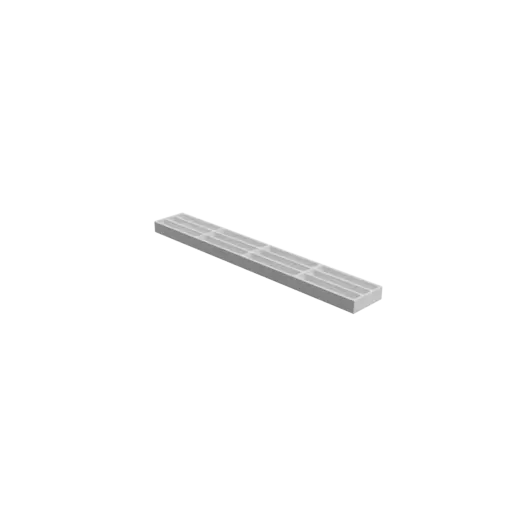

Multi-compartment box STL 3D file: 12 compartments of 78×13×13 mm (📦 #2857)
