Round air vent STL file ∅ 76 mm, slat angle: 45° 📦#2619

STL Download STL
Create a new model:
from scratch search for a model
3D model of a round grille for air circulation in STL format. Its insertion diameter is 76 mm. The slats have an angle of 45° and a low thickness of 1.5 mm. This 3D vent grille features a prominent flange of 20 mm. The full diameter of this model is 116 mm.
Generation date: 2025-10-20
3D Model Round air vent STL file ∅ 76 mm, slat angle: 45°

3D model download

Free
  • round-air-vent-dia76mm-slD45d-_model2619-nb0_dd{id}.stl : 1.3 Mo
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - non commercial use - no derivatives)
Safe download

Values for this model

This model was generated by the Round air vent grill template, with the following values:
Parameter Value
#1 male diameter 76 mm
#2 slat angle 45 °
#3 slat thickness 1.5 mm
#4 flange width 20 mm
#5 central reinforcement no
illustration of the parameters
Representation of the parameters

  • The total thickness of the vent is 25 mm.
  • Whatever the parameters, the slats never overlap. This ensures an optimal airflow. At the same time, the slats form an almost opaque screen along the axis.
  • The slats are actually shaped as parallelograms rather than rectangles. This ensures better printability.
  • The slats and the central reinforcement (if present) feature a 0.40 mm fillet on all edges. This improves airflow and prevents potential whistling.
  • The collar, if present, is 3 mm thick and has a 2 mm fillet for aesthetic purposes.
  • The male insertion area is 3 mm thick and has a 1 mm fillet on both edges to facilitate insertion into the intended slot.
  • The central reinforcement, if present, is 2 mm thick and spans the entire projected width of the slats.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 male diameter dia
#2 slat angle slD
#3 slat thickness slT
#4 flange width flW
#5 central reinforcement renf

Related 3D models

To search for a model based on your own parameters, go to the template page Round air vent grill

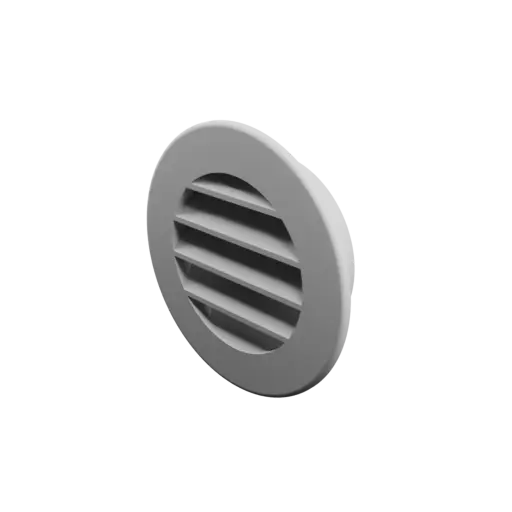

Round air vent STL file ∅ 75 mm, slat angle: 45° (📦 #2617)
