Custom Tube adapter STL 3D file ⌀ 110–80 mm (Length: 78 mm) 📦#2413

STL Download STL 1
Create a new model expert
from scratch search for a model
Tube reducer ⌀110 mm to ⌀80 mm in STL format. Final length of this sleeve is 78 mm. The larger-diameter tube has a thickness of 4 mm and a sleeve length of 25 mm. The smaller-diameter tube has a thickness of 2 mm and a length of 40 mm. The ends have no fillet.
Generation date: 2025-10-12

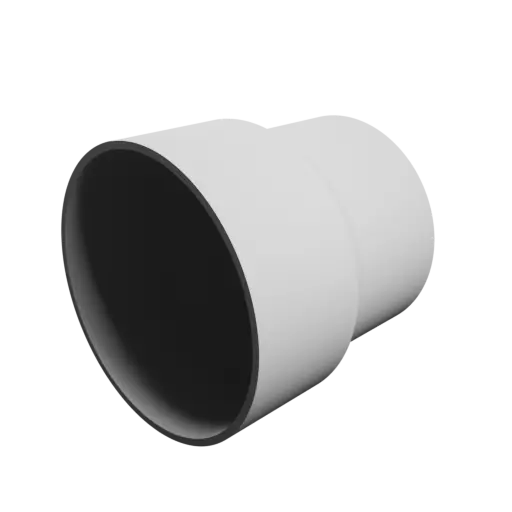

3D Model Tube adapter STL 3D file ⌀ 110–80 mm (Length: 78 mm)

3D model download

Free
  • inline-tube-adapter-lenA25mm-d_model2413-nb0_dd{id}.stl : 8.1 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 25 mm (≃0.98 in)
#2 side A outer diameter 110 mm (≃4.33 in)
#3 side A thickness 4 mm (≃0.16 in)
#4 side B length 40 mm (≃1 9/16 in)
#5 side B outer diameter 80 mm (≃3.15 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 13 mm (≃1/2 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 102 mm (≃4.02 in)
inner diameter (side B) 76 mm (≃3 in)
total length 78 mm (≃3 1/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
