Custom Round-to-Rectangular Tube Adapter STL file ⌀160 mm to 300×120 mm, thickness 3 mm + offset 📦#2008

STL Download STL 2
Create a new model:
from scratch search for a model

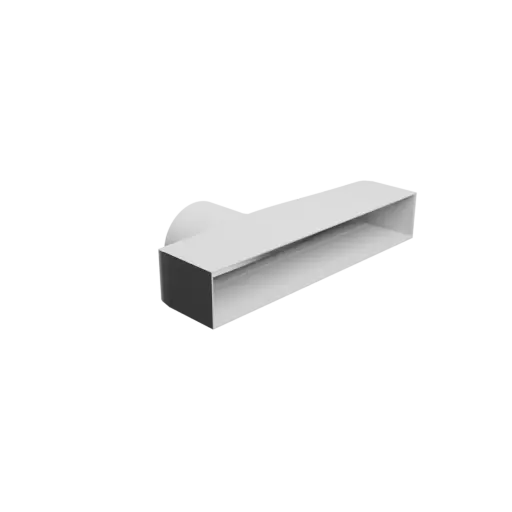

Download this 3D model in STL format of a round-to-rectangular adapter with an external diameter of ⌀160 mm and a rectangular section with internal dimensions 300×120 mm. The wall thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 35 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Generation date: 2025-09-26
3D Model Round-to-Rectangular Tube Adapter STL file ⌀160 mm to 300×120 mm, thickness 3 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model2008-nb0_dd{id}.stl : 2.4 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 160 mm (≃6 5/16 in)
#2 cylinder inlet length 30 mm (≃1 3/16 in)
#3 rectangle internal length 300 mm (≃11 13/16 in)
#4 rectangle internal height 120 mm (≃4.72 in)
#5 rectangle inlet length 80 mm (≃3.15 in)
#6 offset Z 35 mm (≃1 3/8 in)
#7 offset Y 0 mm (0 in)
#8 total length 200 mm (≃7 7/8 in)
#9 thickness 3 mm (≃1/8 in)
#10 chamfer chamfers on the outside
of the cylindrical tube
and on the inside of
the rectangular tube
Metadata Value
Cylinder internal diameter 154 mm (≃6 1/16 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
