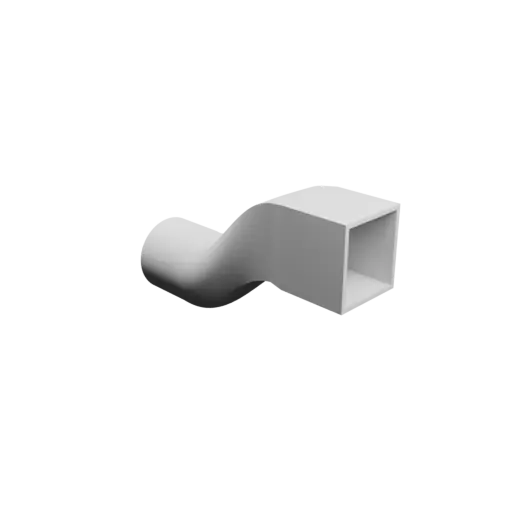

Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 135×75 mm, thickness 2 mm + offset 📦#1977

STL Download STL
Create a new model:
from scratch search for a model
Download this model in STL format of a round-to-rectangular adapter with an external diameter of ⌀100 mm and a rectangular section with inner dimensions 135×75 mm. The shell thickness is 2 mm and the overall length is 160 mm. The adapter has an offset of 30 mm along the Z axis.
Generation date: 2025-09-24
3D Model Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 135×75 mm, thickness 2 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model1977-nb0_dd{id}.stl : 1.8 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 100 mm
#2 cylinder inlet length 35 mm
#3 rectangle internal length 135 mm
#4 rectangle internal height 75 mm
#5 rectangle inlet length 60 mm
#6 offset Z 30 mm
#7 offset Y 0 mm
#8 total length 160 mm
#9 thickness 2 mm
#10 chamfer no chamfer
illustration of the parameters
Representation of the parameters

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
