Tube adapter STL file ⌀ 128–98 mm (Length: 71 mm) 📦#1846

STL Download STL
Create a new model:
from scratch search for a model
Inline tube coupler ⌀128 mm to ⌀98 mm in STL format. Final length of this adapter is 71 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 21 mm. The ends are raw.
Generation date: 2025-09-17

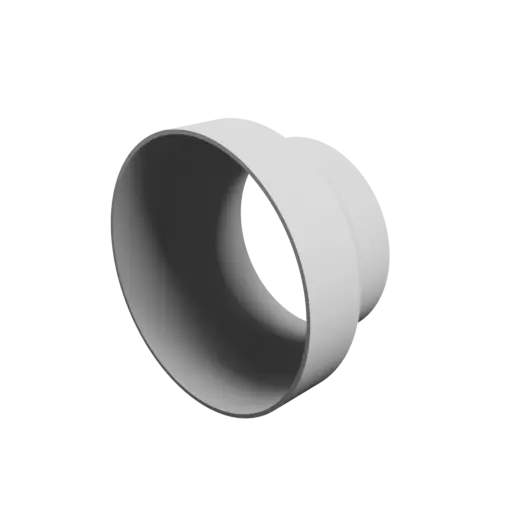

3D Model Tube adapter STL file ⌀ 128–98 mm (Length: 71 mm)

3D model download

Free
  • inline-tube-adapter-lenA30mm-d_model1846-nb0_dd{id}.stl : 4.5 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 30 mm
#2 side A outer diameter 128 mm
#3 side A thickness 2 mm
#4 side B length 21 mm
#5 side B outer diameter 98 mm
#6 side B thickness 2 mm
#7 transition length 20 mm
#8 axis offset 0 mm
#9 ends fillet no fillet
Metadata Value
inner diameter (side A) 124 mm
inner diameter (side B) 94 mm
total length 71 mm
illustration of the parameters
Representation of the parameters

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
