Round air vent STL file ∅ 152 mm, slat angle: 30° with central reinforcement 📦#1481

STL Download STL
Create a new model:
from scratch search for a model
File of a round vent cover for air circulation in STL format. Its insertion diameter measures 152 mm. The slats have a slight angle of 30° and a high thickness of 2 mm. A centered vertical reinforcement strengthens the whole structure. This 3D aeration grille features a collar of 10 mm. The overall diameter of the model is 172 mm.
Generation date: 2025-08-30
3D Model Round air vent STL file ∅ 152 mm, slat angle: 30° with central reinforcement

3D model download

Free
  • round-air-vent-dia152mm-slD30d_model1481-nb0_dd{id}.stl : 9.3 Mo
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - non commercial use - no derivatives)
Safe download

Values for this model

This model was generated by the Round air vent grill template, with the following values:
Parameter Value
#1 male diameter 152 mm
#2 slat angle 30 °
#3 slat thickness 2 mm
#4 flange width 10 mm
#5 central reinforcement yes
illustration of the parameters
Representation of the parameters

  • The total thickness of the vent is 25 mm.
  • Whatever the parameters, the slats never overlap. This ensures an optimal airflow. At the same time, the slats form an almost opaque screen along the axis.
  • The slats are actually shaped as parallelograms rather than rectangles. This ensures better printability.
  • The slats and the central reinforcement (if present) feature a 0.40 mm fillet on all edges. This improves airflow and prevents potential whistling.
  • The collar, if present, is 3 mm thick and has a 2 mm fillet for aesthetic purposes.
  • The male insertion area is 3 mm thick and has a 1 mm fillet on both edges to facilitate insertion into the intended slot.
  • The central reinforcement, if present, is 2 mm thick and spans the entire projected width of the slats.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 male diameter dia
#2 slat angle slD
#3 slat thickness slT
#4 flange width flW
#5 central reinforcement renf

Related 3D models

To search for a model based on your own parameters, go to the template page Round air vent grill

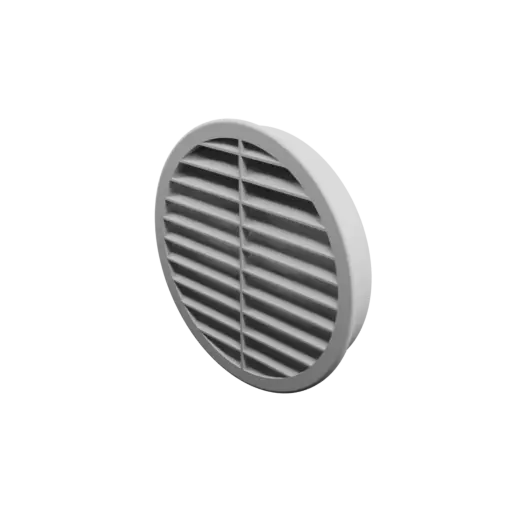

Round air vent STL file ∅ 180 mm, slat angle: 30° with central reinforcement (📦 #1388)

1 object(s) - format STL (4.0/5) 1 vote(s)
Round air vent STL file ∅ 180 mm, slat angle: 30° with central reinforcement
File of a round air vent for air circulation in STL format. Its male diameter measures 180 mm. The slats have a slight angle of 30° and a high thickness of 2 mm. A vertical reinforcement strengthens the slats. This ventilation grille has a prominent flange of 12 mm. The overall diameter of this model is 204 mm.
Parameter Value Unit
male diameter 180 mm
slat angle 30 °
slat thickness 2 mm
flange width 12 mm
central reinforcement yes

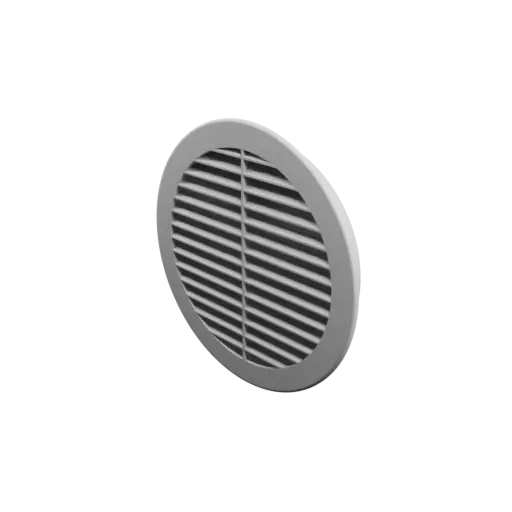

Round air vent STL 3D file ∅ 154 mm, slat angle: 45° with central reinforcement (📦 #1887)
