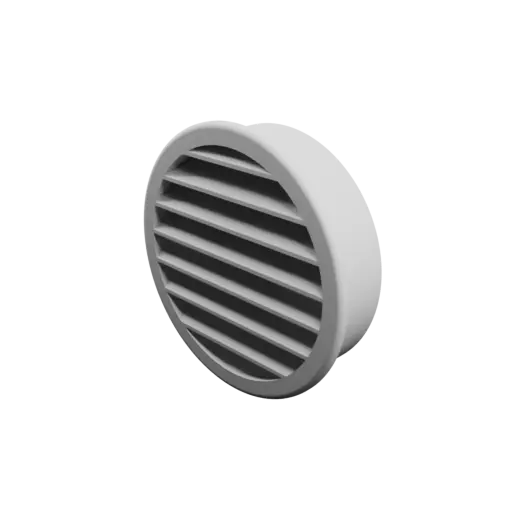

Round air vent ∅ 300 mm, angle 10° with central reinforcement 📦#1265
Generation date: 2025-07-26
3D model download
Free- round-air-vent-dia300mm-slD10d_model1265-nb0_dd{id}.stl : 39.7 Mo
STL
Mesh quality :
not defined
License: CC BY-NC-ND - Creative commons
(attribution - non commercial use - no derivatives)
Values for this model
This model was generated by the Round air vent grill template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | male diameter | 300 mm |
| #2 | slat angle | 10 ° |
| #3 | slat thickness | 1.4 mm |
| #4 | flange width | 10 mm |
| #5 | central reinforcement | yes |
Representation of the parameters
- The total thickness of the vent is 25 mm.
- Whatever the parameters, the slats never overlap. This ensures an optimal airflow. At the same time, the slats form an almost opaque screen along the axis.
- The slats are actually shaped as parallelograms rather than rectangles. This ensures better printability.
- The slats and the central reinforcement (if present) feature a 0.40 mm fillet on all edges. This improves airflow and prevents potential whistling.
- The collar, if present, is 3 mm thick and has a 2 mm fillet for aesthetic purposes.
- The male insertion area is 3 mm thick and has a 1 mm fillet on both edges to facilitate insertion into the intended slot.
- The central reinforcement, if present, is 2 mm thick and spans the entire projected width of the slats.
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 male diameter | dia |
| #2 slat angle | slD |
| #3 slat thickness | slT |
| #4 flange width | flW |
| #5 central reinforcement | renf |
