Tube adapter STL 3D file ⌀ 45–10 mm (Length: 90 mm) 📦#1260

Name: Custom 3D Model · Tube adapter STL 3D file ⌀ 45–10 mm (Length: 90 mm) 📦#1260
Brand: iteration3d
SKU: 1260
Availability: InStock
Rating: 4 (1 reviews)

STL Download STL

Inline sleeve ⌀45 mm to ⌀10 mm in STL format. Total length of this connector is 90 mm. The larger-diameter tube has a thickness of 2.5 mm and a length of 30 mm. The smaller-diameter tube has a thickness of 2 mm and a length of 30 mm as well. The ends have no fillet.

Generation date: 2025-07-24

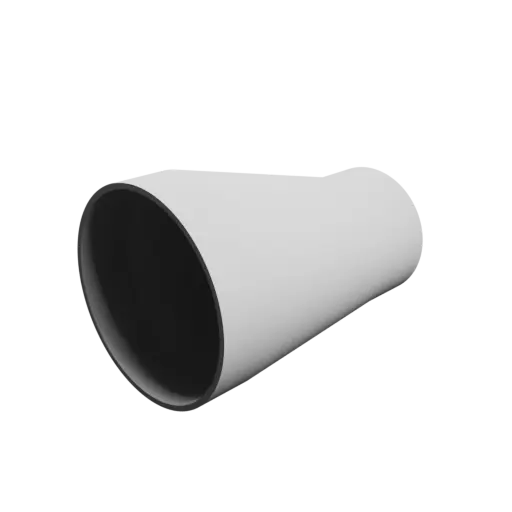

3D Model Tube adapter STL 3D file ⌀ 45–10 mm (Length: 90 mm)

3D model download

Free

Download content zip : 2.5 Mo (1 file(s))

inline-tube-adapter-lenA30mm-d_model1260-nb0_dd{id}.stl : 2.5 Mo

STL Mesh quality : not defined

No compliance warranty

License: CC BY - Creative commons

(attribution - commercial use allowed)

Safe download

Values for this model

This model was generated by the Inline tube adapter template, with the following values:

	Parameter	Value
#1	side A length	30 mm
#2	side A outer diameter	45 mm
#3	side A thickness	2.5 mm
#4	side B length	30 mm
#5	side B outer diameter	10 mm
#6	side B thickness	2 mm
#7	transition length	30 mm
#8	axis offset	0 mm
#9	ends fillet	no fillet

Metadata	Value
inner diameter (side A)	40 mm
inner diameter (side B)	6 mm
total length	90 mm

Representation of the parameters

Labels are used in the naming of the downloaded 3D files.

Parameter	Label
#1 side A length	lenA
#2 side A outer diameter	diA
#3 side A thickness	thA
#4 side B length	lenB
#5 side B outer diameter	diB
#6 side B thickness	thB
#7 transition length	tra
#8 axis offset	ofs
#9 ends fillet	fil
