Custom Enclosure with screw-mounted lid STL file: 200×130×60 mm (with ventilation on the lid and under the enclosure) 📦#1248
Generation date: 2025-07-22
3D model download
Free- object #0 enclosure-with-screw-mounted-l_model1248-nb0_dd{id}.stl : 640.1 Ko

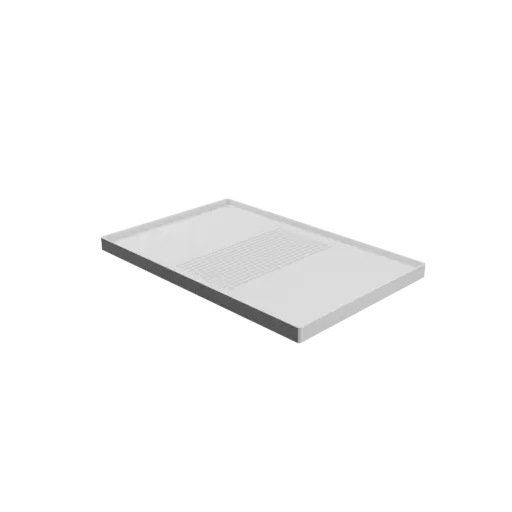

- object #1 enclosure-with-screw-mounted-l_model1248-nb1_dd{id}.stl : 563.6 Ko
STL
Mesh quality :
not defined
No compliance warranty
License: CC BY - Creative commons
(attribution - commercial use allowed)
Safe download
Values for this model
This model was generated by the Enclosure with screw-mounted lid template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length | 200 mm (≃7 7/8 in) |
| #2 | width | 130 mm (≃5 1/8 in) |
| #3 | total height | 60 mm (≃2 3/8 in) |
| #4 | lid height | 10 mm (≃0.39 in) |
| #5 | wall thickness | 2 mm (≃0.08 in) |
| #6 | screw margin | 0 mm (0 in) |
| #7 | fit clearance | 0.1 mm (<0.01 in) |
| #8 | cooling level | 3 |
| #9 | cooling zone(s) | cutouts on both |
| Metadata | Value |
|---|---|
| Internal length excluding screw mounting posts | 196 mm (≃7.72 in) |
| Internal width excluding screw mounting posts | 126 mm (≃4.96 in) |
| Internal height | 53 mm (≃2.09 in) |
Parameter overview
- The thickness of the upper lid shell is always 5 mm.
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length | len |
| #2 width | wid |
| #3 total height | Thei |
| #4 lid height | Lhei |
| #5 wall thickness | waT |
| #6 screw margin | Tmrg |
| #7 fit clearance | Imrg |
| #8 cooling level | cooL |
| #9 cooling zone(s) | cooZ |
