Custom Tubing adapter STL 3D file ⌀ 56–54 mm (Length: 65 mm) 📦#12415

STL Download STL 1
Create a new model expert
from scratch search for a model
Straight sleeve ⌀56 mm to ⌀54 mm in STL format. Final length of this sleeve is 65 mm. The larger-diameter tube has a thickness of 2 mm and a sleeve length of 30 mm. The smaller-diameter tube has a thickness of 3 mm and a length of 30 mm as well. The ends feature an internal fillet to make tube connection easier.
Generation date: 2026-10-08
3D Model Tubing adapter STL 3D file ⌀ 56–54 mm (Length: 65 mm)

3D model download

Free
  • inline-tube-adapter-lenA30mm-d_model12415-nb0_dd{id}.stl : 3.9 Mo
STL Mesh quality : Linear deflection 0.05 Angular deflection 0.05
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 30 mm (≃1 3/16 in)
#2 side A outer diameter 56 mm (≃2.20 in)
#3 side A thickness 2 mm (≃0.08 in)
#4 side B length 30 mm (≃1 3/16 in)
#5 side B outer diameter 54 mm (≃2 1/8 in)
#6 side B thickness 3 mm (≃1/8 in)
#7 transition length 5 mm (≃3/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on the inside
Metadata Value
inner diameter (side A) 52 mm (≃2 1/16 in)
inner diameter (side B) 48 mm (≃1 7/8 in)
total length 65 mm (≃2 9/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tubing adapter STL 3D file ⌀ 70–61 mm (Length: 70 mm) (📦 #7958)

1 object(s) - format STL
Tubing adapter STL 3D file ⌀ 70–61 mm (Length: 70 mm)
Tube reducer ⌀70 mm to ⌀61 mm in STL format. Length of this adapter is 70 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 30 mm as well. The ends feature an internal fillet.
Parameter Value Unit
side A length 30 mm
side A outer diameter 70 mm
side A thickness 2 mm
side B length 30 mm
side B outer diameter 61 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL file ⌀ 69–60 mm (Length: 58 mm) (📦 #7960)

1 object(s) - format STL
Tube adapter STL file ⌀ 69–60 mm (Length: 58 mm)
Straight tubing adapter ⌀69 mm to ⌀60 mm in STL format. Length of this fitting is 58 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 25 mm as well. The ends have a fillet on the inside.
Parameter Value Unit
side A length 25 mm
side A outer diameter 69 mm
side A thickness 2 mm
side B length 25 mm
side B outer diameter 60 mm
side B thickness 2 mm
transition length 8 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 69–60 mm (Length: 60 mm) (📦 #7962)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 69–60 mm (Length: 60 mm)
Inline tube adapter ⌀69 mm to ⌀60 mm in STL format. Final length of this coupler is 60 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 25 mm, the smaller one of 25 mm as well. The ends are rounded on the inside.
Parameter Value Unit
side A length 25 mm
side A outer diameter 69 mm
side A thickness 2 mm
side B length 25 mm
side B outer diameter 60 mm
side B thickness 2 mm
transition length 10 mm
axis offset 0 mm
ends fillet fillet on th...

Tubing adapter STL file ⌀ 59–50 mm (Length: 70 mm) (📦 #8535)

1 object(s) - format STL
Tubing adapter STL file ⌀ 59–50 mm (Length: 70 mm)
Straight tube connector ⌀59 mm to ⌀50 mm in STL format. Length of this sleeve is 70 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 25 mm, the smaller one of 25 mm as well. The ends are rounded on the inside to facilitate the connection of the two tubes.
Parameter Value Unit
side A length 25 mm
side A outer diameter 59 mm
side A thickness 2 mm
side B length 25 mm
side B outer diameter 50 mm
side B thickness 2 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on th...

Tube adapter STL 3D file ⌀ 63–46 mm (Length: 68 mm) (📦 #4957)

1 object(s) - format STL
Tube adapter STL 3D file ⌀ 63–46 mm (Length: 68 mm)
Inline tube reducer ⌀63 mm to ⌀46 mm in STL format. Final length of this fitting is 68 mm. The thickness of the tubes is identical: 3 mm. The larger-diameter tube has a length of 30 mm, the smaller one of 18 mm. The ends have a fillet on the inside to facilitate the connection of the two tubes.
Parameter Value Unit
side A length 30 mm
side A outer diameter 63 mm
side A thickness 3 mm
side B length 18 mm
side B outer diameter 46 mm
side B thickness 3 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on th...

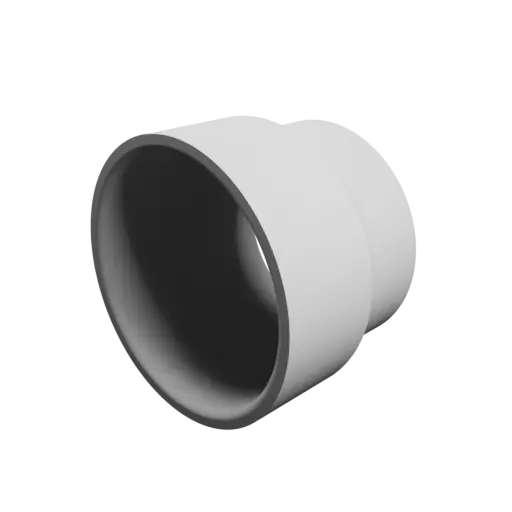

Tube adapter STL 3D file ⌀ 52–45 mm (Length: 38 mm) (📦 #12024)
