Custom Tube adapter STL file ⌀ 50–40 mm (Length: 100 mm) 📦#1125

STL Download STL 1
Create a new model:
from scratch search for a model
Straight tube fitting ⌀50 mm to ⌀40 mm in STL format. Length of this reducer is 100 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 40 mm, the smaller one of 40 mm as well. The ends have a fillet to ease the connection.
Generation date: 2025-06-29
3D Model Tube adapter STL file ⌀ 50–40 mm (Length: 100 mm)

3D model download

Free
  • inline-tube-adapter-lenA40mm-d_model1125-nb0_dd{id}.stl : 7.4 Mo
STL Mesh quality : not defined
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 40 mm (≃1 9/16 in)
#2 side A outer diameter 50 mm (≃1.97 in)
#3 side A thickness 2 mm (≃0.08 in)
#4 side B length 40 mm (≃1 9/16 in)
#5 side B outer diameter 40 mm (≃1 9/16 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 20 mm (≃0.79 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on both inside
and outside
Metadata Value
inner diameter (side A) 46 mm (≃1 13/16 in)
inner diameter (side B) 36 mm (≃1.42 in)
total length 100 mm (≃3 15/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil

Related 3D models

To search for a model based on your own parameters, go to the template page Inline tube adapter

Tube adapter STL file ⌀ 60–20 mm (Length: 75 mm) (📦 #2411)

1 object(s) - format STL
Tube adapter STL file ⌀ 60–20 mm (Length: 75 mm)
Inline tube junction ⌀60 mm to ⌀20 mm in STL format. Total length of this connector is 75 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a sleeve length of 30 mm, the smaller one of 25 mm. The ends feature a fillet to ease the connection.
Parameter Value Unit
side A length 30 mm
side A outer diameter 60 mm
side A thickness 2 mm
side B length 25 mm
side B outer diameter 20 mm
side B thickness 2 mm
transition length 20 mm
axis offset 0 mm
ends fillet fillet on bo...

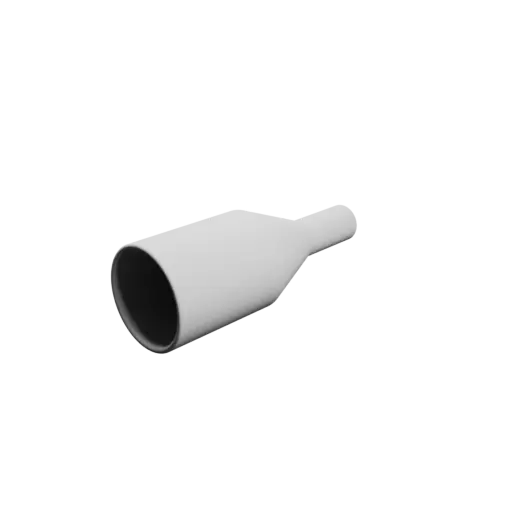

Tubing adapter STL file ⌀ 40–16 mm (Length: 110 mm) (📦 #3485)
