Custom Tube adapter STL file ⌀ 16–12 mm (Length: 35 mm) 📦#1097

STL Download STL 19
Create a new model expert
from scratch search for a model
Straight tube adapter ⌀16 mm to ⌀12 mm in STL 3D format. Length of this junction is 35 mm. The thickness of the tubes is identical: 2 mm. The larger-diameter tube has a length of 15 mm, the smaller one of 15 mm as well. The ends are rounded to make tube connection easier.
Generation date: 2025-06-16

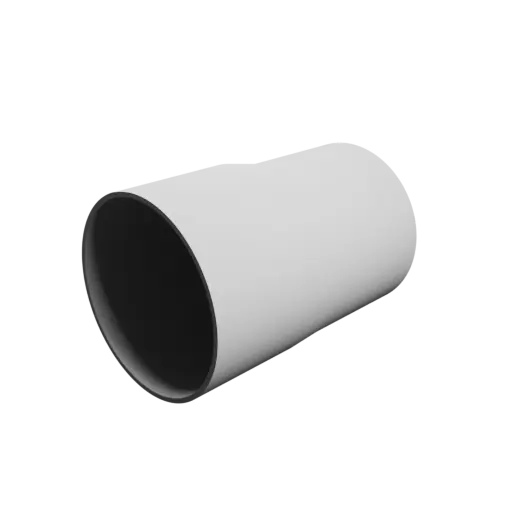

3D Model Tube adapter STL file ⌀ 16–12 mm (Length: 35 mm)

3D model download

Free
  • inline-tube-adapter-lenA15mm-d_model1097-nb0_dd{id}.stl : 1.8 Mo
STL Mesh quality : not defined
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Photos of the model once printed

Tube adapter STL file ⌀ 16–12 mm (Length: 35 mm)

Values for this model

This model was generated by the Inline tube adapter template, with the following values:
Parameter Value
#1 side A length 15 mm (≃0.59 in)
#2 side A outer diameter 16 mm (≃5/8 in)
#3 side A thickness 2 mm (≃0.08 in)
#4 side B length 15 mm (≃0.59 in)
#5 side B outer diameter 12 mm (≃0.47 in)
#6 side B thickness 2 mm (≃0.08 in)
#7 transition length 5 mm (≃3/16 in)
#8 axis offset 0 mm (0 in)
#9 ends fillet fillet on both inside
and outside
Metadata Value
inner diameter (side A) 12 mm (≃0.47 in)
inner diameter (side B) 8 mm (≃5/16 in)
total length 35 mm (≃1 3/8 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 side A length lenA
#2 side A outer diameter diA
#3 side A thickness thA
#4 side B length lenB
#5 side B outer diameter diB
#6 side B thickness thB
#7 transition length tra
#8 axis offset ofs
#9 ends fillet fil
