Round air vent grill 3D Files - Male diameter 100 to 150 mm | page 5

Model(s) 121 to 125 of 125

Round air vent STL file ∅ 146 mm, slat angle: 60° with central reinforcement (📦 #3063)

1 object(s) - format STL
Round air vent STL file ∅ 146 mm, slat angle: 60° with central reinforcement
3D design of a round vent cover for air circulation in STL format. Its male diameter measures 146 mm. The slats have a steep angle of 60° and a low thickness of 1.4 mm. A centered vertical reinforcement secures the whole structure. This 3D vent cover has a flange of 8 mm. The overall diameter of this model is 162 mm.
Parameter Value Unit
male diameter 146 mm
slat angle 60 °
slat thickness 1.4 mm
flange width 8 mm
central reinforcement yes

Round air vent STL 3D file ∅ 146 mm, slat angle: 45° with central reinforcement (📦 #3064)

1 object(s) - format STL
Round air vent STL 3D file ∅ 146 mm, slat angle: 45° with central reinforcement
3D design of a round grille for air circulation in STL format. Its male diameter is 146 mm. The slats have an angle of 45° and a low thickness of 1.4 mm. A centered vertical reinforcement secures the slats. This aeration grille features a collar of 8 mm. The total diameter of the model is 162 mm.
Parameter Value Unit
male diameter 146 mm
slat angle 45 °
slat thickness 1.4 mm
flange width 8 mm
central reinforcement yes

Round air vent STL file ∅ 146 mm, slat angle: 30° with central reinforcement (📦 #3065)

1 object(s) - format STL
Round air vent STL file ∅ 146 mm, slat angle: 30° with central reinforcement
Design of a round grille for air circulation in STL format. Its insertion diameter measures 146 mm. The slats have a slight angle of 30° and a low thickness of 1.4 mm. A centered vertical reinforcement secures the whole structure. This 3D vent grille has a flange of 8 mm. The total diameter of this model is 162 mm.
Parameter Value Unit
male diameter 146 mm
slat angle 30 °
slat thickness 1.4 mm
flange width 8 mm
central reinforcement yes

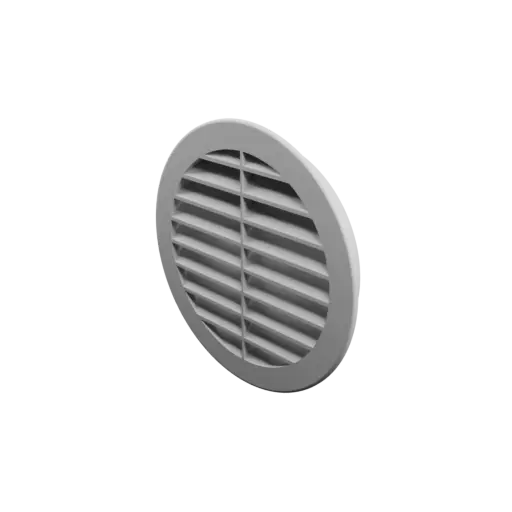

Round air vent STL 3D file ∅ 148 mm, slat angle: 45° with central reinforcement (📦 #12097)

1 object(s) - format STL
Round air vent STL 3D file ∅ 148 mm, slat angle: 45° with central reinforcement
3D file of a round grille for air circulation in STL format. Its insertion diameter is 148 mm. The slats have an angle of 45° and a high thickness of 2.3 mm. A vertical reinforcement reinforces the slats. This 3D ventilation grille features a prominent flange of 15 mm. The full diameter of the model is 178 mm.
Parameter Value Unit
male diameter 148 mm
slat angle 45 °
slat thickness 2.3 mm
flange width 15 mm
central reinforcement yes

Round air vent STL file ∅ 149 mm, slat angle: 10° (📦 #6357)

1 object(s) - format STL
Round air vent STL file ∅ 149 mm, slat angle: 10°
3D design of a round grille for ventilation in STL format. Its male diameter measures 149 mm. The slats have a slight angle of 10° and a high thickness of 2 mm. This vent cover features a thin flange of 4 mm. The total diameter of this model is 157 mm.
Parameter Value Unit
male diameter 149 mm
slat angle 10 °
slat thickness 2 mm
flange width 4 mm
central reinforcement no
Can't find the right model? Create it with your specs
