Washer, Flat gasket, Ring 3D Files - Inner diameter 0.1 to 30 mm | page 2
Model(s) 31 to 55 of 55
Washer / Flat Gasket STL 3D file ⌀ID: 15 mm ⌀OD: 20 mm thickness: 2.5 mm + chamfer (📦 #3635)
1 object(s) - format STL
Download this model of flat gasket / washer in STL 3D file format. This model features an inner diameter of ⌀15 mm and an outer diameter of ⌀20 mm. The total thickness is 2.5 mm. A chamfer is applied on the inner diameter with a value of 00.4 mm.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 15 | mm |
| outer diameter | 20 | mm |
| thickness | 2.5 | mm |
| finish | chamfer | |
| finish position | inner | |
| sides | one side | |
| finish value | 00.4 | mm |
Washer / Flat Gasket STL file ⌀ID: 15 mm ⌀OD: 75 mm thickness: 4 mm + chamfers (📦 #3900)
1 object(s) - format STL
Model of gasket / washer in STL 3D file format. This model features an inner diameter of ⌀15 mm and an outer diameter of ⌀75 mm. The part thickness is 4 mm. Chamfers are applied on both the inner diameter and the outer diameter, each with a value of 0.1 mm. These finishes are applied on both sides.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 15 | mm |
| outer diameter | 75 | mm |
| thickness | 4 | mm |
| finish | chamfer | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 0.1 | mm |
Washer / Flat Gasket STL file ⌀ID: 16 mm ⌀OD: 24 mm thickness: 3 mm + chamfers (📦 #1695)
1 object(s) - format STL
Model of washer / flat gasket in STL format. This part has an inner diameter of ⌀16 mm and an outer diameter of ⌀24 mm. The total thickness is 3 mm. Chamfers are present on both the inner diameter and the outer diameter, each with a value of 0.5 mm. These finishes are present on both sides.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 16 | mm |
| outer diameter | 24 | mm |
| thickness | 3 | mm |
| finish | chamfer | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 0.5 | mm |
Washer / Flat Gasket STL 3D file ⌀ID: 16.5 mm ⌀OD: 25.0 mm thickness: 2.0 mm (📦 #2329)
1 object(s) - format STL
3D model of gasket / washer in STL 3D file format. This model has an inner diameter of ⌀16.5 mm and an outer diameter of ⌀25.0 mm. The part thickness is 2.0 mm. This part has no finish present.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 16.5 | mm |
| outer diameter | 25.0 | mm |
| thickness | 2.0 | mm |
| finish | none |
Washer / Flat Gasket STL 3D file ⌀ID: 16.5 mm ⌀OD: 25.0 mm thickness: 3.5 mm (📦 #2341)
1 object(s) - format STL
File of washer / gasket in STL format. This part has an inner diameter of ⌀16.5 mm and an outer diameter of ⌀25.0 mm. The total thickness is 3.5 mm. This part has no finish present.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 16.5 | mm |
| outer diameter | 25.0 | mm |
| thickness | 3.5 | mm |
| finish | none |
Washer / Flat Gasket STL file ⌀ID: 16.5 mm ⌀OD: 25.0 mm thickness: 3.2 mm (📦 #2342)
1 object(s) - format STL
Model of gasket / washer in STL file format. This part has an internal diameter of ⌀16.5 mm and an external diameter of ⌀25.0 mm. The total thickness is 3.2 mm. No finish is applied.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 16.5 | mm |
| outer diameter | 25.0 | mm |
| thickness | 3.2 | mm |
| finish | none |
Washer / Flat Gasket STL file ⌀ID: 18 mm ⌀OD: 24 mm thickness: 10 mm + chamfers (📦 #1704)
1 object(s) - format STL
3D model of washer / gasket in STL format. This model has an internal diameter of ⌀18 mm and an external diameter of ⌀24 mm. The total thickness is 10 mm. Chamfers are present on both the internal diameter and the external diameter, each with a value of 0.3 mm. These finishes are present on the top and bottom.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 18 | mm |
| outer diameter | 24 | mm |
| thickness | 10 | mm |
| finish | chamfer | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 0.3 | mm |
Washer / Flat Gasket STL file ⌀ID: 18 mm ⌀OD: 20 mm thickness: 1.2 mm (📦 #1714)
1 object(s) - format STL
Model of gasket / washer in STL 3D file format. This part has an inner diameter of ⌀18 mm and an outer diameter of ⌀20 mm. The thickness is 1.2 mm. This part has no finish applied.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 18 | mm |
| outer diameter | 20 | mm |
| thickness | 1.2 | mm |
| finish | none |
Washer / Flat Gasket STL 3D file ⌀ID: 18 mm ⌀OD: 22 mm thickness: 0.4 mm + fillets (📦 #1738)
1 object(s) - format STL
Download this 3D model of flat gasket / washer in STL 3D file format. This part features an inner diameter of ⌀18 mm and an outer diameter of ⌀22 mm. The part thickness is 0.4 mm. Fillets are present on both the inner diameter and the outer diameter, each with a value of 0.1 mm. These finishes are applied on the top and bottom.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 18 | mm |
| outer diameter | 22 | mm |
| thickness | 0.4 | mm |
| finish | fillet | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 0.1 | mm |
Washer / Flat Gasket STL file ⌀ID: 19 mm ⌀OD: 21.9 mm thickness: 8 mm (📦 #3054)
1 object(s) - format STL
Download this 3D model of flat gasket / washer in STL 3D file format. This part features an inner diameter of ⌀19 mm and an outer diameter of ⌀21.9 mm. The part thickness is 8 mm. No finish is available.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 19 | mm |
| outer diameter | 21.9 | mm |
| thickness | 8 | mm |
| finish | none |
Washer / Flat Gasket STL file ⌀ID: 19 mm ⌀OD: 29 mm thickness: 2 mm (📦 #3109)
1 object(s) - format STL
File of gasket / washer in STL file format. This model features an inner diameter of ⌀19 mm and an outer diameter of ⌀29 mm. The thickness is 2 mm. No finish is available.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 19 | mm |
| outer diameter | 29 | mm |
| thickness | 2 | mm |
| finish | none |
Washer / Flat Gasket STL 3D file ⌀ID: 19 mm ⌀OD: 22 mm thickness: 8 mm (📦 #3614)
1 object(s) - format STL
Download this model of washer / gasket in STL format. This model has an internal diameter of ⌀19 mm and an external diameter of ⌀22 mm. The total thickness is 8 mm. There is no finish present.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 19 | mm |
| outer diameter | 22 | mm |
| thickness | 8 | mm |
| finish | none |
Washer / Flat Gasket STL file ⌀ID: 19.1 mm ⌀OD: 21.9 mm thickness: 8 mm (📦 #3049)
1 object(s) - format STL
Download this 3D model of washer / flat gasket in STL file format. This part features an internal diameter of ⌀19.1 mm and an external diameter of ⌀21.9 mm. The part thickness is 8 mm. There is no finish available.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 19.1 | mm |
| outer diameter | 21.9 | mm |
| thickness | 8 | mm |
| finish | none |
Washer / Flat Gasket STL file ⌀ID: 20.0 mm ⌀OD: 22.0 mm thickness: 2.5 mm + fillets (📦 #2208)
1 object(s) - format STL
3D file of flat gasket / washer in STL 3D file format. This model features an inner diameter of ⌀20.0 mm and an outer diameter of ⌀22.0 mm. The part thickness is 2.5 mm. Fillets are applied on both the inner diameter and the outer diameter, each with a value of 0.1 mm. These finishes are present on both sides.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 20.0 | mm |
| outer diameter | 22.0 | mm |
| thickness | 2.5 | mm |
| finish | fillet | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 0.1 | mm |
Washer / Flat Gasket STL 3D file ⌀ID: 20.8 mm ⌀OD: 50 mm thickness: 12 mm (📦 #2379)
1 object(s) - format STL
Model of flat gasket / washer in STL file format. This part features an internal diameter of ⌀20.8 mm and an external diameter of ⌀50 mm. The thickness is 12 mm. This part has no finish available.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 20.8 | mm |
| outer diameter | 50 | mm |
| thickness | 12 | mm |
| finish | none |
Washer / Flat Gasket STL 3D file ⌀ID: 22 mm ⌀OD: 25 mm thickness: 3 mm + chamfers (📦 #1881)
1 object(s) - format STL
Download this file of washer / gasket in STL format. This part has an internal diameter of ⌀22 mm and an external diameter of ⌀25 mm. The thickness is 3 mm. Chamfers are present on both the internal diameter and the external diameter, each with a value of 0.5 mm. These finishes are present on both sides.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 22 | mm |
| outer diameter | 25 | mm |
| thickness | 3 | mm |
| finish | chamfer | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 0.5 | mm |
Washer / Flat Gasket STL 3D file ⌀ID: 22.5 mm ⌀OD: 41.5 mm thickness: 12.5 mm (📦 #3516)
1 object(s) - format STL
3D file of flat gasket / washer in STL file format. This model has an internal diameter of ⌀22.5 mm and an external diameter of ⌀41.5 mm. The part thickness is 12.5 mm. There is no finish applied.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 22.5 | mm |
| outer diameter | 41.5 | mm |
| thickness | 12.5 | mm |
| finish | none |
Washer / Flat Gasket STL 3D file ⌀ID: 25 mm ⌀OD: 35 mm thickness: 3 mm + chamfer (📦 #1906)
1 object(s) - format STL
File of gasket / washer in STL file format. This part features an internal diameter of ⌀25 mm and an external diameter of ⌀35 mm. The part thickness is 3 mm. A chamfer is applied on the external diameter with a value of 0.1 mm.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 25 | mm |
| outer diameter | 35 | mm |
| thickness | 3 | mm |
| finish | chamfer | |
| finish position | outer | |
| sides | one side | |
| finish value | 0.1 | mm |
Washer / Flat Gasket STL file ⌀ID: 26 mm ⌀OD: 40 mm thickness: 8 mm + chamfers (📦 #1700)
1 object(s) - format STL (5.0/5) 2 vote(s)
File of gasket / washer in STL format. This part has an inner diameter of ⌀26 mm and an outer diameter of ⌀40 mm. The total thickness is 8 mm. Chamfers are present on both the inner diameter and the outer diameter, each with a value of 1.5 mm. These finishes are present on both sides.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 26 | mm |
| outer diameter | 40 | mm |
| thickness | 8 | mm |
| finish | chamfer | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 1.5 | mm |
Washer / Flat Gasket STL file ⌀ID: 26 mm ⌀OD: 40 mm thickness: 12 mm + chamfers (📦 #1701)
1 object(s) - format STL
Download this 3D file of flat gasket / washer in STL format. This part features an inner diameter of ⌀26 mm and an outer diameter of ⌀40 mm. The thickness is 12 mm. Chamfers are present on both the inner diameter and the outer diameter, each with a value of 1.5 mm. These finishes are applied on both sides.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 26 | mm |
| outer diameter | 40 | mm |
| thickness | 12 | mm |
| finish | chamfer | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 1.5 | mm |
Washer / Flat Gasket STL file ⌀ID: 26 mm ⌀OD: 40 mm thickness: 16 mm + chamfers (📦 #1702)
1 object(s) - format STL
Download this 3D file of flat gasket / washer in STL 3D file format. This part features an inner diameter of ⌀26 mm and an outer diameter of ⌀40 mm. The thickness is 16 mm. Chamfers are applied on both the inner diameter and the outer diameter, each with a value of 1.5 mm. These finishes are present on both faces.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 26 | mm |
| outer diameter | 40 | mm |
| thickness | 16 | mm |
| finish | chamfer | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 1.5 | mm |

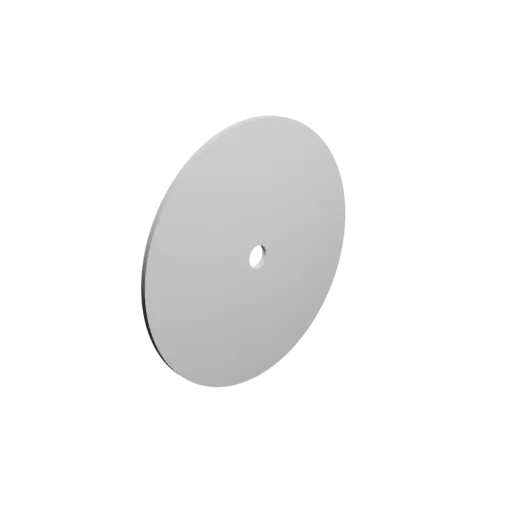

Washer / Flat Gasket STL 3D file ⌀ID: 26.2 mm ⌀OD: 300 mm thickness: 6 mm (📦 #3625)
1 object(s) - format STL
3D model of flat gasket / washer in STL format. This model has an internal diameter of ⌀26.2 mm and an external diameter of ⌀300 mm. The total thickness is 6 mm. No finish is available.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 26.2 | mm |
| outer diameter | 300 | mm |
| thickness | 6 | mm |
| finish | none |
Washer / Flat Gasket STL 3D file ⌀ID: 27 mm ⌀OD: 37 mm thickness: 1 mm + chamfers (📦 #3268)
1 object(s) - format STL (5.0/5) 1 vote(s)
Download this file of washer / flat gasket in STL format. This model has an inner diameter of ⌀27 mm and an outer diameter of ⌀37 mm. The total thickness is 1 mm. Chamfers are applied on both the inner diameter and the outer diameter, each with a value of 0.4 mm. These finishes are applied on both faces.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 27 | mm |
| outer diameter | 37 | mm |
| thickness | 1 | mm |
| finish | chamfer | |
| finish position | inner + oute... | |
| sides | two sides | |
| finish value | 0.4 | mm |
Washer / Flat Gasket STL file ⌀ID: 28 mm ⌀OD: 50 mm thickness: 1.4 mm (📦 #3768)
1 object(s) - format STL
3D model of washer / flat gasket in STL 3D file format. This model has an inner diameter of ⌀28 mm and an outer diameter of ⌀50 mm. The part thickness is 1.4 mm. There is no finish applied.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 28 | mm |
| outer diameter | 50 | mm |
| thickness | 1.4 | mm |
| finish | none |
Washer / Flat Gasket STL file ⌀ID: 28 mm ⌀OD: 75 mm thickness: 1.0 mm (📦 #3819)
1 object(s) - format STL
Model of washer / gasket in STL file format. This model has an internal diameter of ⌀28 mm and an external diameter of ⌀75 mm. The total thickness is 1.0 mm. There is no finish applied.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 28 | mm |
| outer diameter | 75 | mm |
| thickness | 1.0 | mm |
| finish | none |
Can't find the right model?
Create it with your specs
