U-shaped handle - Model #852
1 object(s) - format STL
Loading...
◀
▶
Values for this model
| Parameter | Value | Unit | Label | |
|---|---|---|---|---|
| #1 | width | 35 | mm | wid |
| #2 | length | 140 | mm | len |
| #3 | thickness | 10 | mm | thi |
| #4 | shape (0:square,1:circle) | 0 | sha | |
| #5 | transition (0:right,1:rounded) | 0 | tra | |
| #6 | fillet radius | 0 | mm | fil |
| #7 | hole diameter | 6 | mm | hod |
Representation of the parameters
3D model download
3D file(s) name:
u-shaped handle-wid35mm-len140mm-thi10mm-sha0-tra0-fil0mm-hod6mm_model852-nb0_dd{id}.stl
Download format: zip
Related 3D models
Model #870
1 object(s)
- format STL
| Parameter | Value | Unit |
|---|---|---|
| width | 35 | mm |
| length | 140 | mm |
| thickness | 14 | mm |
| shape (0:square,1:circle) | 0 | |
| transition (0:right,1:rounded) | 0 | |
| fillet radius | 0 | mm |
| hole diameter | 6 | mm |
Model #851
1 object(s)
- format STL
| Parameter | Value | Unit |
|---|---|---|
| width | 35 | mm |
| length | 140 | mm |
| thickness | 10 | mm |
| shape (0:square,1:circle) | 0 | |
| transition (0:right,1:rounded) | 0 | |
| fillet radius | 0 | mm |
| hole diameter | 5 | mm |
Model #869
1 object(s)
- format STL
| Parameter | Value | Unit |
|---|---|---|
| width | 35 | mm |
| length | 140 | mm |
| thickness | 14 | mm |
| shape (0:square,1:circle) | 0 | |
| transition (0:right,1:rounded) | 0 | |
| fillet radius | 0 | mm |
| hole diameter | 5 | mm |
Model #798
1 object(s)
- format STL
| Parameter | Value | Unit |
|---|---|---|
| width | 35 | mm |
| length | 100 | mm |
| thickness | 10 | mm |
| shape (0:square,1:circle) | 0 | |
| transition (0:right,1:rounded) | 0 | |
| fillet radius | 0 | mm |
| hole diameter | 6 | mm |
Model #960
1 object(s)
- format STL
| Parameter | Value | Unit |
|---|---|---|
| width | 50 | mm |
| length | 140 | mm |
| thickness | 10 | mm |
| shape (0:square,1:circle) | 0 | |
| transition (0:right,1:rounded) | 0 | |
| fillet radius | 0 | mm |
| hole diameter | 6 | mm |
Model #858
1 object(s)
- format STL
| Parameter | Value | Unit |
|---|---|---|
| width | 35 | mm |
| length | 140 | mm |
| thickness | 10 | mm |
| shape (0:square,1:circle) | 0 | |
| transition (0:right,1:rounded) | 1 | |
| fillet radius | 0 | mm |
| hole diameter | 6 | mm |

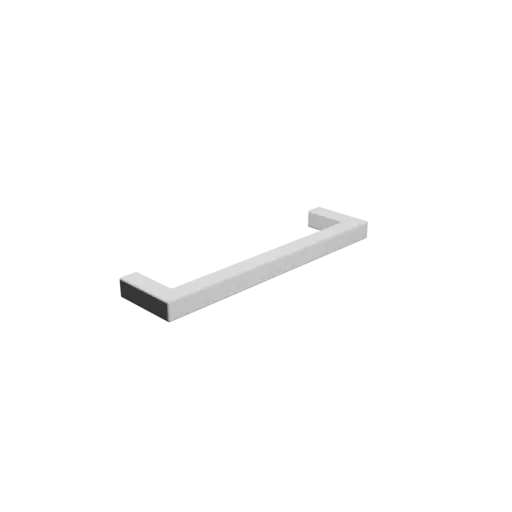

Model #855
