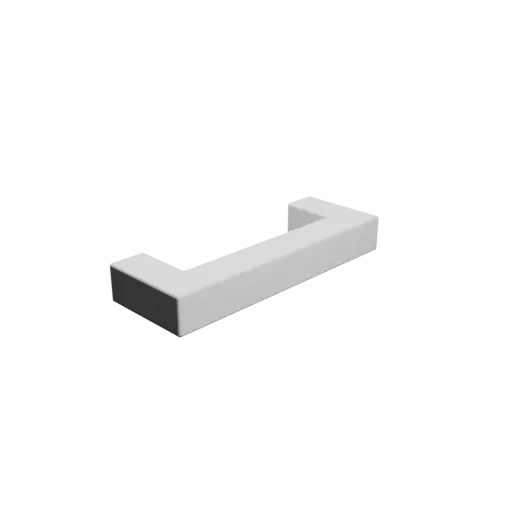

U-shaped handle - Model #836
1 object(s) - format STL
Loading...
◀
▶
Values for this model
| Parameter | Value | Unit | Label | |
|---|---|---|---|---|
| #1 | width | 35 | mm | wid |
| #2 | length | 100 | mm | len |
| #3 | thickness | 20 | mm | thi |
| #4 | shape (0:square,1:circle) | 0 | sha | |
| #5 | transition (0:right,1:rounded) | 0 | tra | |
| #6 | fillet radius | 1 | mm | fil |
| #7 | hole diameter | 5 | mm | hod |
Representation of the parameters
3D model download
3D file(s) name:
u-shaped handle-wid35mm-len100mm-thi20mm-sha0-tra0-fil1mm-hod5mm_model836-nb0_dd{id}.stl
Download format: zip
