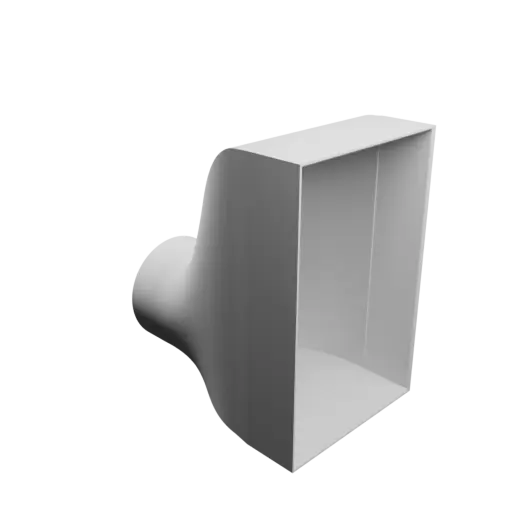

Custom Round-to-Rectangular Tube Adapter STL 3D file ⌀108 mm to 154×240 mm, thickness 5 mm + offset 📦#4099

STL Download STL 1
Create a new model:
from scratch search for a model
Download this 3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀108 mm and a rectangular section with internal dimensions 154×240 mm. The wall thickness is 5 mm and the overall length is 240 mm. The adapter has an offset of 70 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Generation date: 2025-11-30
3D Model Round-to-Rectangular Tube Adapter STL 3D file ⌀108 mm to 154×240 mm, thickness 5 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model4099-nb0_dd{id}.stl : 1.6 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 108 mm (≃4 1/4 in)
#2 cylinder inlet length 20 mm (≃0.79 in)
#3 rectangle internal length 154 mm (≃6 1/16 in)
#4 rectangle internal height 240 mm (≃9 7/16 in)
#5 rectangle inlet length 30 mm (≃1 3/16 in)
#6 offset Z 70 mm (≃2 3/4 in)
#7 offset Y 0 mm (0 in)
#8 total length 240 mm (≃9 7/16 in)
#9 thickness 5 mm (≃3/16 in)
#10 chamfer chamfers on the outside
of the cylindrical tube
and on the inside of
the rectangular tube
Metadata Value
Cylinder internal diameter 98 mm (≃3.86 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha

Related 3D models

To search for a model based on your own parameters, go to the template page Round to rectangular adapter

Round-to-Rectangular Tube Adapter STL 3D file ⌀108 mm to 154×240 mm, thickness 5 mm + offset (📦 #4098)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀108 mm to 154×240 mm, thickness 5 mm + offset
File in STL format of a round-to-rectangular adapter with an outer diameter of ⌀108 mm and a rectangular section with inner dimensions 154×240 mm. The shell thickness is 5 mm and the total length is 240 mm. The adapter has an offset of 70 mm along the Z axis. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 108 mm
cylinder inlet length 30 mm
rectangle internal length 154 mm
rectangle internal height 240 mm
rectangle inlet length 30 mm
offset Z 70 mm
offset Y 0 mm
total length 240 mm
thickness 5 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀108 mm to 154×240 mm, thickness 5 mm + offset (📦 #4096)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀108 mm to 154×240 mm, thickness 5 mm + offset
Model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀108 mm and a rectangular section with internal dimensions 154×240 mm. The shell thickness is 5 mm and the overall length is 240 mm. The adapter has an offset of 70 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 108 mm
cylinder inlet length 50 mm
rectangle internal length 154 mm
rectangle internal height 240 mm
rectangle inlet length 50 mm
offset Z 70 mm
offset Y 0 mm
total length 240 mm
thickness 5 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀108 mm to 154×240 mm, thickness 3 mm + offset (📦 #4100)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀108 mm to 154×240 mm, thickness 3 mm + offset
Download this file in STL format of a round-to-rectangular adapter with an external diameter of ⌀108 mm and a rectangular section with inner dimensions 154×240 mm. The shell thickness is 3 mm and the total length is 240 mm. The adapter has an offset of 70 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 108 mm
cylinder inlet length 20 mm
rectangle internal length 154 mm
rectangle internal height 240 mm
rectangle inlet length 30 mm
offset Z 70 mm
offset Y 0 mm
total length 240 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀108 mm to 154×240 mm, thickness 3 mm + offset (📦 #4101)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀108 mm to 154×240 mm, thickness 3 mm + offset
Download this model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀108 mm and a rectangular section with inner dimensions 154×240 mm. The wall thickness is 3 mm and the total length is 240 mm. The adapter has an offset of 70 mm along the Z axis. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 108 mm
cylinder inlet length 20 mm
rectangle internal length 154 mm
rectangle internal height 240 mm
rectangle inlet length 50 mm
offset Z 70 mm
offset Y 0 mm
total length 240 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀108 mm to 154×240 mm, thickness 3 mm + offset (📦 #4102)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀108 mm to 154×240 mm, thickness 3 mm + offset
Download this 3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀108 mm and a rectangular section with internal dimensions 154×240 mm. The shell thickness is 3 mm and the overall length is 240 mm. The adapter has an offset of 70 mm along the Z axis. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 108 mm
cylinder inlet length 30 mm
rectangle internal length 154 mm
rectangle internal height 240 mm
rectangle inlet length 50 mm
offset Z 70 mm
offset Y 0 mm
total length 240 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀108 mm to 154×240 mm, thickness 5 mm (📦 #4094)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀108 mm to 154×240 mm, thickness 5 mm
Download this file in STL format of a round-to-rectangular adapter with an external diameter of ⌀108 mm and a rectangular section with internal dimensions 154×240 mm. The shell thickness is 5 mm and the total length is 240 mm. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 108 mm
cylinder inlet length 50 mm
rectangle internal length 154 mm
rectangle internal height 240 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 240 mm
thickness 5 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀102 mm to 150×80 mm, thickness 5 mm + offset (📦 #1679)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀102 mm to 150×80 mm, thickness 5 mm + offset
Model in STL format of a round-to-rectangular adapter with an external diameter of ⌀102 mm and a rectangular section with inner dimensions 150×80 mm. The shell thickness is 5 mm and the total length is 170 mm. The adapter has an offset of 50 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 102 mm
cylinder inlet length 30 mm
rectangle internal length 150 mm
rectangle internal height 80 mm
rectangle inlet length 30 mm
offset Z 50 mm
offset Y 0 mm
total length 170 mm
thickness 5 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀110 mm to 220×220 mm, thickness 3 mm + offset (📦 #1649)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀110 mm to 220×220 mm, thickness 3 mm + offset
3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀110 mm and a rectangular section with inner dimensions 220×220 mm. The wall thickness is 3 mm and the overall length is 120 mm. The adapter has an offset of 20 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 110 mm
cylinder inlet length 30 mm
rectangle internal length 220 mm
rectangle internal height 220 mm
rectangle inlet length 50 mm
offset Z 20 mm
offset Y 0 mm
total length 120 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀122 mm to 220×90 mm, thickness 3 mm + offset (📦 #2158)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀122 mm to 220×90 mm, thickness 3 mm + offset
3D file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀122 mm and a rectangular section with internal dimensions 220×90 mm. The wall thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 30 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 122 mm
cylinder inlet length 25 mm
rectangle internal length 220 mm
rectangle internal height 90 mm
rectangle inlet length 35 mm
offset Z 30 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀110 mm to 220×220 mm, thickness 3 mm + offset (📦 #1648)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀110 mm to 220×220 mm, thickness 3 mm + offset
3D model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀110 mm and a rectangular section with internal dimensions 220×220 mm. The shell thickness is 3 mm and the total length is 120 mm. The adapter has an offset of 20 mm along the Z axis. A chamfer is present on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 110 mm
cylinder inlet length 30 mm
rectangle internal length 220 mm
rectangle internal height 220 mm
rectangle inlet length 50 mm
offset Z 20 mm
offset Y 0 mm
total length 120 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀165 mm to 300×120 mm, thickness 3 mm + offset (📦 #2032)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀165 mm to 300×120 mm, thickness 3 mm + offset
Model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀165 mm and a rectangular section with inner dimensions 300×120 mm. The shell thickness is 3 mm and the total length is 200 mm. The adapter has an offset of 35 mm along the Z axis. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 165 mm
cylinder inlet length 30 mm
rectangle internal length 300 mm
rectangle internal height 120 mm
rectangle inlet length 40 mm
offset Z 35 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀125 mm to 220×90 mm, thickness 3 mm + offset (📦 #2698)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀125 mm to 220×90 mm, thickness 3 mm + offset
3D file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀125 mm and a rectangular section with inner dimensions 220×90 mm. The wall thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 60 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 125 mm
cylinder inlet length 30 mm
rectangle internal length 220 mm
rectangle internal height 90 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀100 mm to 200×60 mm, thickness 3 mm + offset (📦 #1747)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀100 mm to 200×60 mm, thickness 3 mm + offset
Download this model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀100 mm and a rectangular section with internal dimensions 200×60 mm. The shell thickness is 3 mm and the total length is 200 mm. The adapter has an offset of 60 mm along the Z axis. A chamfer is applied on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 100 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL 3D file ⌀125 mm to 200×60 mm, thickness 3 mm + offset (📦 #1676)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀125 mm to 200×60 mm, thickness 3 mm + offset
Download this 3D file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀125 mm and a rectangular section with internal dimensions 200×60 mm. The shell thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 60 mm along the Z axis. A chamfer is applied on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 125 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀90 mm to 200×60 mm, thickness 3 mm + offset (📦 #1897)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀90 mm to 200×60 mm, thickness 3 mm + offset
Download this 3D file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀90 mm and a rectangular section with internal dimensions 200×60 mm. The wall thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 60 mm along the Z axis. A chamfer is applied on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 90 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀100 mm to 180×100.2 mm, thickness 3 mm + offset (📦 #1779)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀100 mm to 180×100.2 mm, thickness 3 mm + offset
Model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀100 mm and a rectangular section with internal dimensions 180×100.2 mm. The shell thickness is 3 mm and the total length is 240 mm. The adapter has an offset of 60 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 100 mm
cylinder inlet length 50 mm
rectangle internal length 180 mm
rectangle internal height 100.2 mm
rectangle inlet length 50 mm
offset Z 60 mm
offset Y 0 mm
total length 240 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀128 mm to 60×110 mm, thickness 3 mm + offset (📦 #1784)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀128 mm to 60×110 mm, thickness 3 mm + offset
Download this file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀128 mm and a rectangular section with inner dimensions 60×110 mm. The wall thickness is 3 mm and the total length is 200 mm. The adapter has an offset of 40 mm along the Z axis. A chamfer is present on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 128 mm
cylinder inlet length 60 mm
rectangle internal length 60 mm
rectangle internal height 110 mm
rectangle inlet length 60 mm
offset Z 40 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀101.6 mm to 210.5×170.5 mm, thickness 3 mm + offset (📦 #2833)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀101.6 mm to 210.5×170.5 mm, thickness 3 mm + offset
File in STL format of a round-to-rectangular adapter with an outer diameter of ⌀101.6 mm and a rectangular section with inner dimensions 210.5×170.5 mm. The wall thickness is 3 mm and the overall length is 110 mm. The adapter has an offset of 14 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 101.6 mm
cylinder inlet length 50 mm
rectangle internal length 210.5 mm
rectangle internal height 170.5 mm
rectangle inlet length 30 mm
offset Z 14 mm
offset Y 0 mm
total length 110 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀114.3 mm to 200.5×170.5 mm, thickness 3 mm + offset (📦 #2185)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀114.3 mm to 200.5×170.5 mm, thickness 3 mm + offset
3D model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀114.3 mm and a rectangular section with internal dimensions 200.5×170.5 mm. The shell thickness is 3 mm and the total length is 128 mm. The adapter has an offset of 14 mm along the Z axis. A chamfer is applied on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 114.3 mm
cylinder inlet length 50 mm
rectangle internal length 200.5 mm
rectangle internal height 170.5 mm
rectangle inlet length 50 mm
offset Z 14 mm
offset Y 0 mm
total length 128 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL 3D file ⌀126 mm to 150×70 mm, thickness 3 mm + offset (📦 #3533)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀126 mm to 150×70 mm, thickness 3 mm + offset
Download this 3D file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀126 mm and a rectangular section with internal dimensions 150×70 mm. The wall thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 60 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 126 mm
cylinder inlet length 30 mm
rectangle internal length 150 mm
rectangle internal height 70 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀158 mm to 210×180 mm, thickness 4 mm (📦 #2531)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀158 mm to 210×180 mm, thickness 4 mm
3D file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀158 mm and a rectangular section with internal dimensions 210×180 mm. The shell thickness is 4 mm and the overall length is 83 mm. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 158 mm
cylinder inlet length 35 mm
rectangle internal length 210 mm
rectangle internal height 180 mm
rectangle inlet length 20 mm
offset Z 0 mm
offset Y 0 mm
total length 83 mm
thickness 4 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀98 mm to 200×44 mm, thickness 3 mm + offset (📦 #3868)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀98 mm to 200×44 mm, thickness 3 mm + offset
File in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀98 mm and a rectangular section with inner dimensions 200×44 mm. The wall thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 50 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 98 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 44 mm
rectangle inlet length 60 mm
offset Z 50 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 180×100.2 mm, thickness 3 mm + offset (📦 #1780)

1 object(s) - format STL (5.0/5) 1 vote(s)
Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 180×100.2 mm, thickness 3 mm + offset
Download this model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀100 mm and a rectangular section with internal dimensions 180×100.2 mm. The wall thickness is 3 mm and the overall length is 190 mm. The adapter has an offset of 45 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 100 mm
cylinder inlet length 50 mm
rectangle internal length 180 mm
rectangle internal height 100.2 mm
rectangle inlet length 50 mm
offset Z 45 mm
offset Y 0 mm
total length 190 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×115 mm, thickness 4 mm (📦 #2682)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀150 mm to 200×115 mm, thickness 4 mm
3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀150 mm and a rectangular section with internal dimensions 200×115 mm. The shell thickness is 4 mm and the total length is 200 mm. Chamfers are present on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 150 mm
cylinder inlet length 50 mm
rectangle internal length 200 mm
rectangle internal height 115 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 4 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀110 mm to 150×60 mm, thickness 3 mm + offset (📦 #1643)

1 object(s) - format STL (5.0/5) 1 vote(s)
Round-to-Rectangular Tube Adapter STL file ⌀110 mm to 150×60 mm, thickness 3 mm + offset
Download this model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀110 mm and a rectangular section with inner dimensions 150×60 mm. The wall thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 60 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 110 mm
cylinder inlet length 30 mm
rectangle internal length 150 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀160 mm to 300×120 mm, thickness 3 mm + offset (📦 #2008)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀160 mm to 300×120 mm, thickness 3 mm + offset
Download this 3D model in STL format of a round-to-rectangular adapter with an external diameter of ⌀160 mm and a rectangular section with internal dimensions 300×120 mm. The wall thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 35 mm along the Z axis. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end to ease insertion.
Parameter Value Unit
cylinder outer diameter 160 mm
cylinder inlet length 30 mm
rectangle internal length 300 mm
rectangle internal height 120 mm
rectangle inlet length 80 mm
offset Z 35 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer chamfers on ...

Round-to-Rectangular Tube Adapter STL file ⌀100 mm to 100×50 mm, thickness 3 mm + offset (📦 #3296)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀100 mm to 100×50 mm, thickness 3 mm + offset
Model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀100 mm and a rectangular section with inner dimensions 100×50 mm. The wall thickness is 3 mm and the overall length is 300 mm. The adapter has an offset of 60 mm along the Z axis. A chamfer is present on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 100 mm
cylinder inlet length 40 mm
rectangle internal length 100 mm
rectangle internal height 50 mm
rectangle inlet length 40 mm
offset Z 60 mm
offset Y 0 mm
total length 300 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀120 mm to 200×60 mm, thickness 3 mm + offset (📦 #1533)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀120 mm to 200×60 mm, thickness 3 mm + offset
Download this file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀120 mm and a rectangular section with internal dimensions 200×60 mm. The wall thickness is 3 mm and the total length is 200 mm. The adapter has an offset of 60 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 120 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀125 mm to 200×60 mm, thickness 3 mm + offset (📦 #1496)

1 object(s) - format STL (5.0/5) 3 vote(s)
Round-to-Rectangular Tube Adapter STL file ⌀125 mm to 200×60 mm, thickness 3 mm + offset
Download this file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀125 mm and a rectangular section with inner dimensions 200×60 mm. The shell thickness is 3 mm and the overall length is 200 mm. The adapter has an offset of 60 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 125 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 60 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀199 mm to 204×204 mm, thickness 3 mm (📦 #1892)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀199 mm to 204×204 mm, thickness 3 mm
Download this model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀199 mm and a rectangular section with internal dimensions 204×204 mm. The wall thickness is 3 mm and the total length is 300 mm. Chamfers are applied on the outside of the cylindrical end and on the inside of the rectangular end.
Parameter Value Unit
cylinder outer diameter 199 mm
cylinder inlet length 25 mm
rectangle internal length 204 mm
rectangle internal height 204 mm
rectangle inlet length 25 mm
offset Z 0 mm
offset Y 0 mm
total length 300 mm
thickness 3 mm
chamfer chamfers on ...
