Custom Enclosure with screw-mounted lid STL file: 170×170×270 mm 📦#3932
Generation date: 2025-11-27
3D model download
Free- object #0 enclosure-with-screw-mounted-l_model3932-nb0_dd{id}.stl : 276.4 Ko

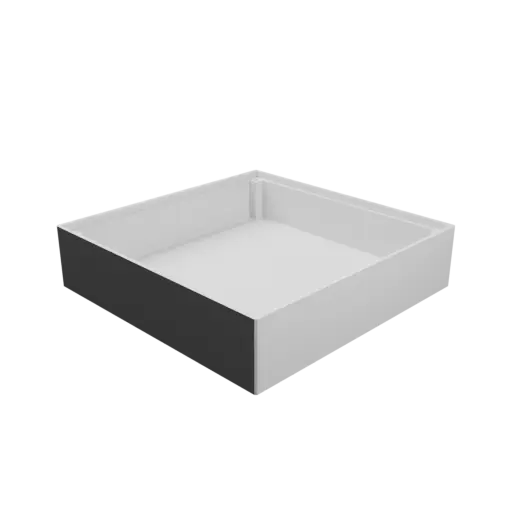

- object #1 enclosure-with-screw-mounted-l_model3932-nb1_dd{id}.stl : 252.6 Ko
STL
Mesh quality :
0.1
0.1
No compliance warranty
License: CC BY - Creative commons
(attribution - commercial use allowed)
Safe download
Values for this model
This model was generated by the Enclosure with screw-mounted lid template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | length | 170 mm (≃6 11/16 in) |
| #2 | width | 170 mm (≃6 11/16 in) |
| #3 | total height | 270 mm (≃10 5/8 in) |
| #4 | lid height | 40 mm (≃1 9/16 in) |
| #5 | wall thickness | 4 mm (≃0.16 in) |
| #6 | screw margin | 0 mm (0 in) |
| #7 | fit clearance | 0.2 mm (≃0 in) |
| #8 | cooling level | - |
| #9 | cooling zone(s) | no cutouts |
| Metadata | Value |
|---|---|
| Internal length excluding screw mounting posts | 162 mm (≃6 3/8 in) |
| Internal width excluding screw mounting posts | 162 mm (≃6 3/8 in) |
| Internal height | 261 mm (≃10.28 in) |
Parameter overview
- The thickness of the upper lid shell is always 5 mm.
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 length | len |
| #2 width | wid |
| #3 total height | Thei |
| #4 lid height | Lhei |
| #5 wall thickness | waT |
| #6 screw margin | Tmrg |
| #7 fit clearance | Imrg |
| #8 cooling level | cooL |
| #9 cooling zone(s) | cooZ |
Related 3D models
To search for a model based on your own parameters, go to the template page Enclosure with screw-mounted lid
Enclosure with screw-mounted lid STL file: 150×150×200 mm (📦 #1435)
2 object(s) - format STL
Download this enclosure with lid in STL format. The dimensions are 150 mm long by 150 mm wide and 200 mm high. The cover measures 30 mm high. Wall thickness is 3 mm. The enclosure does not have cooling.
| Parameter | Value | Unit |
|---|---|---|
| length | 150 | mm |
| width | 150 | mm |
| total height | 200 | mm |
| lid height | 30 | mm |
| wall thickness | 3 | mm |
| screw margin | 0 | mm |
| fit clearance | 0.2 | mm |
| cooling zone(s) | no cutouts |
Enclosure with screw-mounted lid STL file: 200×200×150 mm (📦 #3165)
2 object(s) - format STL
Enclosure with a screwed lid in 3D STL format. The dimensions are 200 mm long by 200 mm wide and 150 mm high. The cover only is 20 mm high. Side thickness is 4 mm. The enclosure does not have cooling.
| Parameter | Value | Unit |
|---|---|---|
| length | 200 | mm |
| width | 200 | mm |
| total height | 150 | mm |
| lid height | 20 | mm |
| wall thickness | 4 | mm |
| screw margin | 0 | mm |
| fit clearance | 0.1 | mm |
| cooling zone(s) | no cutouts |
Enclosure with screw-mounted lid STL file: 77×77×300 mm (📦 #2264)
2 object(s) - format STL
Enclosure with lid in 3D STL format. The dimensions are 77 mm long by 77 mm wide and 300 mm high. The lid is 60 mm high. Wall thickness is 3 mm. The enclosure does not feature cooling.
| Parameter | Value | Unit |
|---|---|---|
| length | 77 | mm |
| width | 77 | mm |
| total height | 300 | mm |
| lid height | 60 | mm |
| wall thickness | 3 | mm |
| screw margin | 0 | mm |
| fit clearance | 0.1 | mm |
| cooling zone(s) | no cutouts |
Enclosure with screw-mounted lid STL 3D file: 250×150×175 mm (📦 #1958)
2 object(s) - format STL
Download this enclosure with a screwed lid in STL format. The dimensions are 250 mm long by 150 mm wide and 175 mm high. The lid only is 10 mm high. Wall thickness is 4 mm. The enclosure does not feature cooling.
| Parameter | Value | Unit |
|---|---|---|
| length | 250 | mm |
| width | 150 | mm |
| total height | 175 | mm |
| lid height | 10 | mm |
| wall thickness | 4 | mm |
| screw margin | 0 | mm |
| fit clearance | 0.2 | mm |
| cooling zone(s) | no cutouts |

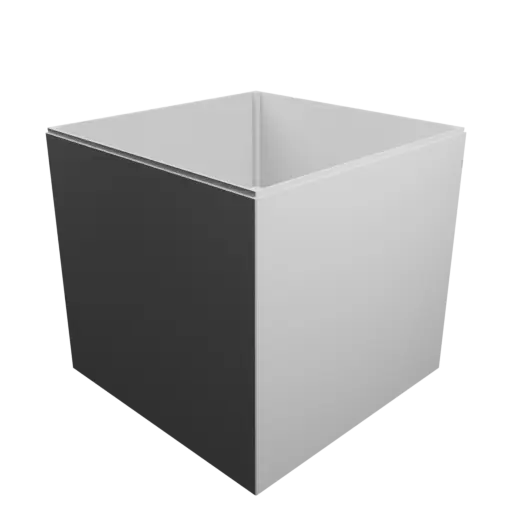

Enclosure with screw-mounted lid STL 3D file: 300×300×300 mm (📦 #3673)
