Custom Round air vent STL file ∅ 120 mm, slat angle: 50° with central reinforcement 📦#3866

STL Download STL 1
Create a new model:
from scratch search for a model
3D design of a round vent cover for ventilation in STL format. Its male diameter is 120 mm. The slats have a steep angle of 50° and a low thickness of 1.4 mm. A central reinforcement secures the whole structure. This ventilation grille has a prominent flange of 13 mm. The overall diameter of this model is 146 mm.
Generation date: 2025-11-27
3D Model Round air vent STL file ∅ 120 mm, slat angle: 50° with central reinforcement

3D model download

Free
  • round-air-vent-dia120mm-slD50d_model3866-nb0_dd{id}.stl : 3.8 Mo
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - non commercial use - no derivatives)
Safe download

Values for this model

This model was generated by the Round air vent grill template, with the following values:
Parameter Value
#1 male diameter 120 mm (≃4.72 in)
#2 slat angle 50 °
#3 slat thickness 1.4 mm (≃1/16 in)
#4 flange width 13 mm (≃1/2 in)
#5 central reinforcement yes
Metadata Value
Total diameter (including flange) 146 mm (≃5 3/4 in)
Total thickness 25 mm (≃0.98 in)
illustration of the parameters
Parameter overview

  • The total thickness of the vent is 25 mm.
  • Whatever the parameters, the slats never overlap. This ensures an optimal airflow. At the same time, the slats form an almost opaque screen along the axis.
  • The slats are actually shaped as parallelograms rather than rectangles. This ensures better printability.
  • The slats and the central reinforcement (if present) feature a 0.40 mm fillet on all edges. This improves airflow and prevents potential whistling.
  • The collar, if present, is 3 mm thick and has a 2 mm fillet for aesthetic purposes.
  • The male insertion area is 3 mm thick and has a 1 mm fillet on both edges to facilitate insertion into the intended slot.
  • The central reinforcement, if present, is 2 mm thick and spans the entire projected width of the slats.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 male diameter dia
#2 slat angle slD
#3 slat thickness slT
#4 flange width flW
#5 central reinforcement renf

Related 3D models

To search for a model based on your own parameters, go to the template page Round air vent grill

Round air vent STL 3D file ∅ 99.8 mm, slat angle: 45° with central reinforcement (📦 #3879)

1 object(s) - format STL
Round air vent STL 3D file ∅ 99.8 mm, slat angle: 45° with central reinforcement
3D model of a round grille for ventilation in STL format. Its insertion diameter measures 99.8 mm. The slats have an angle of 45° and a low thickness of 1.6 mm. A centered vertical reinforcement strengthens the slats. This 3D vent grille has a collar of 10 mm. The overall diameter of this model is 119.8 mm.
Parameter Value Unit
male diameter 99.8 mm
slat angle 45 °
slat thickness 1.6 mm
flange width 10 mm
central reinforcement yes

Round air vent STL file ∅ 88 mm, slat angle: 45° with central reinforcement (📦 #1829)

1 object(s) - format STL
Round air vent STL file ∅ 88 mm, slat angle: 45° with central reinforcement
Design of a round vent cover for ventilation in STL format. Its male diameter measures 88 mm. The slats have an angle of 45° and a low thickness of 1.6 mm. A vertical reinforcement secures the slats. This vent cover features a prominent flange of 15 mm. The full diameter of this model is 118 mm.
Parameter Value Unit
male diameter 88 mm
slat angle 45 °
slat thickness 1.6 mm
flange width 15 mm
central reinforcement yes

Round air vent STL 3D file ∅ 146 mm, slat angle: 45° with central reinforcement (📦 #3064)

1 object(s) - format STL
Round air vent STL 3D file ∅ 146 mm, slat angle: 45° with central reinforcement
3D design of a round grille for air circulation in STL format. Its male diameter is 146 mm. The slats have an angle of 45° and a low thickness of 1.4 mm. A centered vertical reinforcement secures the slats. This aeration grille features a collar of 8 mm. The total diameter of the model is 162 mm.
Parameter Value Unit
male diameter 146 mm
slat angle 45 °
slat thickness 1.4 mm
flange width 8 mm
central reinforcement yes

Round air vent STL 3D file ∅ 168 mm, slat angle: 45° with central reinforcement (📦 #1428)

1 object(s) - format STL
Round air vent STL 3D file ∅ 168 mm, slat angle: 45° with central reinforcement
3D model of a round vent cover for air circulation in STL format. Its insertion diameter measures 168 mm. The slats have an angle of 45° and a low thickness of 1.4 mm. A central reinforcement secures the slats. This ventilation grille has a flange of 10 mm. The full diameter of this model is 188 mm.
Parameter Value Unit
male diameter 168 mm
slat angle 45 °
slat thickness 1.4 mm
flange width 10 mm
central reinforcement yes

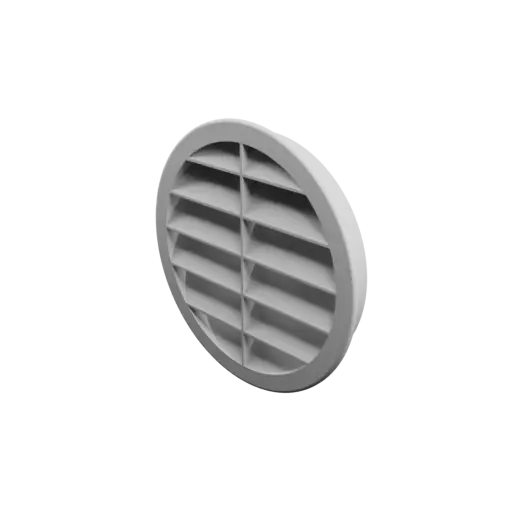

Round air vent STL file ∅ 156 mm, slat angle: 60° with central reinforcement (📦 #3220)

1 object(s) - format STL
Round air vent STL file ∅ 156 mm, slat angle: 60° with central reinforcement
3D model of a round air vent for ventilation in STL format. Its insertion diameter is 156 mm. The slats have a steep angle of 60° and a low thickness of 1.4 mm. A centered vertical reinforcement secures the slats. This vent cover features a collar of 10 mm. The total diameter of this model is 176 mm.
Parameter Value Unit
male diameter 156 mm
slat angle 60 °
slat thickness 1.4 mm
flange width 10 mm
central reinforcement yes

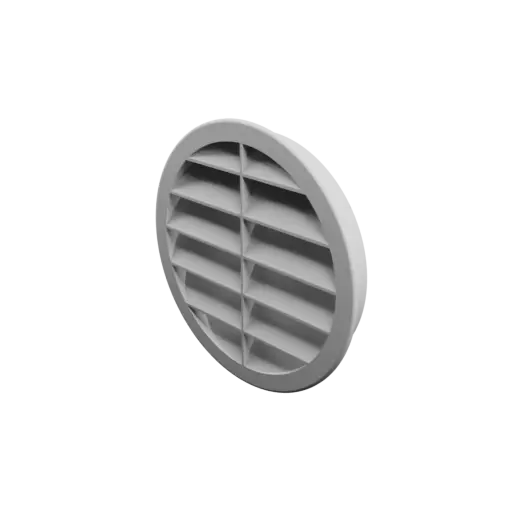

Round air vent STL 3D file ∅ 156 mm, slat angle: 60° with central reinforcement (📦 #3222)
