Custom Round box with lid STL file ⌀ 69 mm - Height: 200 mm, Shell: 2 mm 📦#3817

STL Download STL 1
Create a new model easy
from scratch search for a model
Download this circular box model in STL format. Its diameter is 69 mm and its height is 200 mm. The wall width is 2 mm. A fillet located at the bottom of the box makes it easier to grip stored objects inside.
Generation date: 2025-11-26
thumb object 0
object #0

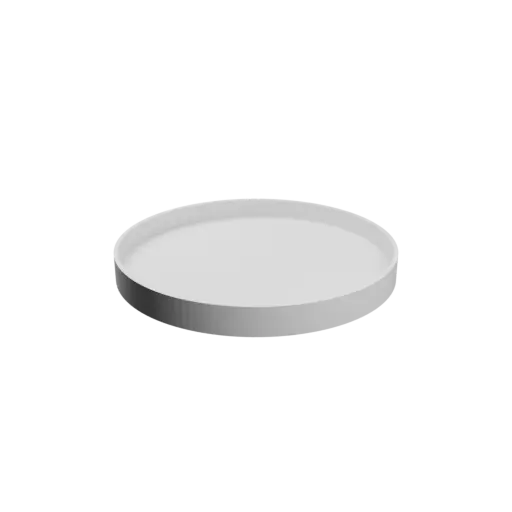

thumb object 1
object #1
3D Model Round box with lid STL file ⌀ 69 mm - Height: 200 mm, Shell: 2 mm

3D model download

Free
  • object #0 round-box-with-lid-dia69-hgt20_model3817-nb0_dd{id}.stl : 467.5 Ko
  • object #1 round-box-with-lid-dia69-hgt20_model3817-nb1_dd{id}.stl : 49.1 Ko
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round box with lid template, with the following values:
Parameter Value
#1 external diameter 69 mm (≃2.72 in)
#2 total height 200 mm (≃7 7/8 in)
#3 wall thickness 2 mm (≃0.08 in)
#4 fit clearance 0.3 mm (≃0 in)
#5 inner bottom fillet 2 mm (≃0.08 in)
Metadata Value
inner diameter 65 mm (≃2 9/16 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 external diameter dia
#2 total height hgt
#3 wall thickness thi
#4 fit clearance mrg
#5 inner bottom fillet fil
