Custom Round box with lid STL 3D file ⌀ 100 mm - Height: 50 mm, Shell: 5 mm 📦#3722

STL Download STL 1
Create a new model:
from scratch search for a model
Get this round box in STL format. Its diameter is 100 mm and its height is 50 mm. The wall width is 5 mm. A fillet located at the bottom of the box makes it easier to grip objects located inside.
Generation date: 2025-11-26
thumb object 0
object #0

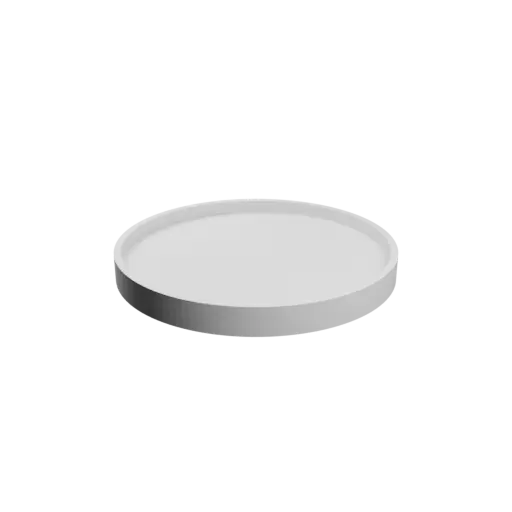

thumb object 1
object #1
3D Model Round box with lid STL 3D file ⌀ 100 mm - Height: 50 mm, Shell: 5 mm

3D model download

Free
  • object #0 round-box-with-lid-dia100-hgt5_model3722-nb0_dd{id}.stl : 467.5 Ko
  • object #1 round-box-with-lid-dia100-hgt5_model3722-nb1_dd{id}.stl : 49.1 Ko
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Round box with lid template, with the following values:
Parameter Value
#1 external diameter 100 mm (≃3 15/16 in)
#2 total height 50 mm (≃1.97 in)
#3 wall thickness 5 mm (≃3/16 in)
#4 fit clearance 1 mm (≃0.04 in)
#5 inner bottom fillet 2 mm (≃0.08 in)
Metadata Value
inner diameter 90 mm (≃3.54 in)
illustration of the parameters
Parameter overview

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 external diameter dia
#2 total height hgt
#3 wall thickness thi
#4 fit clearance mrg
#5 inner bottom fillet fil
