Custom Enclosure with screw-mounted lid STL file: 40×40×20 mm (with ventilation on the lid) 📦#3716

STL Download STL
Create a new model:
from scratch search for a model
Enclosure model with a screwed lid in STL format. The dimensions are 40 mm long by 40 mm wide and 20 mm high. The lid measures 10 mm high. Wall thickness is 3 mm. This enclosure features marked cooling area on the lid.
Generation date: 2025-11-26
thumb object 0
object #0

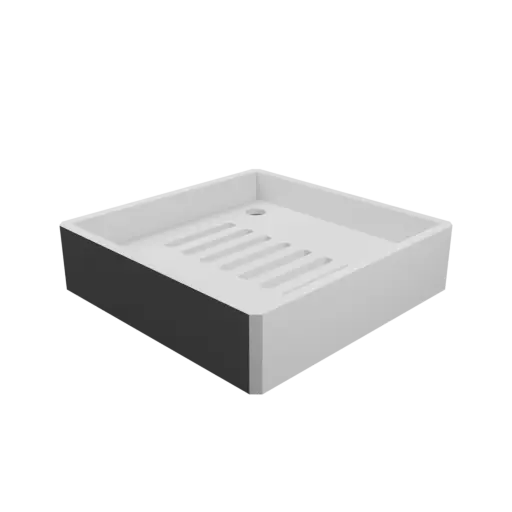

thumb object 1
object #1
3D Model Enclosure with screw-mounted lid STL file: 40×40×20 mm (with ventilation on the lid)

3D model download

Free
  • object #0 enclosure-with-screw-mounted-l_model3716-nb0_dd{id}.stl : 276.4 Ko
  • object #1 enclosure-with-screw-mounted-l_model3716-nb1_dd{id}.stl : 381.7 Ko
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Enclosure with screw-mounted lid template, with the following values:
Parameter Value
#1 length 40 mm (≃1 9/16 in)
#2 width 40 mm (≃1 9/16 in)
#3 total height 20 mm (≃0.79 in)
#4 lid height 10 mm (≃0.39 in)
#5 wall thickness 3 mm (≃1/8 in)
#6 screw margin 0.1 mm (<0.01 in)
#7 fit clearance 0.1 mm (<0.01 in)
#8 cooling level 10
#9 cooling zone(s) cutouts on the lid
Metadata Value
Internal length excluding screw mounting posts 34 mm (≃1.34 in)
Internal width excluding screw mounting posts 34 mm (≃1.34 in)
Internal height 12 mm (≃0.47 in)
illustration of the parameters
Parameter overview

  • The thickness of the upper lid shell is always 5 mm.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 length len
#2 width wid
#3 total height Thei
#4 lid height Lhei
#5 wall thickness waT
#6 screw margin Tmrg
#7 fit clearance Imrg
#8 cooling level cooL
#9 cooling zone(s) cooZ
