Custom Round-to-Rectangular Tube Adapter STL 3D file ⌀50 mm to 120×126 mm, thickness 3 mm 📦#3483

STL Download STL 1
Create a new model:
from scratch search for a model
Model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀50 mm and a rectangular section with internal dimensions 120×126 mm. The shell thickness is 3 mm and the total length is 200 mm.
Generation date: 2025-11-20
3D Model Round-to-Rectangular Tube Adapter STL 3D file ⌀50 mm to 120×126 mm, thickness 3 mm

3D model download

Free
  • round-to-rectangular-adapter-d_model3483-nb0_dd{id}.stl : 1.6 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 50 mm (≃1.97 in)
#2 cylinder inlet length 50 mm (≃1.97 in)
#3 rectangle internal length 120 mm (≃4.72 in)
#4 rectangle internal height 126 mm (≃4.96 in)
#5 rectangle inlet length 50 mm (≃1.97 in)
#6 offset Z 0 mm (0 in)
#7 offset Y 0 mm (0 in)
#8 total length 200 mm (≃7 7/8 in)
#9 thickness 3 mm (≃1/8 in)
#10 chamfer no chamfer
Metadata Value
Cylinder internal diameter 44 mm (≃1.73 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha

Related 3D models

To search for a model based on your own parameters, go to the template page Round to rectangular adapter

Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 100×100 mm, thickness 3 mm (📦 #1614)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 100×100 mm, thickness 3 mm
Model in STL format of a round-to-rectangular adapter with an external diameter of ⌀100 mm and a rectangular section with inner dimensions 100×100 mm. The shell thickness is 3 mm and the overall length is 200 mm.
Parameter Value Unit
cylinder outer diameter 100 mm
cylinder inlet length 50 mm
rectangle internal length 100 mm
rectangle internal height 100 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

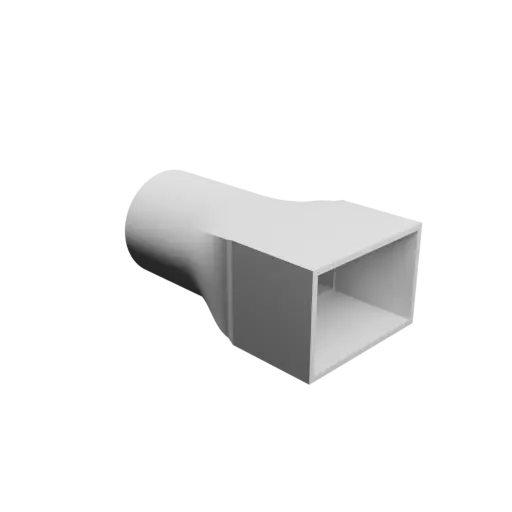

Round-to-Rectangular Tube Adapter STL 3D file ⌀64.4 mm to 76.2×50 mm, thickness 3 mm (📦 #3492)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀64.4 mm to 76.2×50 mm, thickness 3 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀64.4 mm and a rectangular section with inner dimensions 76.2×50 mm. The shell thickness is 3 mm and the overall length is 150 mm.
Parameter Value Unit
cylinder outer diameter 64.4 mm
cylinder inlet length 50 mm
rectangle internal length 76.2 mm
rectangle internal height 50 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀52 mm to 100×60 mm, thickness 3 mm + offset (📦 #1873)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀52 mm to 100×60 mm, thickness 3 mm + offset
Download this 3D model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀52 mm and a rectangular section with internal dimensions 100×60 mm. The shell thickness is 3 mm and the total length is 120 mm. The adapter has an offset of 3 mm along the Y axis and 3 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 52 mm
cylinder inlet length 50 mm
rectangle internal length 100 mm
rectangle internal height 60 mm
rectangle inlet length 50 mm
offset Z 3 mm
offset Y 3 mm
total length 120 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀90 mm to 76×76 mm, thickness 3 mm (📦 #2367)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀90 mm to 76×76 mm, thickness 3 mm
Model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀90 mm and a rectangular section with internal dimensions 76×76 mm. The wall thickness is 3 mm and the overall length is 120 mm.
Parameter Value Unit
cylinder outer diameter 90 mm
cylinder inlet length 50 mm
rectangle internal length 76 mm
rectangle internal height 76 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 120 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀67 mm to 113×72 mm, thickness 3 mm + offset (📦 #3138)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀67 mm to 113×72 mm, thickness 3 mm + offset
3D model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀67 mm and a rectangular section with inner dimensions 113×72 mm. The shell thickness is 3 mm and the total length is 147.2 mm. The adapter has an offset of 2 mm along the Y axis and 2 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 67 mm
cylinder inlet length 76 mm
rectangle internal length 113 mm
rectangle internal height 72 mm
rectangle inlet length 51 mm
offset Z 2 mm
offset Y 2 mm
total length 147.2 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀102 mm to 170×100 mm, thickness 3 mm (📦 #1680)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀102 mm to 170×100 mm, thickness 3 mm
3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀102 mm and a rectangular section with internal dimensions 170×100 mm. The wall thickness is 3 mm and the overall length is 150 mm.
Parameter Value Unit
cylinder outer diameter 102 mm
cylinder inlet length 30 mm
rectangle internal length 170 mm
rectangle internal height 100 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀110 mm to 50×120 mm, thickness 2 mm (📦 #2023)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀110 mm to 50×120 mm, thickness 2 mm
Model in STL format of a round-to-rectangular adapter with an external diameter of ⌀110 mm and a rectangular section with internal dimensions 50×120 mm. The shell thickness is 2 mm and the total length is 200 mm. A chamfer is present on the outside of the cylindrical end to ease insertion.
Parameter Value Unit
cylinder outer diameter 110 mm
cylinder inlet length 50 mm
rectangle internal length 50 mm
rectangle internal height 120 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 2 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀50 mm to 152×45 mm, thickness 3 mm (📦 #3347)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀50 mm to 152×45 mm, thickness 3 mm
Download this model in STL format of a round-to-rectangular adapter with an external diameter of ⌀50 mm and a rectangular section with internal dimensions 152×45 mm. The shell thickness is 3 mm and the overall length is 110.3 mm. A chamfer is present on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 50 mm
cylinder inlet length 50 mm
rectangle internal length 152 mm
rectangle internal height 45 mm
rectangle inlet length 40 mm
offset Z 0 mm
offset Y 0 mm
total length 110.3 mm
thickness 3 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀92 mm to 160×80 mm, thickness 2 mm + offset (📦 #3422)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀92 mm to 160×80 mm, thickness 2 mm + offset
Download this 3D model in STL format of a round-to-rectangular adapter with an external diameter of ⌀92 mm and a rectangular section with internal dimensions 160×80 mm. The shell thickness is 2 mm and the overall length is 140 mm. The adapter has an offset of 12.5 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 92 mm
cylinder inlet length 50 mm
rectangle internal length 160 mm
rectangle internal height 80 mm
rectangle inlet length 50 mm
offset Z 12.5 mm
offset Y 0 mm
total length 140 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀75 mm to 105×105 mm, thickness 3 mm (📦 #1746)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀75 mm to 105×105 mm, thickness 3 mm
3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀75 mm and a rectangular section with internal dimensions 105×105 mm. The shell thickness is 3 mm and the overall length is 80 mm.
Parameter Value Unit
cylinder outer diameter 75 mm
cylinder inlet length 30 mm
rectangle internal length 105 mm
rectangle internal height 105 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 80 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀80 mm to 105×50 mm, thickness 2 mm (📦 #1772)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀80 mm to 105×50 mm, thickness 2 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀80 mm and a rectangular section with inner dimensions 105×50 mm. The wall thickness is 2 mm and the total length is 150 mm.
Parameter Value Unit
cylinder outer diameter 80 mm
cylinder inlet length 50 mm
rectangle internal length 105 mm
rectangle internal height 50 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀85 mm to 105×50 mm, thickness 2 mm (📦 #1654)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀85 mm to 105×50 mm, thickness 2 mm
Download this 3D model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀85 mm and a rectangular section with internal dimensions 105×50 mm. The shell thickness is 2 mm and the overall length is 150 mm.
Parameter Value Unit
cylinder outer diameter 85 mm
cylinder inlet length 50 mm
rectangle internal length 105 mm
rectangle internal height 50 mm
rectangle inlet length 46 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀72 mm to 118×77 mm, thickness 4 mm + offset (📦 #3135)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀72 mm to 118×77 mm, thickness 4 mm + offset
3D file in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀72 mm and a rectangular section with internal dimensions 118×77 mm. The shell thickness is 4 mm and the overall length is 147.2 mm. The adapter has an offset of 2 mm along the Y axis and 2 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 72 mm
cylinder inlet length 76 mm
rectangle internal length 118 mm
rectangle internal height 77 mm
rectangle inlet length 51 mm
offset Z 2 mm
offset Y 2 mm
total length 147.2 mm
thickness 4 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀120 mm to 120×120 mm, thickness 3 mm + offset (📦 #1799)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀120 mm to 120×120 mm, thickness 3 mm + offset
Download this 3D model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀120 mm and a rectangular section with internal dimensions 120×120 mm. The shell thickness is 3 mm and the total length is 200 mm. The adapter has an offset of 2 mm along the Y axis and 2 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 120 mm
cylinder inlet length 50 mm
rectangle internal length 120 mm
rectangle internal height 120 mm
rectangle inlet length 100 mm
offset Z 2 mm
offset Y 2 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀125 mm to 220×90 mm, thickness 3 mm (📦 #2671)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀125 mm to 220×90 mm, thickness 3 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀125 mm and a rectangular section with inner dimensions 220×90 mm. The shell thickness is 3 mm and the total length is 200 mm.
Parameter Value Unit
cylinder outer diameter 125 mm
cylinder inlet length 30 mm
rectangle internal length 220 mm
rectangle internal height 90 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀85 mm to 105×50 mm, thickness 2 mm + offset (📦 #1656)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀85 mm to 105×50 mm, thickness 2 mm + offset
Download this model in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀85 mm and a rectangular section with internal dimensions 105×50 mm. The shell thickness is 2 mm and the overall length is 150 mm. The adapter has an offset of 15 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 85 mm
cylinder inlet length 50 mm
rectangle internal length 105 mm
rectangle internal height 50 mm
rectangle inlet length 46 mm
offset Z 15 mm
offset Y 0 mm
total length 150 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀75 mm to 105×105 mm, thickness 3 mm (📦 #1748)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀75 mm to 105×105 mm, thickness 3 mm
File in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀75 mm and a rectangular section with inner dimensions 105×105 mm. The shell thickness is 3 mm and the overall length is 80 mm.
Parameter Value Unit
cylinder outer diameter 75 mm
cylinder inlet length 30 mm
rectangle internal length 105 mm
rectangle internal height 105 mm
rectangle inlet length 19 mm
offset Z 0 mm
offset Y 0 mm
total length 80 mm
thickness 3 mm
chamfer no chamfer

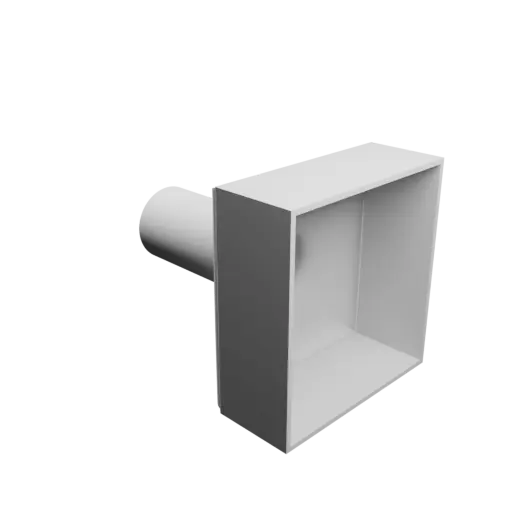

Round-to-Rectangular Tube Adapter STL file ⌀50 mm to 120×126 mm, thickness 3 mm (📦 #3482)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀50 mm to 120×126 mm, thickness 3 mm
3D file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀50 mm and a rectangular section with inner dimensions 120×126 mm. The wall thickness is 3 mm and the total length is 170 mm.
Parameter Value Unit
cylinder outer diameter 50 mm
cylinder inlet length 100 mm
rectangle internal length 120 mm
rectangle internal height 126 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 170 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 50×50 mm, thickness 3 mm (📦 #1914)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀100 mm to 50×50 mm, thickness 3 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an outer diameter of ⌀100 mm and a rectangular section with inner dimensions 50×50 mm. The wall thickness is 3 mm and the overall length is 300 mm.
Parameter Value Unit
cylinder outer diameter 100 mm
cylinder inlet length 50 mm
rectangle internal length 50 mm
rectangle internal height 50 mm
rectangle inlet length 50 mm
offset Z 0 mm
offset Y 0 mm
total length 300 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀90 mm to 100×50 mm, thickness 3 mm (📦 #2858)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀90 mm to 100×50 mm, thickness 3 mm
Download this 3D model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀90 mm and a rectangular section with internal dimensions 100×50 mm. The wall thickness is 3 mm and the total length is 200 mm.
Parameter Value Unit
cylinder outer diameter 90 mm
cylinder inlet length 20 mm
rectangle internal length 100 mm
rectangle internal height 50 mm
rectangle inlet length 20 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀125 mm to 200×60 mm, thickness 3 mm (📦 #2066)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀125 mm to 200×60 mm, thickness 3 mm
Download this 3D file in STL format of a round-to-rectangular adapter with an external diameter of ⌀125 mm and a rectangular section with internal dimensions 200×60 mm. The shell thickness is 3 mm and the overall length is 200 mm.
Parameter Value Unit
cylinder outer diameter 125 mm
cylinder inlet length 30 mm
rectangle internal length 200 mm
rectangle internal height 60 mm
rectangle inlet length 30 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL 3D file ⌀76 mm to 160×78 mm, thickness 3 mm (📦 #2582)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀76 mm to 160×78 mm, thickness 3 mm
Download this model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀76 mm and a rectangular section with inner dimensions 160×78 mm. The wall thickness is 3 mm and the overall length is 200 mm.
Parameter Value Unit
cylinder outer diameter 76 mm
cylinder inlet length 76 mm
rectangle internal length 160 mm
rectangle internal height 78 mm
rectangle inlet length 100 mm
offset Z 0 mm
offset Y 0 mm
total length 200 mm
thickness 3 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀100 mm to 150×50 mm, thickness 2 mm (📦 #1616)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀100 mm to 150×50 mm, thickness 2 mm
File in STL format of a round-to-rectangular adapter with an external diameter of ⌀100 mm and a rectangular section with inner dimensions 150×50 mm. The wall thickness is 2 mm and the overall length is 150 mm. A chamfer is applied on the outside of the cylindrical end to ease insertion.
Parameter Value Unit
cylinder outer diameter 100 mm
cylinder inlet length 50 mm
rectangle internal length 150 mm
rectangle internal height 50 mm
rectangle inlet length 40 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 2 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL 3D file ⌀84 mm to 85×85 mm, thickness 2 mm (📦 #3219)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL 3D file ⌀84 mm to 85×85 mm, thickness 2 mm
Model in STL format of a round-to-rectangular adapter with an external diameter of ⌀84 mm and a rectangular section with internal dimensions 85×85 mm. The shell thickness is 2 mm and the overall length is 150 mm.
Parameter Value Unit
cylinder outer diameter 84 mm
cylinder inlet length 30 mm
rectangle internal length 85 mm
rectangle internal height 85 mm
rectangle inlet length 85 mm
offset Z 0 mm
offset Y 0 mm
total length 150 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀85 mm to 105×50 mm, thickness 2 mm + offset (📦 #1655)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀85 mm to 105×50 mm, thickness 2 mm + offset
3D file in STL format of a round-to-rectangular tube adapter with an outer diameter of ⌀85 mm and a rectangular section with internal dimensions 105×50 mm. The wall thickness is 2 mm and the overall length is 150 mm. The adapter has an offset of 23 mm along the Z axis.
Parameter Value Unit
cylinder outer diameter 85 mm
cylinder inlet length 50 mm
rectangle internal length 105 mm
rectangle internal height 50 mm
rectangle inlet length 46 mm
offset Z 23 mm
offset Y 0 mm
total length 150 mm
thickness 2 mm
chamfer no chamfer

Round-to-Rectangular Tube Adapter STL file ⌀70 mm to 70×90 mm, thickness 2 mm + offset (📦 #2046)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀70 mm to 70×90 mm, thickness 2 mm + offset
Download this model in STL format of a round-to-rectangular tube adapter with an external diameter of ⌀70 mm and a rectangular section with internal dimensions 70×90 mm. The shell thickness is 2 mm and the total length is 160 mm. The adapter has an offset of 5 mm along the Y axis and 5 mm along the Z axis. A chamfer is applied on the outside of the cylindrical end.
Parameter Value Unit
cylinder outer diameter 70 mm
cylinder inlet length 50 mm
rectangle internal length 70 mm
rectangle internal height 90 mm
rectangle inlet length 90 mm
offset Z 5 mm
offset Y 5 mm
total length 160 mm
thickness 2 mm
chamfer chamfer on t...

Round-to-Rectangular Tube Adapter STL file ⌀75 mm to 102×102 mm, thickness 3 mm (📦 #1759)

1 object(s) - format STL
Round-to-Rectangular Tube Adapter STL file ⌀75 mm to 102×102 mm, thickness 3 mm
3D model in STL format of a round-to-rectangular adapter with an external diameter of ⌀75 mm and a rectangular section with inner dimensions 102×102 mm. The wall thickness is 3 mm and the total length is 68 mm.
Parameter Value Unit
cylinder outer diameter 75 mm
cylinder inlet length 30 mm
rectangle internal length 102 mm
rectangle internal height 102 mm
rectangle inlet length 18 mm
offset Z 0 mm
offset Y 0 mm
total length 68 mm
thickness 3 mm
chamfer no chamfer
