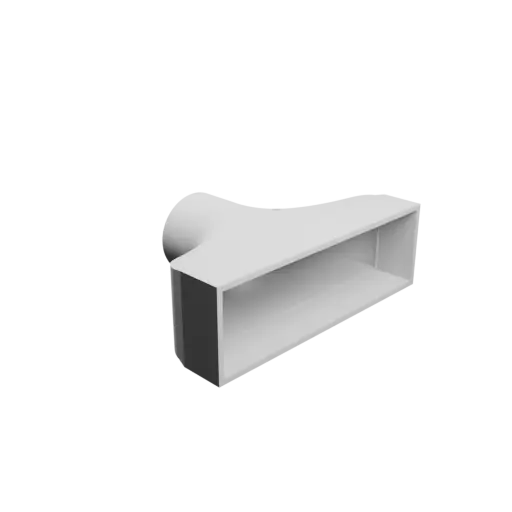

Custom Round-to-Rectangular Tube Adapter STL file ⌀50 mm to 152×45 mm, thickness 3 mm 📦#3347

STL Download STL 1
Create a new model:
from scratch search for a model
Download this model in STL format of a round-to-rectangular adapter with an external diameter of ⌀50 mm and a rectangular section with internal dimensions 152×45 mm. The shell thickness is 3 mm and the overall length is 110.3 mm. A chamfer is present on the outside of the cylindrical end.
Generation date: 2025-11-16
3D Model Round-to-Rectangular Tube Adapter STL file ⌀50 mm to 152×45 mm, thickness 3 mm

3D model download

Free
  • round-to-rectangular-adapter-d_model3347-nb0_dd{id}.stl : 4 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 50 mm (≃1.97 in)
#2 cylinder inlet length 50 mm (≃1.97 in)
#3 rectangle internal length 152 mm (≃5.98 in)
#4 rectangle internal height 45 mm (≃1.77 in)
#5 rectangle inlet length 40 mm (≃1 9/16 in)
#6 offset Z 0 mm (0 in)
#7 offset Y 0 mm (0 in)
#8 total length 110.3 mm (≃4.34 in)
#9 thickness 3 mm (≃1/8 in)
#10 chamfer chamfer on the outside
of the cylindrical tube
Metadata Value
Cylinder internal diameter 44 mm (≃1.73 in)
illustration of the parameters
Parameter overview

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
