Round air vent STL 3D file ∅ 71 mm, slat angle: 10° 📦#2715

STL Download STL
Create a new model:
from scratch search for a model
3D model of a round grille for air circulation in STL format. Its male diameter is 71 mm. The slats have a slight angle of 10° and a low thickness of 1.6 mm. This vent cover features no flange.
Generation date: 2025-10-24
3D Model Round air vent STL 3D file ∅ 71 mm, slat angle: 10°

3D model download

Free
  • round-air-vent-dia71mm-slD10d-_model2715-nb0_dd{id}.stl : 1.6 Mo
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - non commercial use - no derivatives)
Safe download

Values for this model

This model was generated by the Round air vent grill template, with the following values:
Parameter Value
#1 male diameter 71 mm
#2 slat angle 10 °
#3 slat thickness 1.6 mm
#4 flange width 0 mm
#5 central reinforcement no
illustration of the parameters
Representation of the parameters

  • The total thickness of the vent is 25 mm.
  • Whatever the parameters, the slats never overlap. This ensures an optimal airflow. At the same time, the slats form an almost opaque screen along the axis.
  • The slats are actually shaped as parallelograms rather than rectangles. This ensures better printability.
  • The slats and the central reinforcement (if present) feature a 0.40 mm fillet on all edges. This improves airflow and prevents potential whistling.
  • The collar, if present, is 3 mm thick and has a 2 mm fillet for aesthetic purposes.
  • The male insertion area is 3 mm thick and has a 1 mm fillet on both edges to facilitate insertion into the intended slot.
  • The central reinforcement, if present, is 2 mm thick and spans the entire projected width of the slats.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 male diameter dia
#2 slat angle slD
#3 slat thickness slT
#4 flange width flW
#5 central reinforcement renf

Related 3D models

To search for a model based on your own parameters, go to the template page Round air vent grill

Round air vent STL file ∅ 93.6 mm, slat angle: 30° (📦 #1275)

1 object(s) - format STL
Round air vent STL file ∅ 93.6 mm, slat angle: 30°
Model of a round vent cover for air circulation in STL format. Its male diameter is 93.6 mm. The slats have a slight angle of 30° and a low thickness of 1.6 mm. This 3D ventilation grille features a thin flange of 5 mm. The overall diameter of the model is 103.6 mm.
Parameter Value Unit
male diameter 93.6 mm
slat angle 30 °
slat thickness 1.6 mm
flange width 5 mm
central reinforcement no

Round air vent STL 3D file ∅ 96 mm, slat angle: 10° (📦 #1268)

1 object(s) - format STL
Round air vent STL 3D file ∅ 96 mm, slat angle: 10°
3D design of a round air vent for air circulation in STL format. Its insertion diameter measures 96 mm. The slats have a slight angle of 10° and a low thickness of 1.6 mm. This ventilation grille has a collar of 10 mm. The total diameter of this model is 116 mm.
Parameter Value Unit
male diameter 96 mm
slat angle 10 °
slat thickness 1.6 mm
flange width 10 mm
central reinforcement no

Round air vent STL file ∅ 100 mm, slat angle: 30° (📦 #1774)

1 object(s) - format STL
Round air vent STL file ∅ 100 mm, slat angle: 30°
Design of a round vent cover for air circulation in STL format. Its insertion diameter measures 100 mm. The slats have a slight angle of 30° and a low thickness of 1.6 mm. This vent cover features a thin flange of 5 mm. The overall diameter of this model is 110 mm.
Parameter Value Unit
male diameter 100 mm
slat angle 30 °
slat thickness 1.6 mm
flange width 5 mm
central reinforcement no

Round air vent STL 3D file ∅ 93.7 mm, slat angle: 30° (📦 #1331)

1 object(s) - format STL
Round air vent STL 3D file ∅ 93.7 mm, slat angle: 30°
Model of a round grille for air circulation in STL format. Its male diameter measures 93.7 mm. The slats have a slight angle of 30° and a high thickness of 1.8 mm. This 3D vent cover has a thin flange of 5 mm. The total diameter of the model is 103.7 mm.
Parameter Value Unit
male diameter 93.7 mm
slat angle 30 °
slat thickness 1.8 mm
flange width 5 mm
central reinforcement no

Round air vent STL file ∅ 90 mm, slat angle: 35° (📦 #1291)

1 object(s) - format STL (5.0/5) 1 vote(s)
Round air vent STL file ∅ 90 mm, slat angle: 35°
3D file of a round air vent for air circulation in STL format. Its male diameter measures 90 mm. The slats have an angle of 35° and a low thickness of 1.6 mm. This ventilation grille features no flange.
Parameter Value Unit
male diameter 90 mm
slat angle 35 °
slat thickness 1.6 mm
flange width 0 mm
central reinforcement no

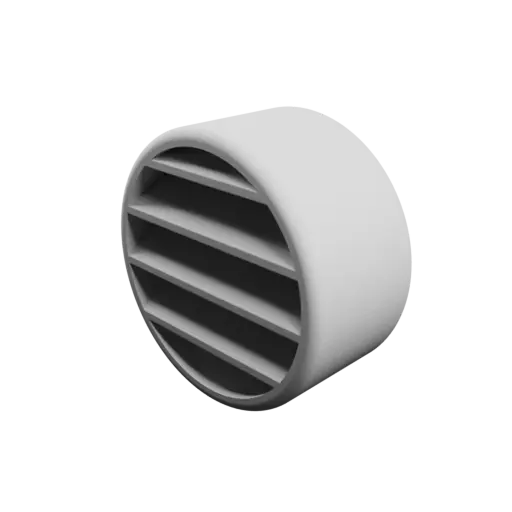

Round air vent STL 3D file ∅ 50 mm, slat angle: 35° (📦 #2735)
