Custom Tubing elbow STL 3D file 45° ⌀OD: 29 mm ⌀ID: 25 mm thickness: 2 mm 📦#2689

STL Download STL 3
Create a new model easy
from scratch search for a model

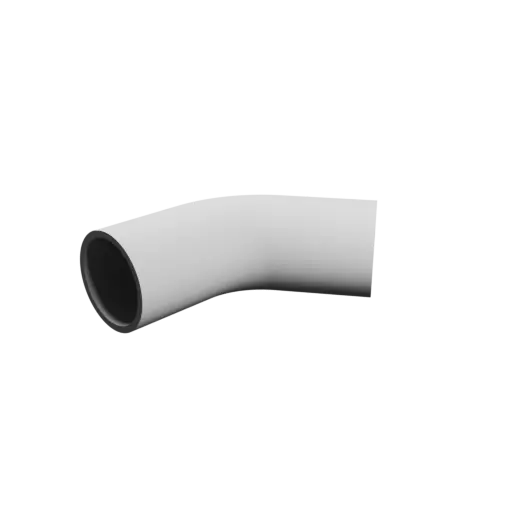

3D file of a pipe elbow with a 45° angle in STL format. This elbow features an outer diameter of 29 mm and an inner diameter of 25 mm. This results in a tube thickness of 2 mm.
Generation date: 2025-10-23
3D Model Tubing elbow STL 3D file 45° ⌀OD: 29 mm ⌀ID: 25 mm thickness: 2 mm

3D model download

Free
  • pipe-elbow-ouD29mm-inD25mm-deg_model2689-nb0_dd{id}.stl : 467.7 Ko
STL Mesh quality : Linear deflection 0.001 Angular deflection 0.1
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download
Instant .zip download — no email, no account

Values for this model

This model was generated by the Pipe elbow template, with the following values:
Parameter Value
#1 outer diameter 29 mm (≃1.14 in)
#2 inner diameter 25 mm (≃0.98 in)
#3 angle 45 °
#4 end fillets no
Metadata Value
Tube wall thickness 2 mm (≃0.08 in)
illustration of the parameters
Parameter overview

  • The length of the straight sections is equal to the outer diameter of the tube.
  • The arc radius is equal to the outer diameter of the tube.
  • If the end fillet option is enabled, the fillet radius applied to the inside and outside of the tube is equal to half the wall thickness minus 0.1 mm, never exceeding 3 mm.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 outer diameter ouD
#2 inner diameter inD
#3 angle deg
#4 end fillets fil
