Washer / Flat Gasket STL file ⌀ID: 110 mm ⌀OD: 120 mm thickness: 2 mm 📦#2357
Generation date: 2025-10-10
3D model download
Free- washer-flat-gasket-ring-inD110_model2357-nb0_dd{id}.stl : 98.5 Ko
STL
Mesh quality :
0.0005
0.05
No compliance warranty
License: CC0 - Creative commons
(no copyright - public domain)
Safe download
Values for this model
This model was generated by the Washer, Flat gasket, Ring template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | inner diameter | 110 mm |
| #2 | outer diameter | 120 mm |
| #3 | thickness | 2 mm |
| #4 | finish | none |
| #5 | finish position | - |
| #6 | sides | - |
| #7 | finish value | - |
Representation of the parameters
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 inner diameter | inD |
| #2 outer diameter | ouD |
| #3 thickness | thi |
| #4 finish | edgF |
| #5 finish position | edgP |
| #6 sides | sidC |
| #7 finish value | finV |
Related 3D models
To search for a model based on your own parameters, go to the template page Washer, Flat gasket, Ring

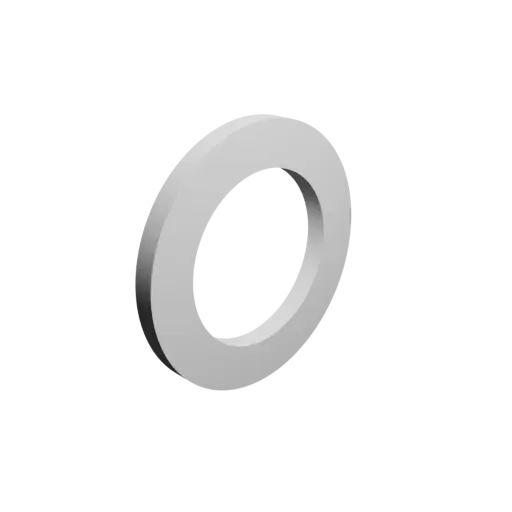

Washer / Flat Gasket STL file ⌀ID: 57 mm ⌀OD: 71 mm thickness: 5 mm (📦 #1816)
1 object(s) - format STL
Download this file of gasket / washer in STL 3D file format. This model has an inner diameter of ⌀57 mm and an outer diameter of ⌀71 mm. The total thickness is 5 mm. No finish is present.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 57 | mm |
| outer diameter | 71 | mm |
| thickness | 5 | mm |
| finish | none |

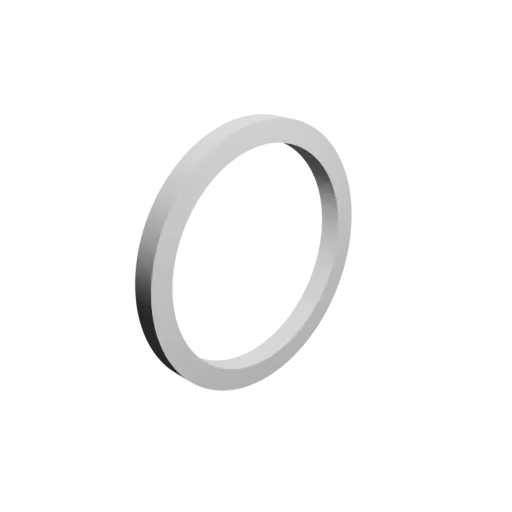

Washer / Flat Gasket STL 3D file ⌀ID: 89 mm ⌀OD: 118 mm thickness: 3 mm + chamfer (📦 #1855)
