Custom Washer / Flat Gasket STL 3D file ⌀ID: 90 mm ⌀OD: 120 mm thickness: 15 mm 📦#2355
Generation date: 2025-10-10
3D model download
Free- washer-flat-gasket-ring-inD90m_model2355-nb0_dd{id}.stl : 98.5 Ko
STL
Mesh quality :
0.0005
0.05
No compliance warranty
License: CC0 - Creative commons
(no copyright - public domain)
Safe download
Values for this model
This model was generated by the Washer, Flat gasket, Ring template, with the following values:
| Parameter | Value | |
|---|---|---|
| #1 | inner diameter | 90 mm (≃3.54 in) |
| #2 | outer diameter | 120 mm (≃4.72 in) |
| #3 | thickness | 15 mm (≃0.59 in) |
| #4 | finish | none |
| #5 | finish position | - |
| #6 | sides | - |
| #7 | finish value | - |
Parameter overview
Labels are used in the naming of the downloaded 3D files.
| Parameter | Label |
|---|---|
| #1 inner diameter | inD |
| #2 outer diameter | ouD |
| #3 thickness | thi |
| #4 finish | edgF |
| #5 finish position | edgP |
| #6 sides | sidC |
| #7 finish value | finV |
Related 3D models
To search for a model based on your own parameters, go to the template page Washer, Flat gasket, Ring
Washer / Flat Gasket STL file ⌀ID: 70.9 mm ⌀OD: 80.2 mm thickness: 15 mm (📦 #3719)
1 object(s) - format STL
File of gasket / washer in STL file format. This part features an internal diameter of ⌀70.9 mm and an external diameter of ⌀80.2 mm. The total thickness is 15 mm. There is no finish applied.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 70.9 | mm |
| outer diameter | 80.2 | mm |
| thickness | 15 | mm |
| finish | none |
Washer / Flat Gasket STL file ⌀ID: 50.8 mm ⌀OD: 127 mm thickness: 13 mm (📦 #7689)
1 object(s) - format STL
Download this file of washer / gasket in STL file format. This model features an internal diameter of ⌀50.8 mm and an external diameter of ⌀127 mm. The total thickness is 13 mm. This part has no finish available.
| Parameter | Value | Unit |
|---|---|---|
| inner diameter | 50.8 | mm |
| outer diameter | 127 | mm |
| thickness | 13 | mm |
| finish | none |

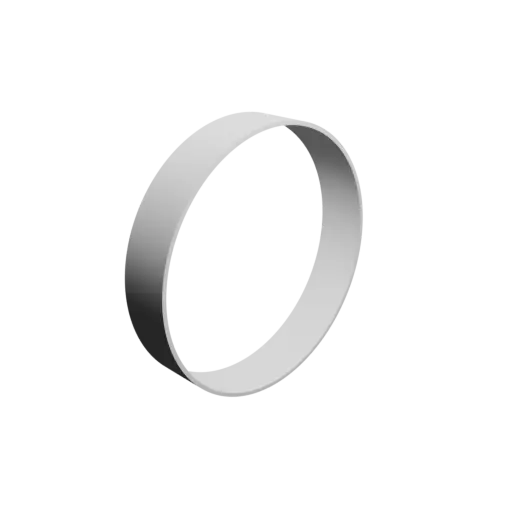

Washer / Flat Gasket STL file ⌀ID: 100 mm ⌀OD: 103 mm thickness: 20 mm (📦 #4233)
