Round-to-Rectangular Tube Adapter STL file ⌀124 mm to 180×180 mm, thickness 2 mm + offset 📦#2164

STL Download STL
Create a new model:
from scratch search for a model

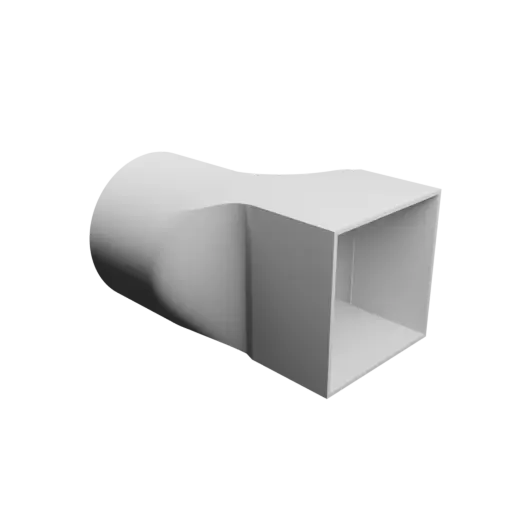

Download this 3D model in STL format of a round-to-rectangular adapter with an outer diameter of ⌀124 mm and a rectangular section with inner dimensions 180×180 mm. The wall thickness is 2 mm and the total length is 100 mm. The adapter has an offset of 20 mm along the Y axis and 20 mm along the Z axis.
Generation date: 2025-10-02
3D Model Round-to-Rectangular Tube Adapter STL file ⌀124 mm to 180×180 mm, thickness 2 mm + offset

3D model download

Free
  • round-to-rectangular-adapter-d_model2164-nb0_dd{id}.stl : 3.5 Mo
STL Mesh quality : Linear deflection 0.0005 Angular deflection 0.05
No compliance warranty No compliance warranty
(Internal and private use, non-commercial – no distribution – no derivatives)
Safe download

Values for this model

This model was generated by the Round to rectangular adapter template, with the following values:
Parameter Value
#1 cylinder outer diameter 124 mm
#2 cylinder inlet length 40 mm
#3 rectangle internal length 180 mm
#4 rectangle internal height 180 mm
#5 rectangle inlet length 20 mm
#6 offset Z 20 mm
#7 offset Y 20 mm
#8 total length 100 mm
#9 thickness 2 mm
#10 chamfer no chamfer
illustration of the parameters
Representation of the parameters

  • If the chamfer option on the ends is enabled, the chamfer length is equal to half the thickness.
  • The stop at the bottom of the rectangular section has a width equal to half the thickness.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 cylinder outer diameter diaC
#2 cylinder inlet length lentC
#3 rectangle internal length lenIR
#4 rectangle internal height heiIR
#5 rectangle inlet length lentR
#6 offset Z ofsZ
#7 offset Y ofsY
#8 total length lenT
#9 thickness thi
#10 chamfer cha
