Enclosure with screw-mounted lid STL file: 100×80×60 mm (with ventilation on the lid and under the enclosure) 📦#1460

STL Download STL
Create a new model:
from scratch search for a model
Download this enclosure with lid in 3D STL format. The dimensions are 100 mm long by 80 mm wide and 60 mm high. The lid only measures 10 mm high. Wall thickness is 4 mm. This enclosure has cooling area on the lid and under the base.
Generation date: 2025-08-28
thumb object 0
object #0

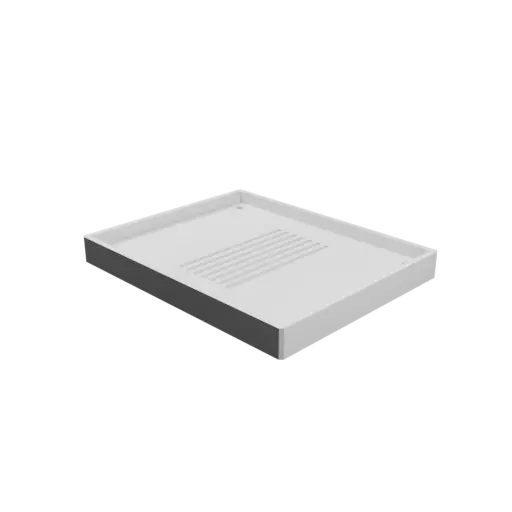

thumb object 1
object #1
3D Model Enclosure with screw-mounted lid STL file: 100×80×60 mm (with ventilation on the lid and under the enclosure)

3D model download

Free
  • object #0 enclosure-with-screw-mounted-l_model1460-nb0_dd{id}.stl : 458.3 Ko
  • object #1 enclosure-with-screw-mounted-l_model1460-nb1_dd{id}.stl : 381.7 Ko
STL Mesh quality : Linear deflection 0.1 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - commercial use allowed)
Safe download

Values for this model

This model was generated by the Enclosure with screw-mounted lid template, with the following values:
Parameter Value
#1 length 100 mm
#2 width 80 mm
#3 total height 60 mm
#4 lid height 10 mm
#5 wall thickness 4 mm
#6 screw margin 0.2 mm
#7 fit clearance 0.2 mm
#8 cooling level 3
#9 cooling zone(s) cutouts on both
illustration of the parameters
Representation of the parameters

  • The thickness of the upper lid shell is always 5 mm.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 length len
#2 width wid
#3 total height Thei
#4 lid height Lhei
#5 wall thickness waT
#6 screw margin Tmrg
#7 fit clearance Imrg
#8 cooling level cooL
#9 cooling zone(s) cooZ
