Round air vent ∅ 71.2 mm, slat angle: 45° with central reinforcement 📦#1396

3D model of a round air vent for air circulation in STL format. Its male diameter is 71.2 mm. The slats have an angle of 45° and a low thickness of 1.6 mm. A centered vertical reinforcement secures the slats. This 3D ventilation grille features a thin flange of 5 mm.

Generation date: 2025-08-21

3D Model Round air vent ∅ 71.2 mm, slat angle: 45° with central reinforcement

3D model download

Free

Download format: zip : 2.9 Mo (1 file(s))

round-air-vent-dia71.2mm-slD45_model1396-nb0_dd{id}.stl : 2.9 Mo

STL Mesh quality : 0.1 0.1

License: CC BY-NC-ND - Creative commons

(attribution - non commercial use - no derivatives)

Values for this model

This model was generated by the Round air vent grill template, with the following values:

	Template parameter	Value	Unit	Label
#1	male diameter	71.2	mm	dia
#2	slat angle	45	°	slD
#3	slat thickness	1.6	mm	slT
#4	flange width	5	mm	flW
#5	central reinforcement	1	0,1	renf

Representation of the parameters

Related 3D models

To search for a model based on your own parameters, go to the template page Round air vent grill

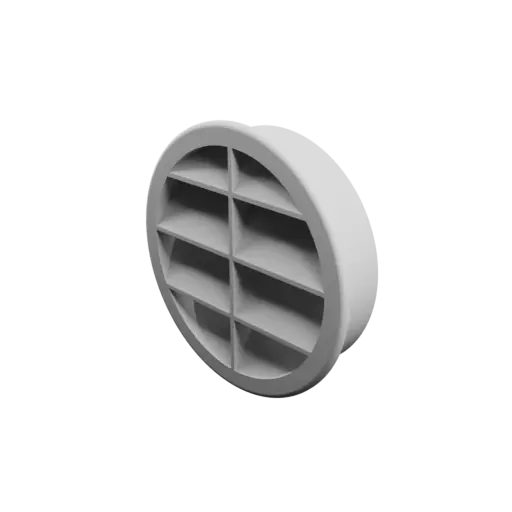

Round air vent ∅ 70 mm, slat angle: 45° with central reinforcement (📦 #1282)

1 object(s) - format STL

3D model Round air vent ∅ 70 mm, slat angle: 45° with central reinforcement

3D file of a round air vent for ventilation in STL format. Its insertion diameter is 70 mm. The slats have an angle of 45° and a low thickness of 1.6 mm. A centered vertical reinforcement reinforces the slats. This 3D vent grille features a thin flange of 5 mm.

Parameter	Value	Unit
male diameter	70	mm
slat angle	45	°
slat thickness	1.6	mm
flange width	5	mm
central reinforcement	1	0,1

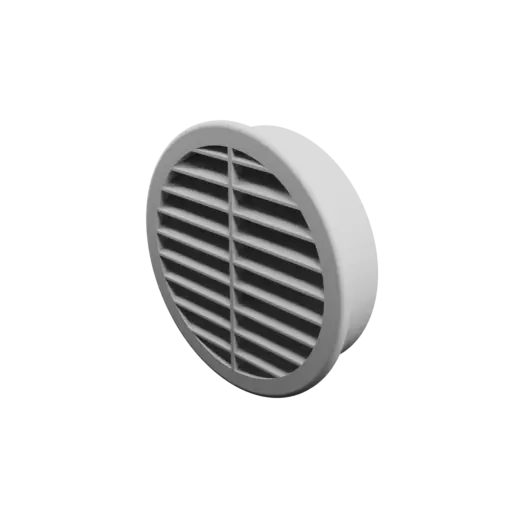

Round air vent ∅ 120 mm, slat angle: 45° with central reinforcement (📦 #1333)
