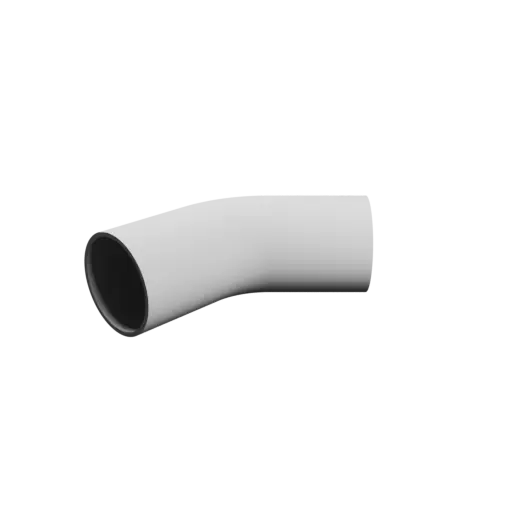

Pipe elbow STL 3D file 45° ⌀OD: 90 mm ⌀ID: 82 mm thickness: 4 mm 📦#1370

STL Download STL
Create a new model:
from scratch search for a model
3D model of an elbow with a 45° angle in STL format. This elbow has an outer diameter of 90 mm and an inner diameter of 82 mm. The tube thickness is therefore 4 mm.
Generation date: 2025-08-18
3D Model Pipe elbow STL 3D file 45° ⌀OD: 90 mm ⌀ID: 82 mm thickness: 4 mm

3D model download

Free
  • pipe-elbow-ouD90mm-inD82mm-deg_model1370-nb0_dd{id}.stl : 467.7 Ko
STL Mesh quality : Linear deflection 0.001 Angular deflection 0.1
No compliance warranty No compliance warranty
(attribution - non commercial use - no derivatives)
Safe download

Photos of the model once printed

Pipe elbow STL 3D file 45° ⌀OD: 90 mm ⌀ID: 82 mm thickness: 4 mm

Values for this model

This model was generated by the Pipe elbow template, with the following values:
Parameter Value
#1 outer diameter 90 mm
#2 inner diameter 82 mm
#3 angle 45 °
#4 end fillets no
illustration of the parameters
Representation of the parameters

  • The length of the straight sections is equal to the outer diameter of the tube.
  • The arc radius is equal to the outer diameter of the tube.
  • If the end fillet option is enabled, the fillet radius applied to the inside and outside of the tube is equal to half the wall thickness minus 0.1 mm, never exceeding 3 mm.

Labels are used in the naming of the downloaded 3D files.

Parameter Label
#1 outer diameter ouD
#2 inner diameter inD
#3 angle deg
#4 end fillets fil
