Enclosure with screw-mounted lid: 160×70×50 mm 📦#1313
Generation date: 2025-08-02

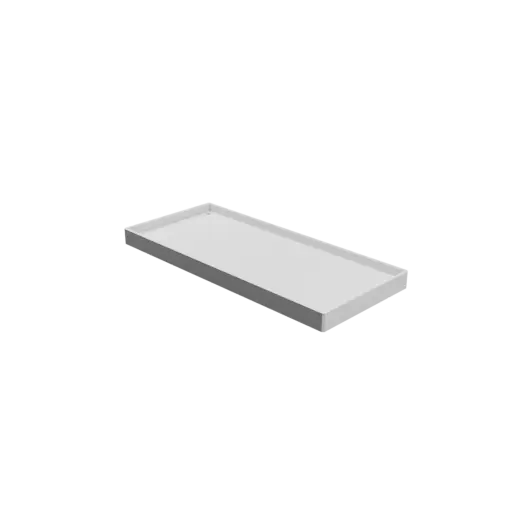

object #0
object #1
3D model download
Free- enclosure-with-screw-mounted-l_model1313-nb0_dd{id}.stl : 276.4 Ko
- enclosure-with-screw-mounted-l_model1313-nb1_dd{id}.stl : 199.9 Ko
STL
Mesh quality :
not defined
License: CC BY - Creative commons
(attribution - commercial use allowed)
Values for this model
This model was generated by the Enclosure with screw mounted lid template, with the following values:
| Template parameter | Value | Unit | Label | |
|---|---|---|---|---|
| #1 | length | 160 | mm | len |
| #2 | width | 70 | mm | wid |
| #3 | total height | 50 | mm | Thei |
| #4 | lid height | 10 | mm | Lhei |
| #5 | wall thickness | 3 | mm | waT |
| #6 | screw margin | 0 | mm | Tmrg |
| #7 | fit clearance | 0.1 | mm | Imrg |
| #8 | cooling level | 0 | cooL | |
| #9 | cooling zone(s) | 0 | cooZ | |
Representation of the parameters
Note that parameters #1 length and #2 width refer to the external dimensions. If you are working with internal dimensions, you will need to add twice the wall thickness.
Parameter #6 screw margin adjusts the diameter of the cylinder into which the screws thread are inserted in the base. By default, its diameter is 3 mm. Depending on the material used, you will likely need to adjust this value so that the thread cuts into the material properly (not too much, not too little).
Parameter #7 fit clearance defines the gap between the two parts for assembly. At 0, both objects are modeled with no clearance at all. It is often recommended to add 0.1 to 0.2 mm for a smooth fit.
Parameter #8 cooling level determines the strength of the ventilation. At 0, no cutouts are applied. At 10, the maximum possible number of cutouts is generated.
Parameter #9 cooling zone(s) defines the location of the cutouts:
- 0: no cutouts
- 1: cutouts on the lid
- 2: cutouts on the enclosure
- 3: cutouts on both
Related 3D models
